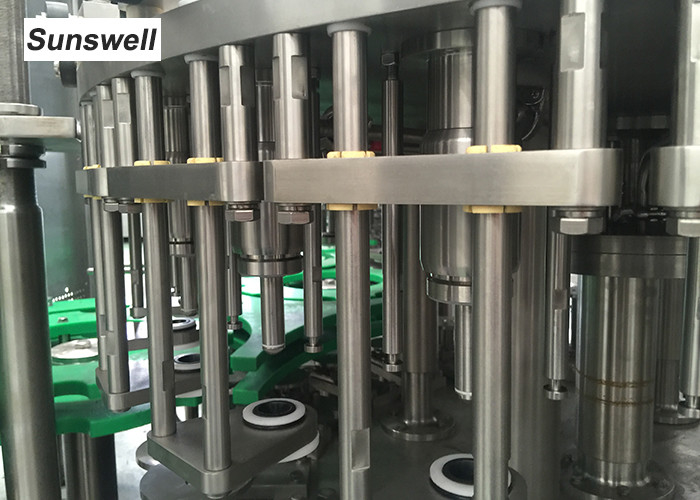

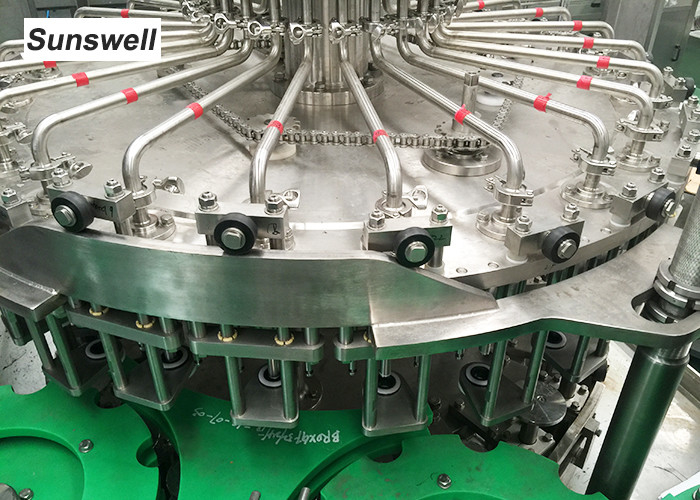

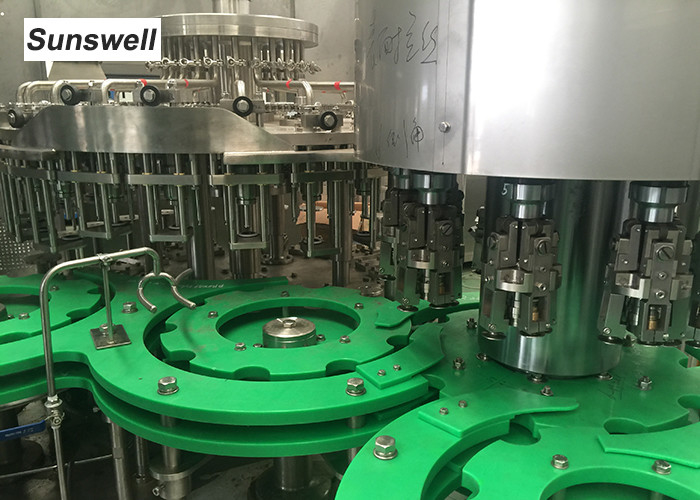

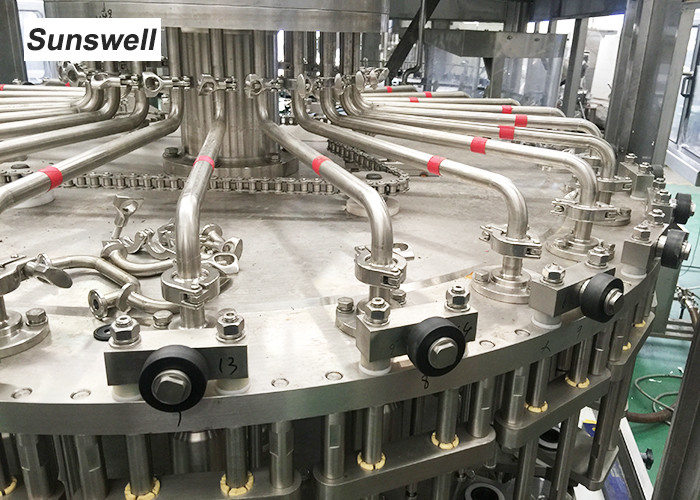

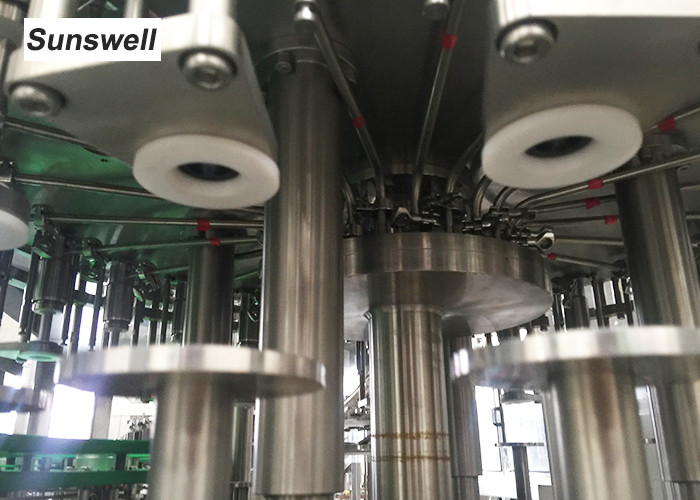

Automatic PET Bottle Fruit Juice Filling Machine Electric Driven Type

Basic Information
Place of Origin: China
Brand Name: PET ALL
Certification: CE&ISO
Model Number: RXGF
Minimum Order Quantity: 1
Packaging Details: Wooden packing
Delivery Time: 7 days
Payment Terms: T/T, LC,WESTERN UNION
Supply Ability: 100 sets per year

New bottled automatic PET bottle beverage fruit juice filling machine



The machine is a full-automatic multiple-function washing, filling and capping unit. It is used in washing. filling and sealing all kinds of non-air drinks such as fruit juice, oil & vinegar,wine,fruit wine, mineral water and pure water. The line has features of unique design,new style, complete functions,multi-purpose, convenient in operation, beautiful construction, high automaticity. It is the best filling equipment in China.



1. Safe and Automatic Running:

The machine adopts bottleneck blocking and filling valve rise-drop design, and it satisfies for 95℃ hereinafter hot filling technology demand. The function of fluent and fast filling action, high filling precision, reliable capping and low materials loss makes it effectively prevent secondary pollution of the neck. It can achieve the replacement of different bottles only by exchanging equivalent parts.It adopts humanized interface touch screen, PLC ,transducer etc. Advanced control technology with high automation in the whole process.The machine’s main electrical parts are from famous international supplier.



2. High Technology:

Advanced filling technology from Germany and Italy is applied on the machine, which assure quick filling and high accuracy of liquid level control.



3. High grade materials:

All parts connected with water are made of food grade stainless steel.

All main components makers are world-known manufacturers.



Technical Parameters:
Number of Filling Valves 12,16,24, 32, 40, 50, 60, 72,
Filling Speed 2, 000-30, 000BPH (500ml)
Type of Bottles PET Bottles of various shapes
Bottle Height 150-320(mm)
Bottle Diameter φ 50-110(mm)
Filling Temperature Hot Filling
Filling Principle Gravity Filling
Filling Product Apple juice, orange juice, flavored milk, tea drinks, energy drinks, vitamin drinks and etc.



Automatic PET Bottle  Fruit Juice Filling Machine Electric Driven Type



Automatic PET Bottle  Fruit Juice Filling Machine Electric Driven Type



Any more questions, please feel free to contact us!
