A - Z Turnkey Project Mineral Water Filling Machine / Packing Line / Water Treatment System

A - Z Turnkey Project Mineral Water Filling Machine / Packing Line / Water Treatment System

    • A - Z Turnkey Project Mineral Water Filling Machine / Packing Line / Water Treatment System
    • A - Z Turnkey Project Mineral Water Filling Machine / Packing Line / Water Treatment System
  • A - Z Turnkey Project Mineral Water Filling Machine / Packing Line / Water Treatment System

    Product Details:

    Place of Origin: Jiangsu, China
    Brand Name: Sunswell
    Certification: CE SGS
    Model Number: XGF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $20,310-189,540/set
    Packaging Details: Wooden case
    Delivery Time: 80 days after receiving down payment
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets/month
    Contact Now
    Detailed Product Description
    Automatic Grade: Automatic Driven Type: Electric
    Condition: New Type: Filling Machine
    Application: Beverage After-sales Service Provided: Engineers Available To Service Machinery Overseas
    Packaging Material: Wood Voltage: Can Be Designed
    Packaging Type: Bottles Warranty: 1 Year
    Name: CE SGS ISO Mineral Water Filling Machine Pure Water Bottling Machine Material: SUS304/316
    Product Name: Mineral Water Filling Machine,Complete Production Line For Bottled Mineral Water Filling Material: Mineral Water,pure Water,Pure/Mineral Water
    Processing: Filling Machine,Washing,capping Capacity: 5,000BPH-36,000BPH (500ml)

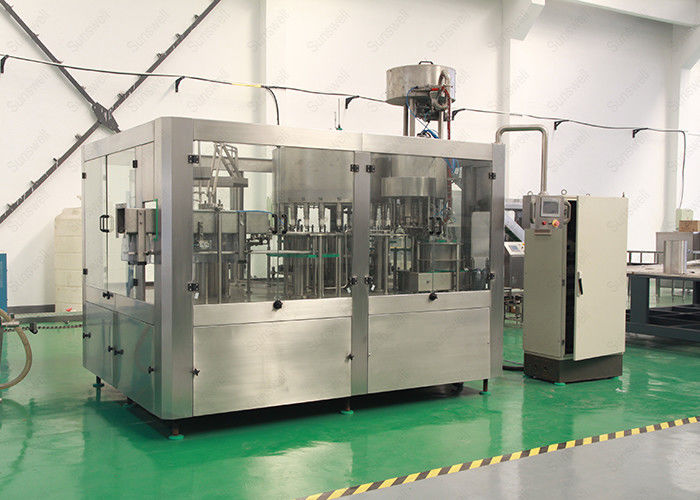

    A - Z Turnkey Project Mineral Water Filling Machine / Packing Line / Water Treatment System



    Application: still water, pure water, RO water, mineral water, sparkling water, alcoholic drinks, wine, etc.



    Suitable for: PET bottles



    Filling system: gravity filling



    Production capacity: 5,000BPH-36,000BPH (500ml)



    Product Application:


    1.The Sunswell water production line use direct connection technology between air conveyor and in-feeding star-wheel to substitute in-feeding screw and conveyor to ease the process of bottle-size-changing.

    2. Neck-hanging technology is applied in bottle transportation of the automatic water filling machine. Instead of traditional star-wheel, we use neck-hanging gripper to make bottle-size-changing easily , without equipment height adjustment ,only arch board and star-wheel such little nylon parts need to be changed.

    3. Specially-designed rinsing grippers which are made of stainless steel are firm and endurable, with no contact to screw part of the bottle to prevent second pollution in this automatic water filling machine.

    4. Rapid gravity filling valve with high flow makes filling faster with accurate liquid level and without any liquid loss.

    5. Splint of star-wheel using twist descending way to simplify the process of bottle-size-changing.



    A - Z Turnkey Project Mineral Water Filling Machine / Packing Line / Water Treatment System



    Equipment structure of water filling machine:

    1. Rack

    2. Rotary filler

    3. Bottle infeed and outfeed system

    4. Rotary rinser

    5. Rotary capper

    6. Control





    Technical features of water filling machine:

    1. It is adopts that direct connection between air conveyor and inlet starwheel instead of screw and conveyor chains, which is easier for bottle changing.

    2. There is no need to adjust the height of equipments through neck holding tech for bottle transporation. And what is only to change some spare parts.

    3. High speed filling line is of clamp transferring technology. Bottle shapes are more varied, and the working table inside the machine is more laconic.

    4. By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier.

    5. Specially designed stainless steel bottle clamp does not contact the thread parts of the bottle neck, avoiding the second contamination.

    6. High speed and large flow filling valve assures the high filling speed and exact fluid level.

    7. Spares contact with the liquid are all of excellent stainless steel or food level plastic. The electric system is of international brand and achieves the national food sanitary standard.

    8. The bottle-out starwheel is of screwdown shape. When bottle size is changed, there is no need to adjust the transferring chain's height.





    Model&capacity:

    Model

    XGF14-

    12-5

    XGF16

    -16-5

    XGF24

    -24-6

    XGF32

    -32-8

    XGF40

    -40-10

    XGF50

    -50-12

    XGF60

    -60-15

    XGF72

    -50-18

    XGF80-60-20

    Capacity

    [BPH/500ml]

    5,000BPH 7,000BPH 10,000BPH 15,000BPH

    18,000

    BPH

    21,000

    BPH

    24,000

    BPH

    30,000

    BPH

    36,000BPH
