Plastic Bottle Drinking Water Filling Equipment , Water Bottle Packing Machine

Plastic Bottle Drinking Water Filling Equipment , Water Bottle Packing Machine

    • Plastic Bottle Drinking Water Filling Equipment , Water Bottle Packing Machine
    • Plastic Bottle Drinking Water Filling Equipment , Water Bottle Packing Machine
  • Plastic Bottle Drinking Water Filling Equipment , Water Bottle Packing Machine

    Product Details:

    Place of Origin: Jiangsu, China
    Brand Name: Sunswell
    Certification: CE SGS
    Model Number: XGF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $20,310-189,540/set
    Packaging Details: Wooden case
    Delivery Time: 80 days after receiving down payment
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets/month
    Contact Now
    Detailed Product Description
    Automatic Grade: Automatic Driven Type: Electric
    Condition: New Type: Filling Machine
    Application: Beverage;water After-sales Service Provided: Engineers Available To Service Machinery Overseas
    Packaging Material: Wood Voltage: Can Be Designed
    Packaging Type: Bottles Warranty: 1 Year
    Name: CE SGS ISO Mineral Water Filling Machine Pure Water Bottling Machine Material: SUS304/316
    Product Name: Mineral Water Filling Machine,Complete Production Line For Bottled Mineral Water Filling Material: Mineral Water,pure Water,Pure/Mineral Water
    Processing: Filling Machine,Washing,capping Capacity: 5,000BPH-36,000BPH (500ml)



    sunswell 3-in-1 PET Plastic Bottle drinking water filling machine mineral water bottling equipment line





    Application: still water, pure water, RO water, mineral water, sparkling water, alcoholic drinks, wine, etc.



    Suitable for: PET bottles



    Filling system: gravity filling



    Production capacity: 5,000BPH-36,000BPH (500ml)



    Product Application:

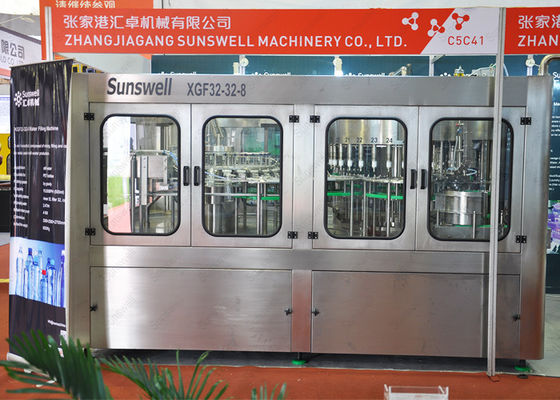

    Sunswell washing filling capping 3 in 1 monoblock is a unique design combining the three parts of bottle washing, filling and capping in one. Washing filling capping 3 in 1 can decrease main power, save space and diminish the air pollution among three machines. The machine is easy to change the shape of bottles, which can be done by changing the thumb wheel without adjusting the height of the machine.The filling water machine case and the parts contacting with the materials are made of stainless steel which ensures the good external look and easy washing.Each water bottle washing filling capping 3 in 1 machine element that contacts with the liquid is made of high quality Stainless steel 304, if needed,Stainless steel 316 is also available.The water bottle washing filling capping 3 in 1 machine adopts bottle neck holding transmission technology to realize fully automatic rinsing, filling and capping. Most elements of the electrical system use famous international brand, for example,Mitsubish, Omron brand .The water bottle washing filling capping 3 in 1 machine obtain the advantages of good abrasive resistance,high stability,low failure rate, etc. The quality of the equipment reaches the advanced level of the world.8. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.Easy to operate, save the cost for workers.



    Plastic Bottle Drinking Water Filling Equipment , Water Bottle Packing Machine



    Plastic Bottle Drinking Water Filling Equipment , Water Bottle Packing Machine



    Plastic Bottle Drinking Water Filling Equipment , Water Bottle Packing Machine



    Equipment structure of water filling machine:

    1. Rack

    2. Rotary filler

    3. Bottle infeed and outfeed system

    4. Rotary rinser

    5. Rotary capper

    6. Control





    Technical features of water filling machine:

    1. It is adopts that direct connection between air conveyor and inlet starwheel instead of screw and conveyor chains, which is easier for bottle changing.

    2. There is no need to adjust the height of equipments through neck holding tech for bottle transporation. And what is only to change some spare parts.

    3. High speed filling line is of clamp transferring technology. Bottle shapes are more varied, and the working table inside the machine is more laconic.

    4. By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier.

    5. Specially designed stainless steel bottle clamp does not contact the thread parts of the bottle neck, avoiding the second contamination.

    6. High speed and large flow filling valve assures the high filling speed and exact fluid level.

    7. Spares contact with the liquid are all of excellent stainless steel or food level plastic. The electric system is of international brand and achieves the national food sanitary standard.

    8. The bottle-out starwheel is of screwdown shape. When bottle size is changed, there is no need to adjust the transferring chain's height.





    Model&capacity:

    Model

    XGF14-

    12-5

    XGF16

    -16-5

    XGF24

    -24-6

    XGF32

    -32-8

    XGF40

    -40-10

    XGF50

    -50-12

    XGF60

    -60-15

    XGF72

    -50-18

    XGF80-60-20

    Capacity

    [BPH/500ml]

    5,000BPH 7,000BPH 10,000BPH 15,000BPH

    18,000

    BPH

    21,000

    BPH

    24,000

    BPH

    30,000

    BPH

    36,000BPH
