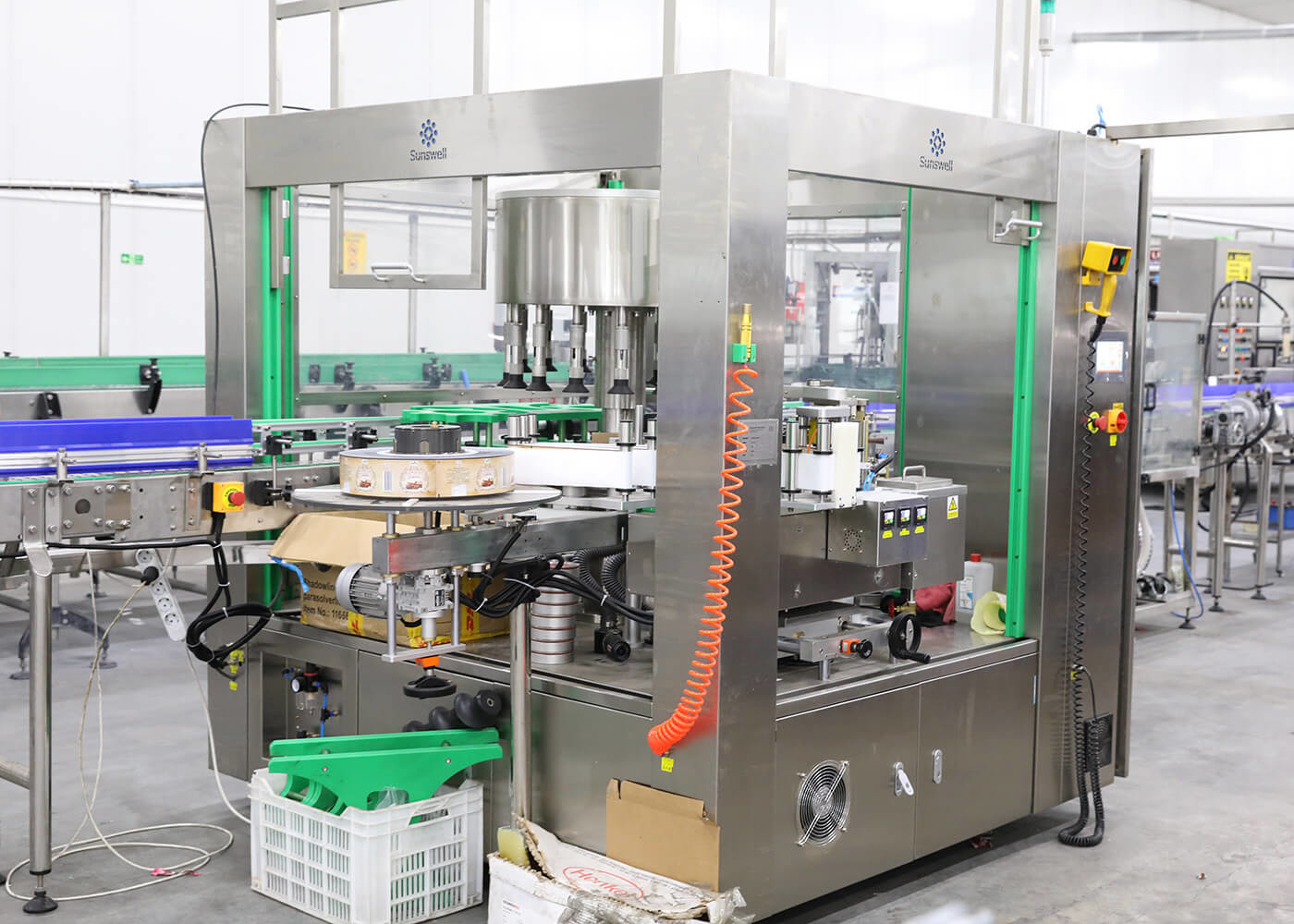

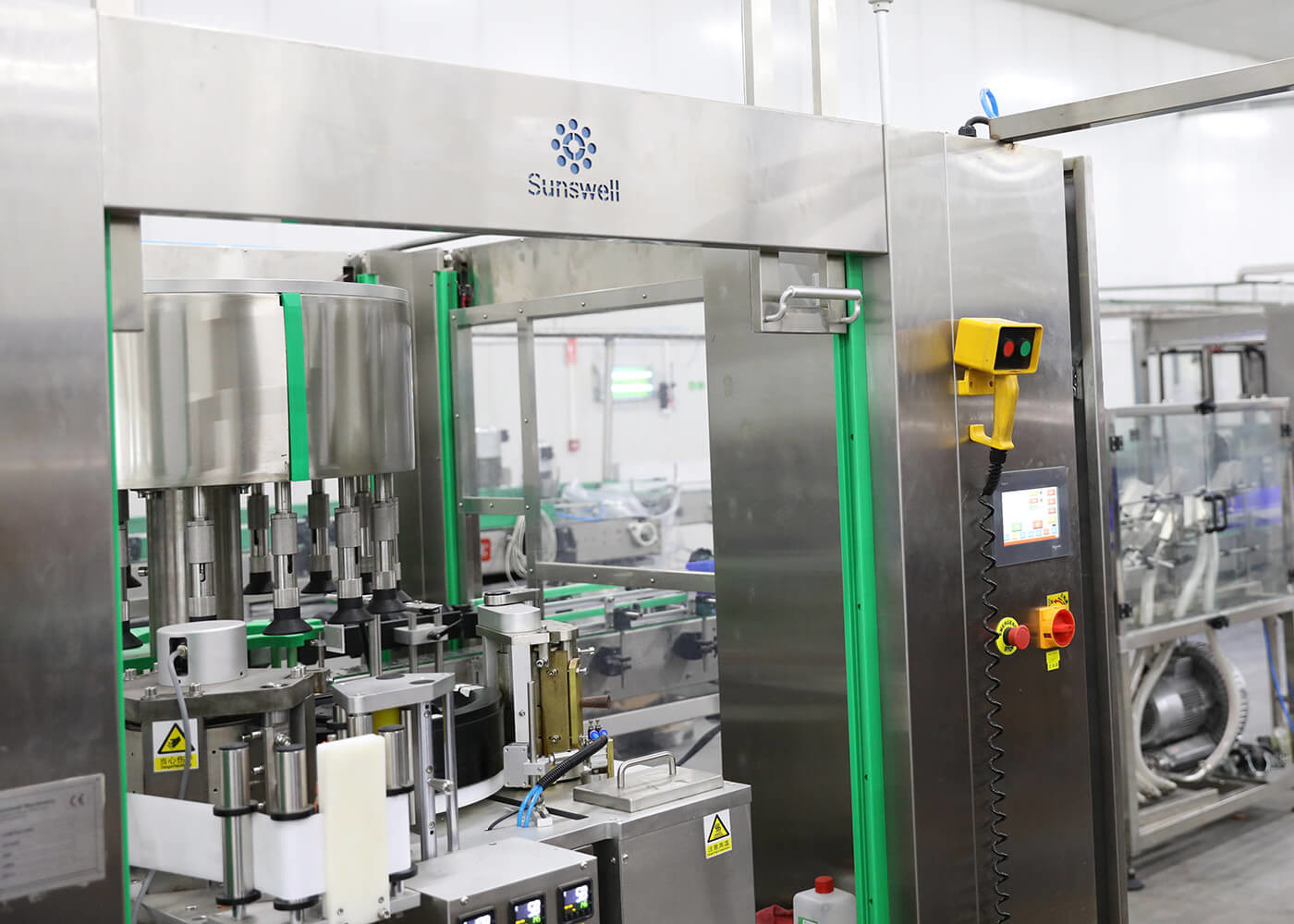

Roll Fed Hot Melt Glue OPP BOPP Labeling Machine For Water Bottle Carbonated Drink Bottle

Roll Fed Hot Melt Glue OPP BOPP Labeling Machine For Water Bottle Carbonated Drink Bottle

    • Roll Fed Hot Melt Glue OPP BOPP Labeling Machine For Water Bottle Carbonated Drink Bottle
    • Roll Fed Hot Melt Glue OPP BOPP Labeling Machine For Water Bottle Carbonated Drink Bottle
    • Roll Fed Hot Melt Glue OPP BOPP Labeling Machine For Water Bottle Carbonated Drink Bottle
    • Roll Fed Hot Melt Glue OPP BOPP Labeling Machine For Water Bottle Carbonated Drink Bottle
  • Roll Fed Hot Melt Glue OPP BOPP Labeling Machine For Water Bottle Carbonated Drink Bottle

    Product Details:

    Place of Origin: Jiangsu, China
    Brand Name: Sunswell
    Certification: CE SGS
    Model Number: TB

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wooden case
    Delivery Time: 60 days after receiving down payment
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets/month
    Contact Now
    Detailed Product Description
    Product Name: Hot Melt Glue Labeling Machine Automatic Grade: Full Automatic
    Condition: New Driven Type: Electric
    Type: Labeling Machine Packaging Type: Plastic
    Application: Food,Beverage After-sales Service Provided: Online Support,Engineers Available To Service Machinery Overseas
    Packaging Material: Wooden Case Certification: CE, SGS
    Warranty: 1 Year Function: Labeling

    Automatic Water Bottle Carbonated Drink Bottle Roll-Fed Hot Melt Glue OPP BOPP Labeling Machine



    1.1). Trademark cutting blade adjustment easier
    1.2). Vacuum standard wheel is made by high hardness material; Adding fold process can reduce friction of labels and prevent static electricity
    1.3). Compatible replacement parts can be done quickly and efficiently within 10 minutes
    1.4) Adjusting the blade position precisely and easily with manually operation.
    1.5). The lower parts of Vacuum standard wheel and label cutting are made of special anti-fever material.
    1.6). When trademark length changes, the automatic adjustment knob will automatically regulate the position of I-MARK.


    2. The usage of label

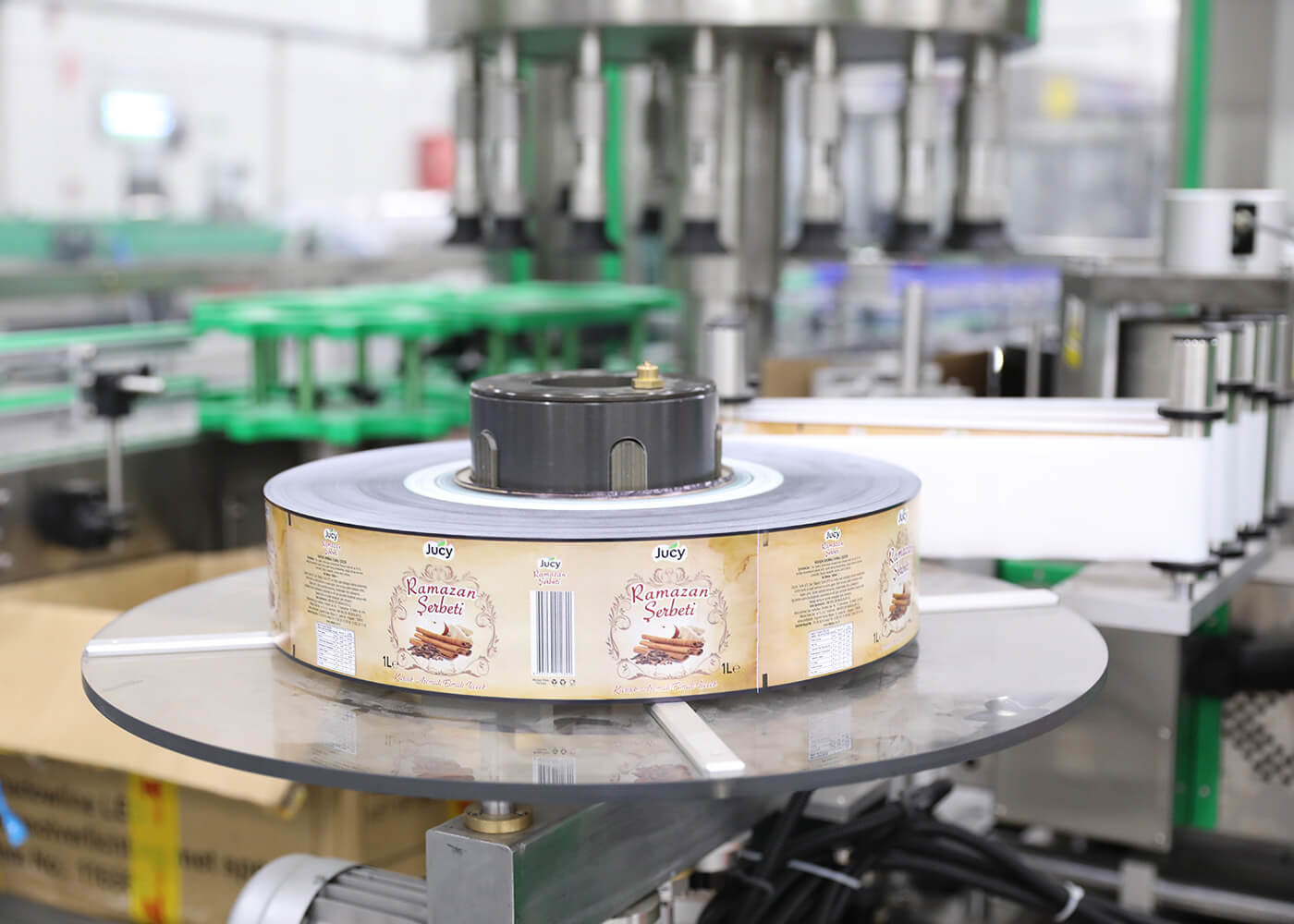

    Label material: OPP (wheeled)
    Label Specifications: Refer to user requirements
    Labeling method: Linear hot melt labeling

    3 Device Description
    3.1) Using wheel labeling methods
    3.2) The label transported from roll label will work via a run for labeling operations along the rail
    3.3) When the label pass the label-supply wheels, the sensor automatically detects the I-MARK
    3.4) Once the electronic eye position is confirmed, the demodulator automatically adjusts the speed of the label-supply wheels, and then specify the correct label cutting position
    3.5) The label will enter into the cutting wheel to cut the standard unit operations via the label-supply wheel, and then fed into the vacuum cup chopped label
    3.6) The containers will be appropriately arranged by the star wheel after the conveyor belt transportation, the adhesive label will be label for the first time in the table area, and then complete the whole label operations relying on the role of timing belt.

    4 Main Components
    4.1) conveyor belt
    4.2) star wheel supply
    4.3) Label station
    4.4) Vacuum chuck
    4.5) Drive unit
    4.6) hot melt glue supply machine
    4.7) rubber wheel
    4.8) synchronous belt
    4.9) label cutting unit
    4.10) Label correction
    4.11) Rack
    4.12) vacuum system and air handling
    4.13) Control System



    Technical parameters:



    Power supply Three-phase 380V 50 Hz 8000W
    The total length of equipment 3000mm(conveyor length 3000mm or can be regulate base on your product lines)
    Equipment width 2000mm
    Conveyor speed 35m/min (the speed of the transmission lines can be adjusted according to actual production)
    The method of speed adjustment uninterrupted - adjust rate
    The largest Speed of labels feed maximum speed of 100 meters labels / min
    The largest speed of labeling 10000 pcs/H
    Labeling accuracy ± 1mm
    Integrated Labeling accuracy ± 1mm
    Product Size: base on client supply container 2L Φ 100mm
    Maximum label width 160mm
    The maximum length of label 500mm
    The maximum diameter of label 500mm
    Paper core diameter 152 mm
    Labeling glue leading and trailing edge gluing with hot melt
    Gluing temperature 120~160C
    Type of label opp label, paper-plastic composite film label, paper label
    Labeling workstation 12 per cycle
    The quantity of labeling mold 1 set
    Machine weight 2000 Kg



    Roll Fed Hot Melt Glue OPP BOPP Labeling Machine For Water Bottle Carbonated Drink Bottle



    Roll Fed Hot Melt Glue OPP BOPP Labeling Machine For Water Bottle Carbonated Drink Bottle
