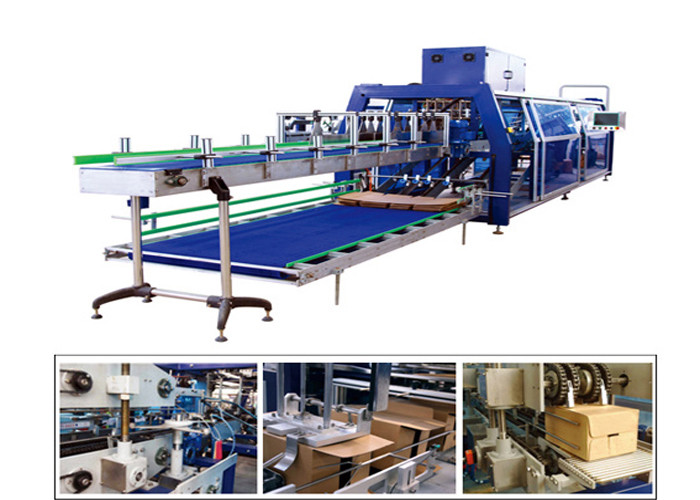

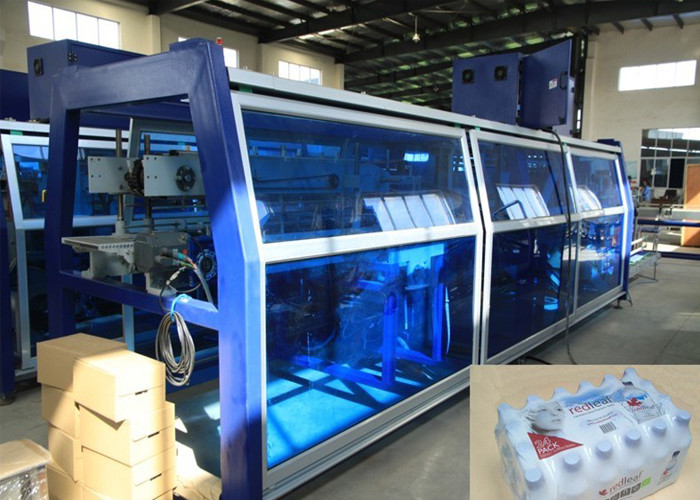

China Manufacturer High Efficient Wrapping Machine For Water Juice Bottle

China Manufacturer High Efficient Wrapping Machine For Water Juice Bottle

    • China Manufacturer High Efficient  Wrapping Machine For Water Juice Bottle
    • China Manufacturer High Efficient  Wrapping Machine For Water Juice Bottle
  • China Manufacturer High Efficient  Wrapping Machine For Water Juice Bottle

    Product Details:

    Place of Origin: China
    Brand Name: Sunswell
    Certification: CE, ISO, SGS
    Model Number: SUNSWELL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Export Standard Seaworthy Wooden Case
    Delivery Time: 30 days
    Payment Terms: T/T, L/C
    Supply Ability: 100 sets per year
    Contact Now
    Detailed Product Description
    Function: PE Film Packaging Machine Packaging Type: Film
    Driven Type: Electric Voltage: Customized
    Application: Food,Beverage,Commodity After-sales Service Provided: Engineers Available To Service Machinery Overseas
    Warranty: 12 Months

    China Manufacturer High Efficient Wrapping Machine For Water Juice Bottle

    Main performance features

    • Compact & artistic shape. The frame is novel, unique.
    • Electronic induction feeding film, action is balanced and quickly replacing film.
    • Isothermal sealing cutter. The seal intensity is above cooling sealing cutter 3 times, the seal is even and the life is above cooling sealing cutter 80 times.
    • Transport system with speed regulation by frequency variation, the transmission action is precise and synchro.
    • The shrinkage chamber uses centrifugal thermal air circulation system, configuration is logical, heat insulation heat preservation, thermostat precision is high and the packing effect is better.
    • Disposition: SIEMENS, OMRON, UNIQUC, etc. advanced control component in the world, Well-equipped.

    Specifications:

    Model

    MB-10

    Packing form

    bottles and cans

    Packing speed

    10 packs/min

    Applicable container shape

    circular container, square container

    Total power charge

    19kw three-phase-five-line 380v/50Hz

    Machine size

    L×W×H=6500×3200×2100mm

    (Include 1meter no-power rear roller frame)

    Operating air pressure

    0.6~0.8Mpa

    Air consumption

    0.4stere/min

    Conveyor belt extreme breadth

    304mm

    Conveyor height

    according to client line

     (adjustable scope 150mm)

    Applications:

    • Shrink film wrapping
    • Soft drink, liquor (beer, rice wine and alcohol, etc.)
    • Liquid food (edible oil, vinegar and soy sauce, etc.)
    • Daily commodities (detergent, shampoo and so on)

    Main parts

    No.

    Name

    Brand

    Region

    Remarks

    1

    Pneumatic Cylinder

    Chanto

    Taiwan



    2

    Pneumatic Components

    Airtac

    Taiwan



    3

    PLC

    Omron

    Japan



    4

    Button

    Tayee

    China



    5

    Inverter

    Schneider

    France



    6

    Relay

    Schneider

    France



    7

    Contactor

    Schneider

    France



    8

    Solid Relay

    Crydom

    France



    9

    Teflon Belt

    Kaiyao

    China

    Imported material

    10

    Reducer

    Halei

    China



    11

    Photoelectric Switch

    Autonics

    Korea



    12

    Proximity Switch

    Autonics

    Korea



    13

    Steel Sheet

    Baosteel

    China

    Cold-rolled (1.5-2.5mm)

    14

    Chain Plate

    Tuoxin

    China

    POM

    China Manufacturer High Efficient  Wrapping Machine For Water Juice BottleChina Manufacturer High Efficient  Wrapping Machine For Water Juice Bottle
