|Place of Origin:||Zhangjiagang,China|
|Certification:||CE, ISO, SGS|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Export Standard Seaworthy Wooden Case|
|Delivery Time:||30 days|
|Payment Terms:||T/T, L/C|
|Supply Ability:||100 sets per year|
|Name:||Pallet Wrapping Equipment Shrink Film Packaging Machine||Usage:||Pack The Product With Shrinking Film|
|Application:||Food,Beverage,Commodity||Function:||PE Film Packaging Machine|
|Warranty:||12 Months||After-sales Service Provided:||Engineers Available To Service Machinery Overseas|

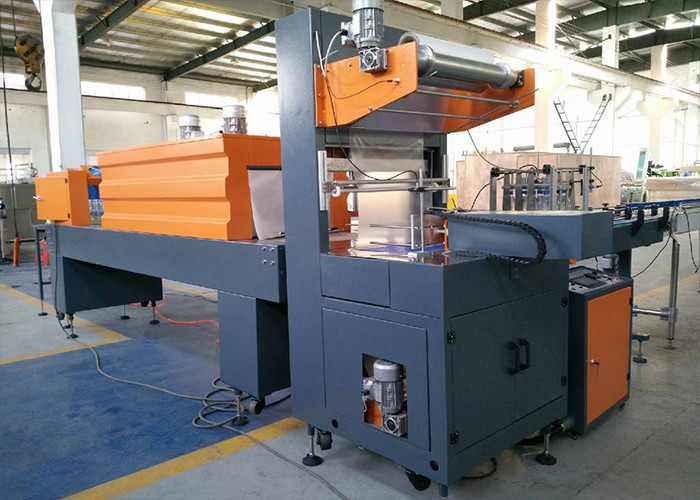

High Speed Automatic Milk Bottle Shrink Wrapping Machines China Supplier
1, Invert speed control
2, PLC programmable procedure control system
Stretch and shrink wrappers, group packaging for PET bottles
Product Description: Product Description
This machine is the latest one of the beverage filling line to pack sleeve bottles together.
Auto PE Film shrink packaging machine
The instruction as follows:
1. Invert speed control.
2. Bottle entering, Auto unscrambling bottle, Pushing bottle, Heat sealing-Saw cutting, Pressing PE, Shrink, Cooling.
3. This machine applies air-stirring mechanism in pushing bottle and hot sealing-cool cutting. It uses flat silk pulse seal, the saw tooth knife cuts, The unique heat seal-cool cut mechanism, has guaranteed the packing agglutination, reliable, and artistic.
4. Automatic unscrambling bottle's appliance makes bottle changing more quickly and conveniently.
5. Delivering film mechanism and the tensity voluntarily adjusts.
6. PLC programmable procedure control system.
7. Double air blowers, guarantees the temperature balance in the shrink stove with PAD temperature controller, that apparently saves energy.
8. It applies wing shape stainless steel heating system, which is durable for long time use.
9. The heatproof Bolivian filament special fluorine dragon transportation net belt is used in shrink part to ensure the steady of transportation and high strengthen wear proof.
10. This machine applies invert speed control net belt conveying mechanism.
11. The height of the conveyer shall be made towards client's demand.
12. The direction of bottle entering can be adjusted according to client's demand
13, according customer request, can make the stainless steel belt inside the shrink tunnel instead of plastic belt
Maximum packing size: L*W*H=450*300*350mm(to be ordered)
Packing speed: 12B/M
Machine Size: L*W*H=4700*4000*1700mm
Power supply: 220V 50HZ
Rated current: 6A
Gas pressure: 0.5-0.7Mpa
Suitable infrared thermo-wind circulation stove:
Transport speed: 0-15m/min
Maximum Tunnel size: 1815*600*400mm
Machine dimension: L*W*H=3100*1600*1500mm
·Outline dimension of the equipment:L5050*W3300*H2100mm
·The largest dimension of the wrappage:L600*W400*H350mm
·Material of shrink film:PE
·Thickness of shrink film:0.03-0.15mm
·The highest temperature of the heat shrink furnace: 160-260.
Can adjust freewill.
·The maximum production per minute:0-12 pakage
·Equipment capacity: 20Kw
·Actual power consumption:15Kw/hour
·Machine reuired air pressure of the compressor:0.6-0.8Mpa
1. Packing terms:
(1)350/500/550/600ML large package: 4*6, 4*5
Small package: 3*4, 3*5
(2)1L/1.5L/2L/2.5L large package:3*3,3*4
2. For the pop can packing ,we advise packing with pallet,it will be steady.
3. Packing speed:8-15 bundles/minute
4. Satisfy the speed of the liquid filling machine.
(1)350/500/550/600ML large package :4*6, 4*5, (12000-15000 bottles/hour)
5. Material of packing:the wideth of PE heat shrink film
