Fully - Automatic Shrink Packaging Equipment For Square Round Bottle Pop Can

Fully - Automatic Shrink Packaging Equipment For Square Round Bottle Pop Can

    • Fully - Automatic Shrink Packaging Equipment For Square Round Bottle Pop Can
    • Fully - Automatic Shrink Packaging Equipment For Square Round Bottle Pop Can
  • Fully - Automatic Shrink Packaging Equipment For Square Round Bottle Pop Can

    Product Details:

    Place of Origin: China
    Brand Name: Sunswell
    Certification: CE, ISO, SGS
    Model Number: MB-10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Export Standard Seaworthy Wooden Case
    Delivery Time: 30 days
    Payment Terms: T/T, L/C
    Supply Ability: 100 sets per year
    Contact Now
    Detailed Product Description
    Name: Pallet Wrapping Equipment Shrink Film Packaging Machine Automatic Grade: Fully-Automatic
    Driven Type: Electric Application: Food,Beverage,Commodity
    After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 12 Months

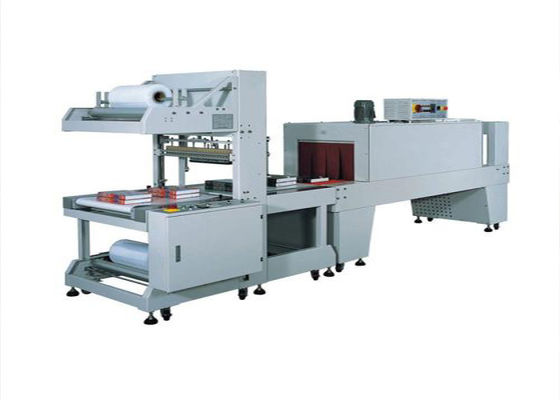

    Fully-Automatic Packaging Machinery for Square Round Bottle Pop Can

    Advantages

    1. Simple working process, easy operation and maintenance. Packaging, delivering, heating, combining, cooling can be finish in one time.
    2. Good shrinking effect. Smooth surface of packaging products, sealing and cutting angular is apparent, high efficient combining, continuous shrink packaging.

    Machine characteristics

    1. Stainless steel tube heating shrink tunnel
    2. internal recycle, uniform heating shrink oven
    3. Imported Italy silicon rubber tube material
    4. International advanced technology shrink wrapping machine
    5. Working with semi-automatic L type sealing and cutting machine

    Features

    1. Automatic cover only artificial product placement film machine, the machine automatically push things, sealing, shrink packaging series of actions, greatly reduce labor intensity and improve work efficiency;
    2. Mantle machine cutter with alloy blades, outside Teflon coated, non-stick knife, cut a good sealing effect;
    3. Hot knife made of aluminum alloy and stainless steel heating plate, a longer life;
    4. Film frame plus a tensioned membrane motors, avoiding the use of large volumes when PE membrane sealing problems;
    5. PE film shrink packaging machine with chain mesh transmission, smooth operation;
    6. Furnace using a hundred impeller blades, good hot air circulation effect;
    7. Adopt Germany advanced technology, its main parts are domestic famous brands;
    8. Stable and machine performance, long service life.

    TECHNICAL PARAMETER:

    Model UT-LSW20 UT-LSW12
    Dimension For The Whole Unit L12000mm*W1100*H2100 L5500mm*W3200*H2100
    Thermal Shrinkage Passage Dimension L2400mm*W650*H450 L1800mm*W650*H450
    Max.package Dimension L600mm*W400*H350 L1600mm*W400*H300
    Packaging Speed 15-23PCS/MIN 10-13PCS/MIN
    Transfer Belt Dimension 550MM 800-1200MM
    Sealing And Cut Time/temperature 0.5-1s ,Degree:180-260 0.5-1.5s ,Degree:140-160
    Operating Power Supply/power (TN-S)380v35kw (TN-S)382v19kw
    Operating Air Pressure 0.6-0.8Mpa 0.6-0.8Mpa
    Air Consumption 0.6m³/min 0.5m³/min


    Fully - Automatic Shrink Packaging Equipment For Square Round Bottle Pop Can

    Fully - Automatic Shrink Packaging Equipment For Square Round Bottle Pop Can
