|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Standard export wooden case|
|Payment Terms:||L/C, T/T|
|Supply Ability:||100sets per year|
|Filling Material:||Mineral Water,pure Water,Pure/Mineral Water||Automatic Grade:||Automatic|
|Type:||Filling Machine||Material:||316L+304 Stainless Steel|
|After-sales Service Provided:||Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,Free Spare Parts||Warranty:||1 Year|
5 Gallon 20L, 19L Jar / Bottle /Barrel Drinking Pure Water Mineral Water Filling Bottling Machine
Complete Line Flow :

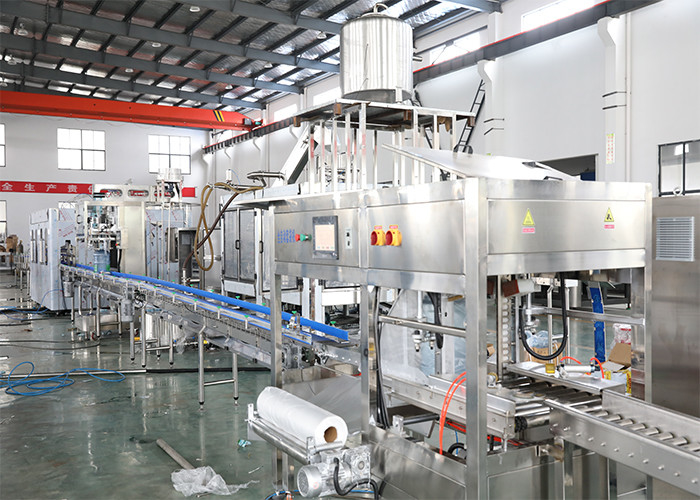

Empty bottle Conveyor belt---→Caps Decapper---→ Brush External Bottle Washer ---→Automatic Bottle Loading System---→Internal Bottle Washer/ Disinfecter ---→ Rotary Filler ---→ Chain Plate Capper with caps washer---→Filled Bottle Conveyor Belt---→Lamp Checker---→Insert the caps label Sleeve Labeling Machine---→Heat Shrinking Machine---→Chain Style Bottle Lifter ( for the purpose to put on the plastic film cover) ---→Filled Bottles Conveyor Belt to the truck or stock room.
The production line can automatically complete cleaning the tub, sterilizing, filling, capping, shrink, bagging and transporting, having functional and compact structure, and simple, it is a mechanical, electrical, gas in one equipment.
The machine material is stainless steel,resisting corrosion and easy to clean,the main electrial components and gas circuit elements are all of international brand.
According to the customer's requirement,the machine could be equipped with automatic cap separator,atoumatic leakage inspector,automatic cap loader,shrink wrapper,etc.
Description Of Equipment
Automatic decapper is a special equipment for retrieving barrel. It does not damage caps. This machine adopts computer control and its capacity can be adjusted. Cap pulling organism from AIRTAC adopt pneumatic adjustment, which solves the problems of tolerance of barrel height and tolerance of barrel's mouth,and increases cap pulling success greatly.
Decapping head: 3pcs
Jar size: Ф276×490×Ф56mm
Compressed air: pressure 0.5-0.6Mpa, consumption 400L/hr
Pneumatic cylinder drive
Outer Brusher is a corollary equipment for barrel water line which produces mineral water and pure water. Bottom and outside surface will be cleaned completely. The machine is made of stainless steel,it is anti-corrosion and easy cleanable. Adopt bottle-jamming inspection device to decrease damage rate.It is well designed with reasonable structure and high efficiency, operating stably with highly automation.
Pneumatic components: AirTAC
AC contactor: Schneider/SIEMENS
Bearing has good waterproof structure.
Starwheel motor:Shanghai 0.75kw
Washing pump: CNP 0.37kw

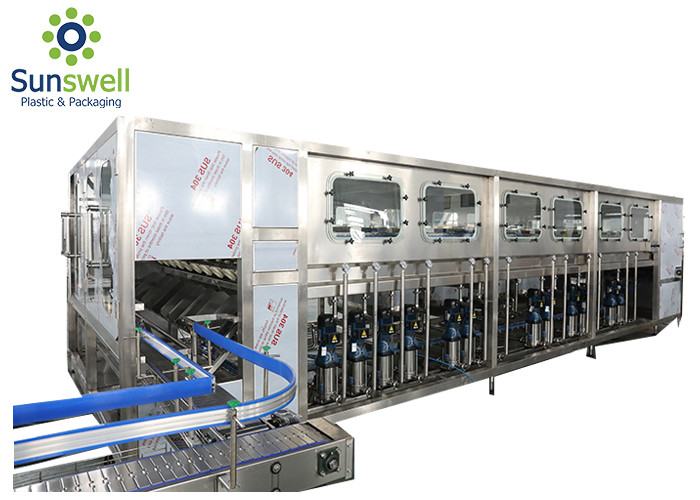

3,Bottle Washing Machine
15 steps for washing: 1-2 steps of hot alkaline water; 3-4 step of recycled water rinsing; 5-7 steps of
acid water; 8 step of dripping; 9-10 steps of recycled water rinsing; 11 step dripping; 12-14 steps of pure
water rinsing; 15 step of dripping.
Disinfectant recycled on side, convenient for sampling and inspection. Each tank has low level alarming device. Chain moving for cleaning. Double-layer board avoids water mixing. High speed filling valves. Adopt chain type pressing caps.
Air source:pressure 0.5~0.6Mp,consumption 350L/M
Structure: transmission controlled by PLC.
Configuration (lye tank leaves steam joint)
Pneumatic components: AirTAC
AC contactor: Schneider
Main motor: Shanghai Bolong
Equip automatic cap sorting and loading system
Equipment automatic malfunction protection device
4,Filling-capping 2-in-1 Monoblock
1. stainless steel insert type filling nozzle, two times high precision filling, filling volume adjustable.
2. Water pump is equipped.
3. Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts
4. With AIRTAC brand air cylinder, F.R.L. Combination and solenoid valve for air cylinder.
5. Machine frame and body: all 304 Stainless Steel, combine with clear fiber glass windows
Filling head: 8 pcs
Power supply: 380V 50Hz 3 phase (adjustable )
Air consumption: 0.5m3/min
Suitable to Φ270×490 bottle (3,4,5 Gallon Bottle )
5,Heat Shrinking Machine
Electrical heating produces hot steam,barrels with full water after light inspecting are sleeved with plastic labels, then they enter steam paths to make plastic labels molding.
Material of machine body and pipeline: 304 Stainless Steel.
With two thermal inside
Automatic water lever control
To check the filled bottle full filled or not, and to check if have any impurity in the bottle water.
7.Automatic bagging machine
Cap elevator is equipped with testing switch, when caps are consumed to a certain degree, testing switch will signal to start feeding. There are certain amounts of caps in the cap store, which will be elevated into the capper by belt.
9,Bottle Conveyor Belt
Sunswell leads the market in the field of machinery and process technology for liquid packaging.
The Sunswell product range covers all types of machinery for packaging of liquid including water, tea, juice, carbonated soft drinks, energy drinks, alcoholic drinks, beer, edible oil, dairy products, etc.
Leadership in quality and technology from raw material to bottled liquid to recycled plastic chips - Sunswell, A-Z turnkey plant supplier, is known for developing innovative high-end products and new technologies.
More information pls contact :
+86 138 1284 5656
Zhangjiagang Sunswell Machinery Co., Ltd
Contact Person: Sam Sun
