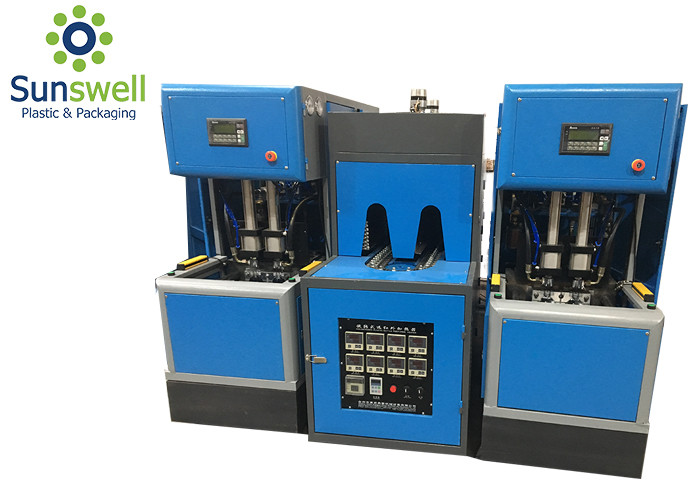

Advanced Stretch 4 Cavity Pet Blowing Machine For Plastic Bottle Making

Advanced Stretch 4 Cavity Pet Blowing Machine For Plastic Bottle Making

    • Advanced Stretch 4 Cavity Pet Blowing Machine For Plastic Bottle Making
    • Advanced Stretch 4 Cavity Pet Blowing Machine For Plastic Bottle Making
  • Advanced Stretch 4 Cavity Pet Blowing Machine For Plastic Bottle Making

    Product Details:

    Place of Origin: China
    Brand Name: SUNSWELL
    Certification: CE,ISO,SGS
    Model Number: SW-400

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiate
    Packaging Details: Standard Export Wooden Case
    Delivery Time: 30 Days
    Payment Terms: L/C, T/T
    Supply Ability: 100 Sets Per Year
    Contact Now
    Detailed Product Description
    Voltage: Customized Color: Customized
    Power(w): AS ORDER Use: Making PET Bottle,water Bottle
    Blow Moulding Type: Stretch Blow Moulding After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,commissioning And Training
    Warranty: 12months Key Words: PET Stretch Bottle Blowing Molding Machine

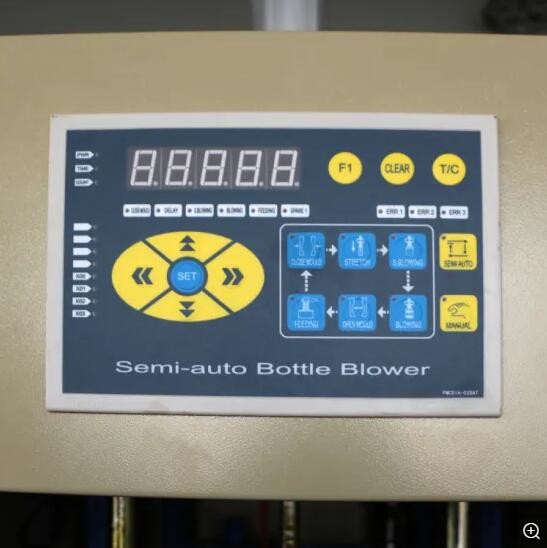

    Semi Automatic 4 Cavity PET Plastic Bottle Stretch Blow Molding Machine


    HOW IT WORKS:
    1. The Blow Molding system does not require highly trained operators to produce consistent quality bottles.
    2. The bottle making process starts by loading preforms into the preheater.
    3. The preheater uses a variable speed track that moves the preforms through a heating tunnel. The heat tunnel has specially designed heating elements for a consistent heating operation with minimal maintenance.
    4. When the preforms have made one "trip" through the preheater, they are manually loaded two(three or four) at a time into the blow molder.
    5. After the bottles are formed in the blowing cycle, they are removed and the cycle continues. The finished bottles are then loaded directly onto a conveyor for filling or can be stored for later use.


    Advanced Stretch 4 Cavity Pet Blowing Machine For Plastic Bottle Making
    Specifications:

    Output

    up to bottle shape

    2000~2500bph

    Power

    power voltage

    3Phase

    380V /50HZ

    Finished Bottle

    bottle body diameter

    30mm-110mm

    installed power / actual power

    18kw/10kw

    bottle height

    50mm-350mm

    Air Source

    high pressure air compressor

    1.6m3/min 3.0MPa



    bottle neck diameter

    15mm-48mm

    air dryer

    2.0m3/min 3.0MPa

    Mold

    cavity 4 cavity

    Cooling Water

    water yield

    15L/min

    mold thickness

    100~250mm

    Blower Dimension



    length*width*height/ weight

    1650*800*1850mm/650kg

    Max. stretching distance

    600*380mm

    Heater Dimension



    length*width*height/ weight

    2150*670*1700mm/350kg

    Main parts:

    No. Name Specification Quantity Rewark
    1 Semi Auto Bottle Blowing Machine

    SW-400



    1
    2 Heating Oven 1 38KW
    3 Mold 500ml. 4Cavity 1 45#Steel
    4 High Pressure Compressor 1.6m3/3.0mpa 1 18.5KW
    5 High Pressure Tank 0.6m3/3.0mpa 1
    6 High Pressure Air Dryer 2.0m3/3.0mpa 1 5KW
    7 High Pressure Filer 2.0m3/3.0mpa 2
    8 Tubes & Pipes 2.0m3/3.0mpa 1
    9 Chiller 3HP.air chiller 1 5KW
























    Advanced Stretch 4 Cavity Pet Blowing Machine For Plastic Bottle Making

    Advanced Stretch 4 Cavity Pet Blowing Machine For Plastic Bottle Making
