Pure Water Beverage Drink Filling Machine Complete Turnkey Project From A To Z

Pure Water Beverage Drink Filling Machine Complete Turnkey Project From A To Z

    • Pure Water Beverage Drink Filling Machine Complete Turnkey Project From A To Z
    • Pure Water Beverage Drink Filling Machine Complete Turnkey Project From A To Z
  • Pure Water Beverage Drink Filling Machine Complete Turnkey Project From A To Z

    Product Details:

    Place of Origin: Jiangsu, China
    Brand Name: Sunswell
    Certification: CE SGS
    Model Number: BFC

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wooden case
    Delivery Time: 90 days after receiving down payment
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets/year
    Contact Now
    Detailed Product Description
    Type: Filling Machine Voltage: 220V/110V/380V/440V
    Driven Type: Electric After-sales Service Provided: Engineers Available To Service Machinery Overseas
    Function: Blowing Filling Capping Processing Types: Automatic Bottle Filling Line

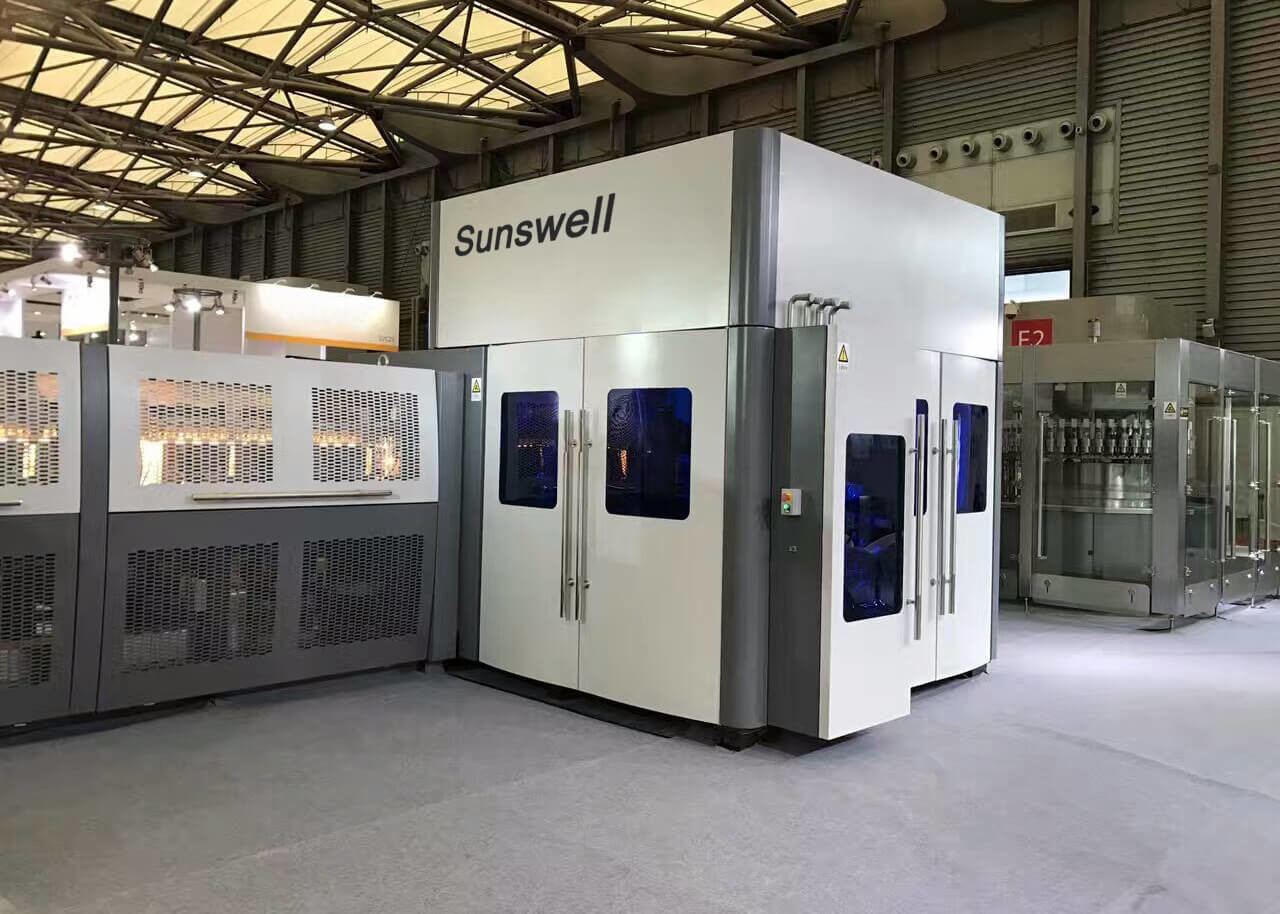

    Complete Turnkey Project From A to Z Pure Water Beverage Drink Blow/ Fill/ Cap Combiblock Filling Machine



    General description



    Sunswell is one of the leading Chinese able to manufacture High technology blowing-filling-capping machine in beverage business used in drinking water, juice, carbonated drinks area. This combiblock consists of blowing unit, filling unit, and capping unit. With the synthetic application of electricity, mechanics, and pneumatics, and synchro controlled by servo system, Combi is applicable for the integrated control of several equipment and the whole production process.

    It doesn't need empty bottle conveyor and rinsing part of the traditional filling machine, which saves a lot of room for the production plant, reduces water consumption from rinsing and energy consumption from fans used on empty bottle conveyor. It cuts a majority part of transit and guarantees the overall hygiene standard of the entire machine, which better helps end users increasing the overall production efficiency, lowering investment costs, saving energy consumption and maintenance costs.


    Working process



    1. Preform feed-in and unscrambling

    It adopts the matured worldwide-standardized way of preform feed-in and unscrambling, in which preforms go through preform elevator and are transmitted to preform unscrambler. Inside the preform unscrambler, preforms are automatically sorted and delivered by two inclined revolving cylinders with same speed, and the remaining ones will be picked by star wheel and sent back to preform hopper. The whole process of preform unscrambling is fully automatic and has high efficiency without preform scratches.



    2. Heater



    It adopts the matured worldwide-standardized way of preform feed-in and unscrambling, in which preforms go through preform elevator and are transmitted to preform unscrambler. Inside the preform unscrambler, preforms are automatically sorted and delivered by two inclined revolving cylinders with same speed, and the remaining ones will be picked by star wheel and sent back to preform hopper. The whole process of preform unscrambling is fully automatic and has high efficiency without preform scratches.

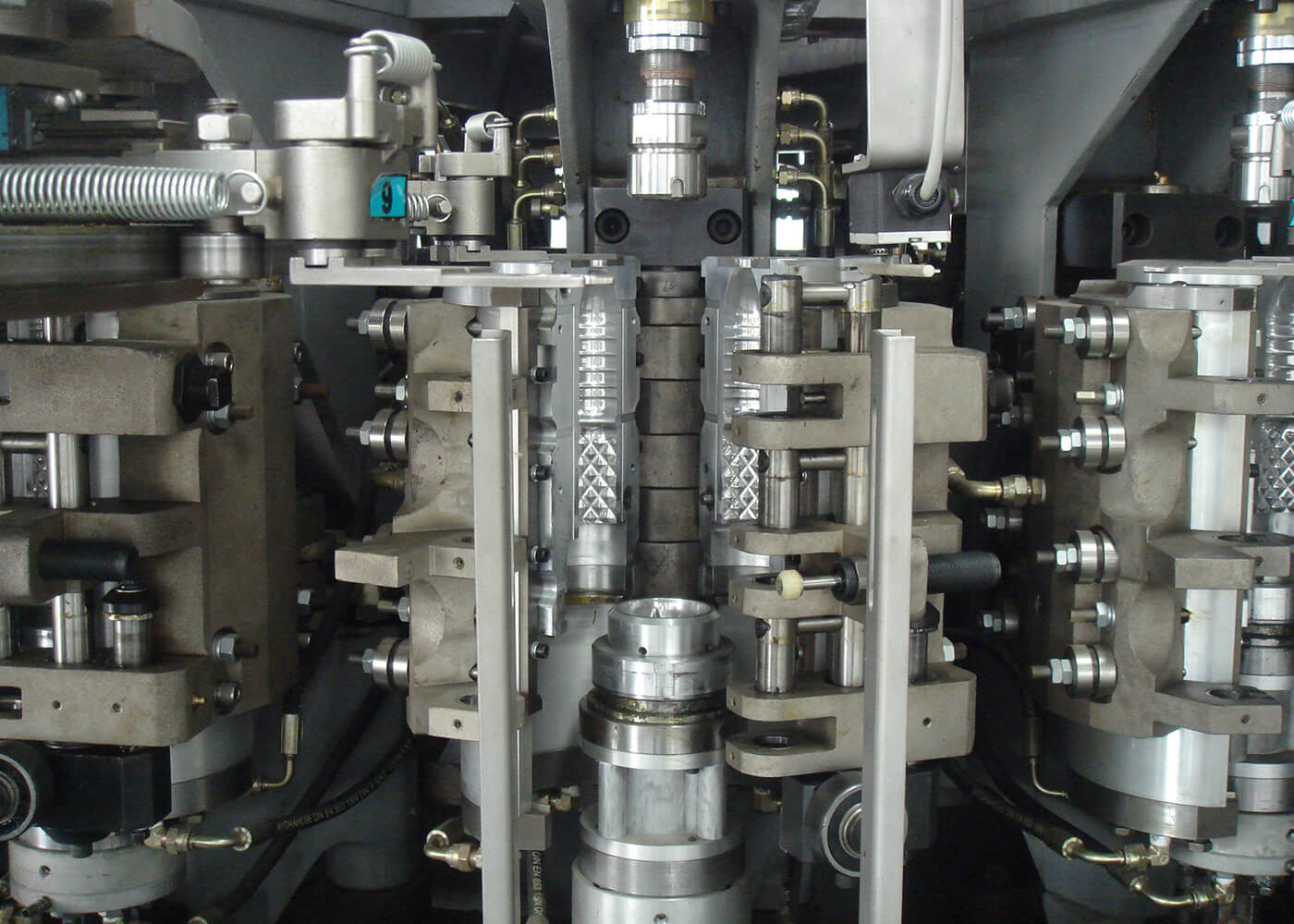

    3. Blowing unit

    Special manipulator delivers heated preforms to moulds along certain cam curve. After stretch pre-blow, the preform will be blown to bottles by connecting high pressure compressed air. Special manipulator sends the finished bottle out along certain cam curve.





    4. Filling unit


    The blow-made bottles are transported to filler via starwheel. After entering filler, the bottle is held by gripper of lifting cylinder and realizes up and down under effect of cam.
    The filler adopts gravity filling way. Bottle mouth rises to open filling valves and start filling. While product rises and plugs up air return hole, the filling will be finished. After filling, bottle mouth moves down and leaves the filling valve.



    5. Capping unit

    Bottles enter capper via transition starwheel. The anti-rotation knife of capper blocks bottle neck to keep bottle vertical and prevent rotation. Capping heads keep revolution and do rotation. Under effect of cam, the action of gripping cap, sleeve cap, screwing cap and discharging cap to finish the whole capping course. The finished bottles are conveyed via bottle-out starwheel onto bottle-out conveyor, and then are sent out of the combiblock. The whole machine adopts console sealing windows, beautiful and decent.


    Model For water combiblock bottling line:



    NO. Model Capacity Remark
    1 8-24-8 12000bph
    2 12-32-10 18000bph
    3 16-40-15 24000bph
    4 20-60-18 36000bph
