Carbonated / Non Carbonated Water Juice Filling Equipment For Bottling Packing

Carbonated / Non Carbonated Water Juice Filling Equipment For Bottling Packing

    • Carbonated / Non Carbonated Water Juice Filling Equipment For Bottling Packing
    • Carbonated / Non Carbonated Water Juice Filling Equipment For Bottling Packing
  • Carbonated / Non Carbonated Water Juice Filling Equipment For Bottling Packing

    Product Details:

    Place of Origin: Jiangsu, China
    Brand Name: Sunswell
    Certification: CE SGS
    Model Number: BFC

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wooden case
    Delivery Time: 90 days after receiving down payment
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets/year
    Contact Now
    Detailed Product Description
    Type: Filling Machine Voltage: 220V/110V/380V/440V
    Driven Type: Electric After-sales Service Provided: Engineers Available To Service Machinery Overseas
    Function: Blowing Filling Capping Processing Types: Automatic Bottle Filling Line
    Application: Beverage Packaging Type: Bottles
    Warranty: 12 Months Material: Stainless Steel 304/316

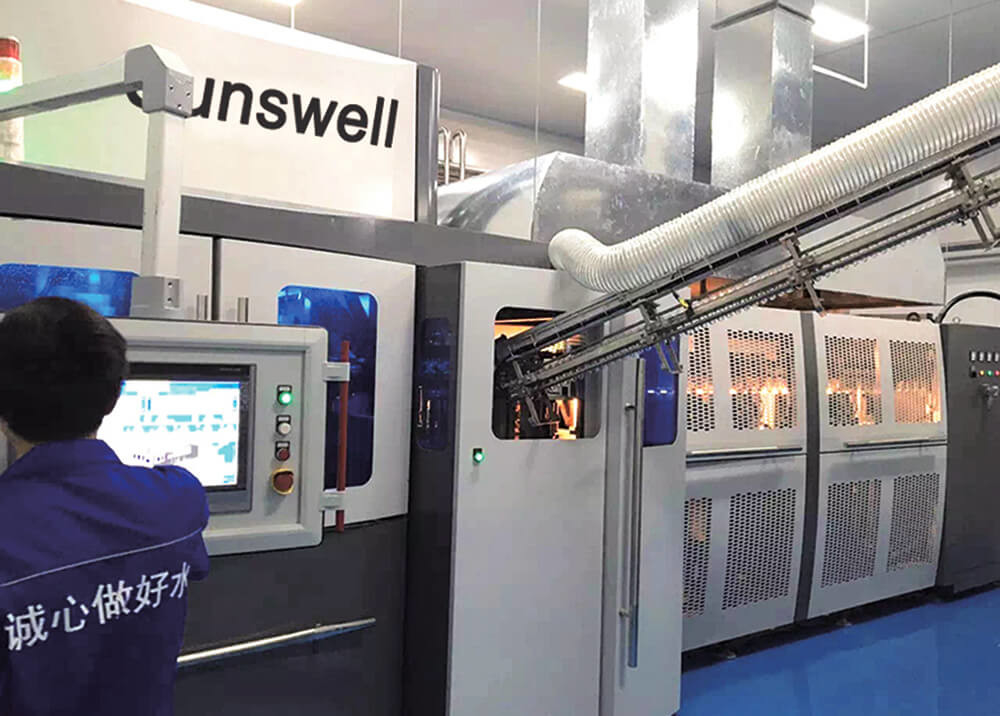

    Automatic Carbonated/Non-carbonated Water Juice PET Bottle Blowing-Filling-Capping Combiblock for Bottling Packing



    Blowing-Filling-Capping Combiblock:



    The innovative packing technology with a single unit machine to complete the whole process from preform to bottled liquid products.

    Blower, filler and capper combined to one block, improves sanitary conditions, reduce cross contamination, increase running effieciency, and reduce energy consumption.



    Flow Chart:



    Preform input---Heating---Bottle blowing---Star wheel transmission---Filling---Capping---Product output



    Characteristics:

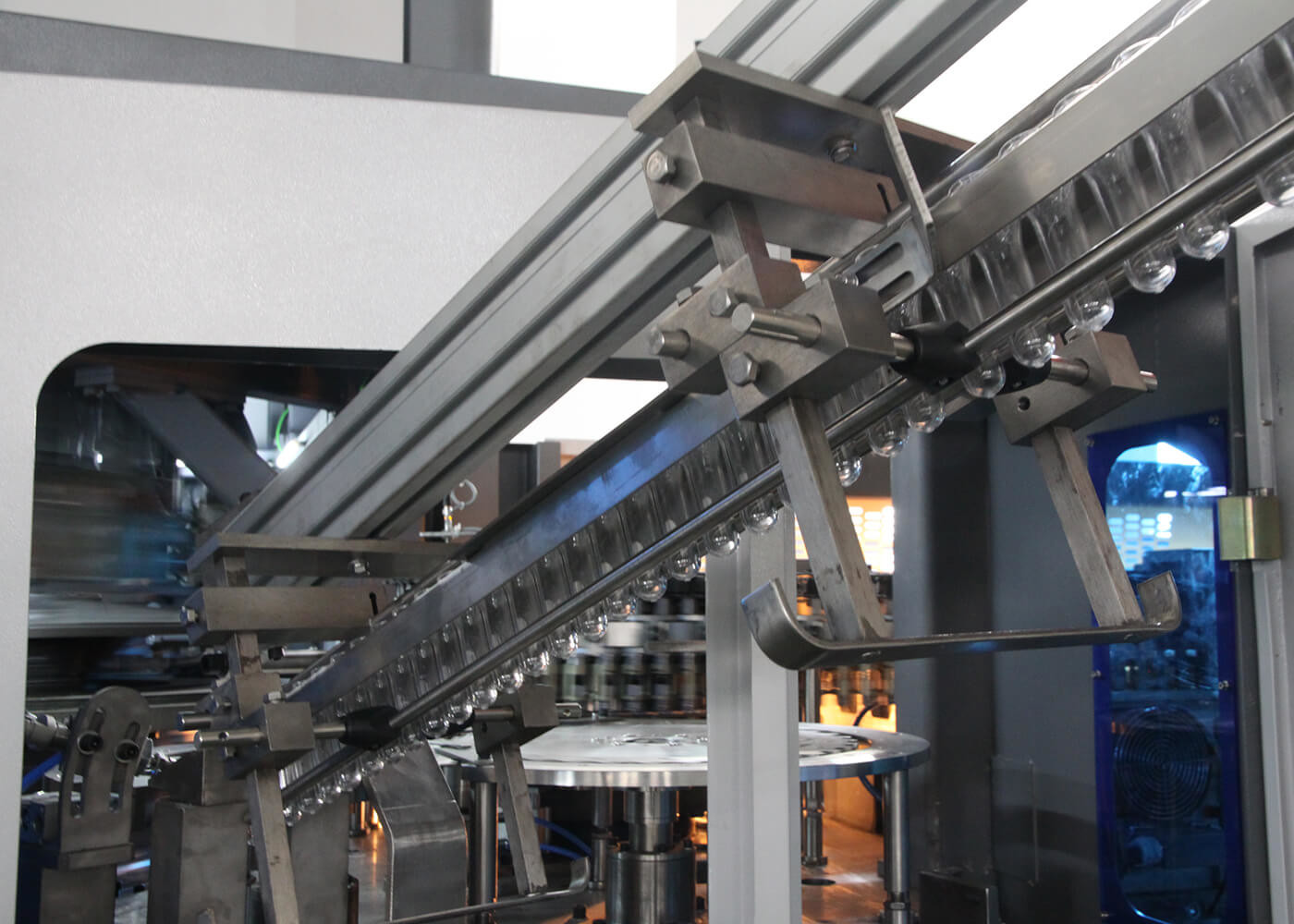

    1. Preform feed-in and unscrambling



    It adopts the matured worldwide-standardized way of preform feed-in and unscrambling, in which preforms go through preform elevator and are transmitted to preform unscrambler. Inside the preform unscrambler, preforms are automatically sorted and delivered by two inclined revolving cylinders with same speed, and the remaining ones will be picked by star wheel and sent back to preform hopper. The whole process of preform unscrambling is fully automatic and has high efficiency without preform scratches.



    2. Heater



    It adopts the matured worldwide-standardized way of preform feed-in and unscrambling, in which preforms go through preform elevator and are transmitted to preform unscrambler. Inside the preform unscrambler, preforms are automatically sorted and delivered by two inclined revolving cylinders with same speed, and the remaining ones will be picked by star wheel and sent back to preform hopper. The whole process of preform unscrambling is fully automatic and has high efficiency without preform scratches.



    3. Blowing unit



    Special manipulator delivers heated preforms to moulds along certain cam curve. After stretch pre-blow, the preform will be blown to bottles by connecting high pressure compressed air. Special manipulator sends the finished bottle out along certain cam curve.



    4. Filling unit



    The blow-made bottles are transported to filler via starwheel. After entering filler, the bottle is held by gripper of lifting cylinder and realizes up and down under effect of cam.
    The filler adopts gravity filling way. Bottle mouth rises to open filling valves and start filling. While product rises and plugs up air return hole, the filling will be finished. After filling, bottle mouth moves down and leaves the filling valve.



    5. Capping unit



    Bottles enter capper via transition starwheel. The anti-rotation knife of capper blocks bottle neck to keep bottle vertical and prevent rotation. Capping heads keep revolution and do rotation. Under effect of cam, the action of gripping cap, sleeve cap, screwing cap and discharging cap to finish the whole capping course. The finished bottles are conveyed via bottle-out starwheel onto bottle-out conveyor, and then are sent out of the combiblock. The whole machine adopts console sealing windows, beautiful and decent.



    Model for water combiblock bottling line:



    NO. Model Capacity Remark
    1 8-24-8 12000bph
    2 12-32-10 18000bph
    3 16-40-15 24000bph
    4 20-60-18 36000bph
