Place of Origin: | Zhangjiagang, Jiangsu, China |
---|---|
Brand Name: | Sunswell |
Certification: | CE |
Model Number: | BFC |
Minimum Order Quantity: | 1 set |
Price: | USD12,000~2,000,000/SET |
Packaging Details: | PE film with carton box / wood packaging |
Delivery Time: | 60~120 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 10sets/season |
Applicable Industries:: | Food & Beverage Factory | Filling Valve Material:: | Ss316L |
---|---|---|---|
Suitable Bottle Volume:: | 330-2250ml | Application: | Beverage |
Packaging Type: | Bottles | Driven Type: | Electric |
High Light: | Automatic Rotary monoblock bottling machine,non carbonated monoblock bottling machine,non carbonated monoblock filling machine |
Product Description:

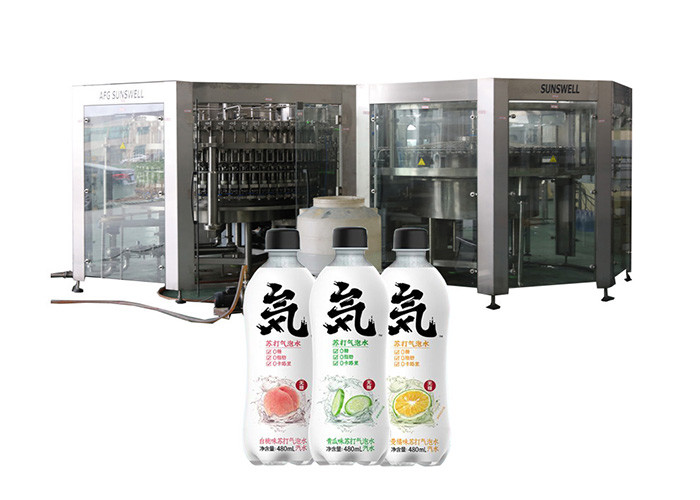

Carbonated drink filling machine are manufactured by advanced technology, and we have completely equipment, so they enjoy fast sales. The filling line combines rinsing bottles, filling bottles and capping bottles together with PLC control. It is mainly used for plastic bottles with carbonated beverages and non-carbonated beverages.
Product Capacity : 2500-24000bph
Model | Filling Heads | Capacity | Bottle Size | Power | Dimension(mm) | Weight |
DCGF14-12-5 | 12 | 2500bph | 200-2000ml | 1.8kw | 2200*1800*2000 | 2500 |
DCGF18-18-6 | 18 | 3000bph | 200-2000ml | 2.6kw | 2500*1800*2300 | 3000 |
DCGF24-24-8 | 24 | 6500bph | 200-2000ml | 3.8kw | 2800*2100*2300 | 5000 |
DCGF32-32-10 | 32 | 8000bph | 200-2000ml | 4.2kw | 3500*2200*2300 | 6000 |
DCGF40-40-10 | 40 | 10000bph | 200-2000ml | 7kw | 4760*2080*2300 | 7000 |
DCGF50-50-12 | 50 | 13000bph | 200-2000ml | 9kw | 5150*3820*2700 | 8500 |
DCGF60-60-15 | 60 | 17000bph | 200-2000ml | 13kw | 5300*3950*2700 | 10000 |
Deatails of each equipment:

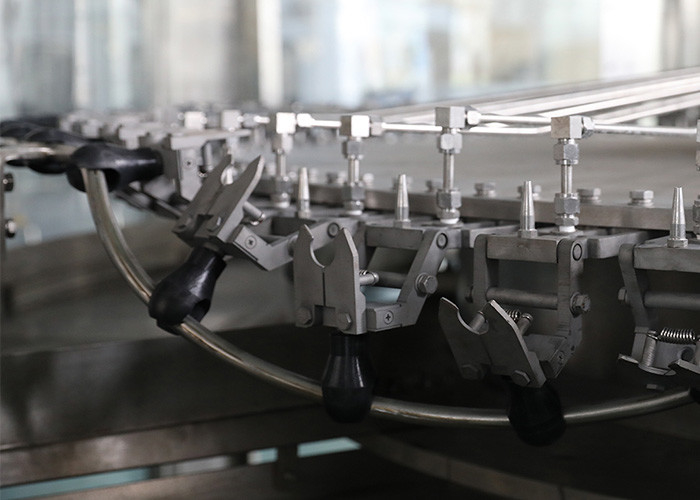

1. Bottle infeed Air conveyor, star-wheel cooperate input the bottle, |
2.RinserCarbonated drinks filling machine is rotary washing machine |

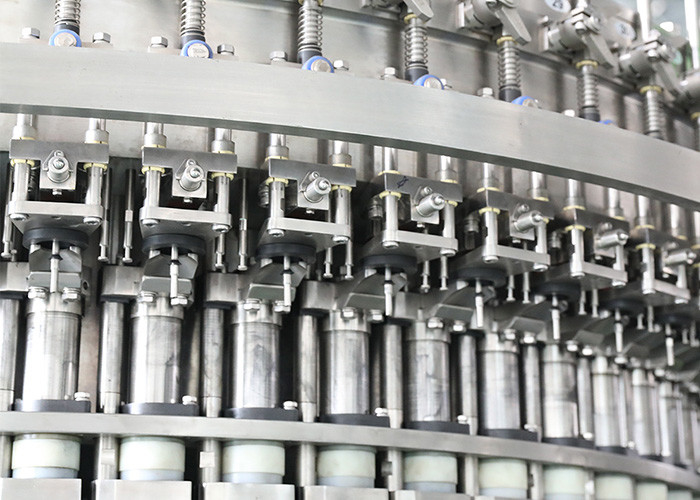

3. Filler Filling valve use isobar machinery valve, High speed and big flow, the high accuracy filling valve, filling speed fast, the liquid level is stable. |
4. Capper The bottle into the click wheel through the transition card bottleneck Capping Machine. |
