Sunswell Water Filling Machines With Capping Function 2.25L / 5L / 6L For Sparkling Water

Sunswell Water Filling Machines With Capping Function 2.25L / 5L / 6L For Sparkling Water

    • Sunswell Water Filling Machines With Capping Function 2.25L / 5L / 6L For Sparkling Water
    • Sunswell Water Filling Machines With Capping Function 2.25L / 5L / 6L For Sparkling Water
  • Sunswell Water Filling Machines With Capping Function 2.25L / 5L / 6L For Sparkling Water

    Product Details:

    Place of Origin: China
    Brand Name: Sunswell
    Certification: CE, ISO, SGS, UL
    Model Number: XGFH32-32-8

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Seaworthy Wooden Case
    Delivery Time: 30 days
    Payment Terms: T/T, L/C
    Supply Ability: 100 sets per year
    Contact Now
    Detailed Product Description
    Type:: Filling Machine Condition:: New
    Application:: Beverage Packaging Type:: Bottles
    Driven Type:: Electric Certification:: ISO/CE/SGS



    Sunswell Water Filling Machines With Capping Function 2.25L / 5L / 6L For Sparkling Water

    Qucik Detail:



    The water line is composed of separate rinsing, filling and capping units. It is innovated and designed in the requirement of still pure water and mineral water in big jars, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.





    Applications:



    Still water, pure water, RO water, mineral water, sparkling water, etc. in 3L, 4L, 5L, 6L, 8L, 10L bottles and jars



    Competitive Advantage:



    Main features



    Rinsing Machine



    Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.

    Rinsing machine adopts our company original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.
    Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with the angle 15° ensures to wash all side of the bottle, and can save the water.

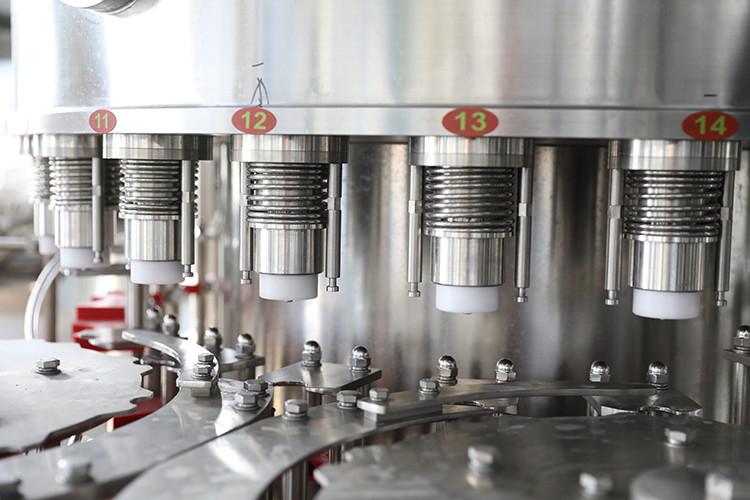

    Filling Machine



    The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ±2mm.
    The filling valve material is SUS304
    The filling system has liquid level automatic control.
    Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck, it starts to fill.
    Bottle is conveying by the wheel in the filling part.

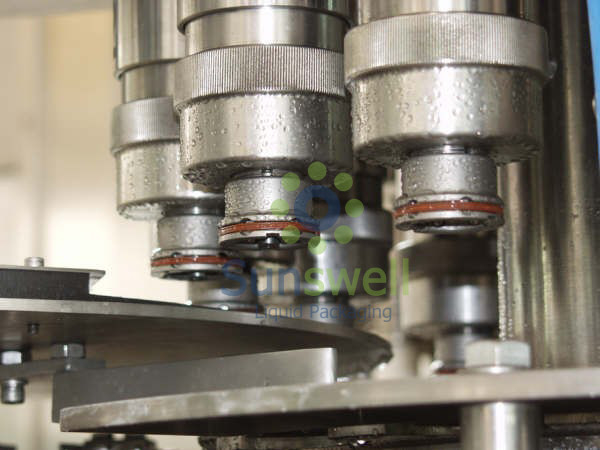

    Screw Capping Machine



    Screw capping machine is most precision part in the machine, which has a big influence to the goods stability and defective rate. Our screw capping has following feature.
    1) Our company import of advanced technology of screw capping, improve the stability and reliability of the screw capping machine. The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.
    2) In the screw capping part, installed photoelectricity control, when it has no cap or the cap is bad, the machine will stop automatically.





    Main Specification



    Touch screen:                           Thinget

    PLC program controller:           Mitsubishi

    Inverter:                                    Mitsubishi

    Photoelectrical controller:         Omron

    Proximity switch:                       Omron

    Other electrical components:   Schneider

    Pneumatic component:            Airtac

    Pump:                                      Nanfang

    Main motor:                             Siemens



    Specifications:

    Model

    CGF32-32-8

    Number of working positions

    rinser 32, filler 32, capper 8

    Rated capacity

    3,000BPH (6L)

    4,000BPH (5L)

    6,000BPH (2.25L)

    Filling method

    Gravity filling

    Air supply pressure

    0.7 MPa

    Air consumption

    0.8M3/min

    Rinsing water pressure

    0.2-0.25 MPa

    Rinsing water consumption

    2.4 tons/hour

    Main motor power

    4Kw

    Installed power

    5.5Kw

    Dimensions

    3380×2580×2700mm

    Machine weight

    6000Kg
