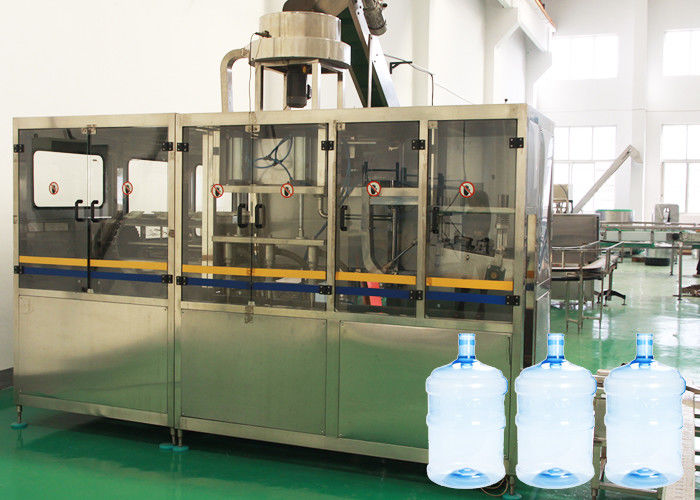

13KW 5 Gallon Water Bottle Filling Machine With Barrel Rinser For Pure Water

13KW 5 Gallon Water Bottle Filling Machine With Barrel Rinser For Pure Water

    • 13KW 5 Gallon Water Bottle Filling Machine With Barrel Rinser For Pure Water
    • 13KW 5 Gallon Water Bottle Filling Machine With Barrel Rinser For Pure Water
  • 13KW 5 Gallon Water Bottle Filling Machine With Barrel Rinser For Pure Water

    Product Details:

    Place of Origin: China
    Brand Name: Sunswell
    Certification: CE, ISO, SGS, UL
    Model Number: TGX-1200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Seaworthy Wooden Case
    Delivery Time: 30 days
    Payment Terms: T/T, L/C
    Supply Ability: 100 sets per year
    Contact Now
    Detailed Product Description
    Weight: 2500kg After-sales Service Provided: Engineers Available To Service Machinery Overseas
    Dimension(l*w*h): According To 5 Gallon Bucket Water Filling Line Voltage: 380V 50HZ 3P Or Customized
    Application: Beverage Driven Type: Electric
    Automatic Grade: Automatic Type: Filling Machine
    Condition: New Material: SUS304
    Power: 1.6KW To 10KW Capacity: 300BPH For 5 Gallon Bottle
    Function: Washing Filling Capping Bottle Type: Plastic Bottle
    Name: 5 Gallon Filling Machine Warranty: One Year

    13KW 5 Gallon Water Filling Machine With Barrel Rinser For Pure Water







    Description:

    CGF series 3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of still water, pure water, RO water, mineral water, sparkling water, etc. in big jars on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.




    Applications:

    Still water, pure water, RO water, mineral water, sparkling water, etc. in 3 gallon, 4 gallon and 5 gallon bottles.





    Technical features of 5 gallon water filling machine

    • The machine integrates rinser, filler and capper together.
    • The machine is of stainless steel, resisting corrosion and easy to clean.
    • The main electrical components and gas circuit elements are all of international brand.





    Equipment structure of 5 gallon water filling machine

    • Automatic bottle loader
    • Barrel rinser
    • Filler
    • Capper
    • According to the customer’s requirement, the machine could be equipped with automatic cap separator, automatic leakage inspector, barrel washer, automatic cap loader, shrink wrapper, etc.



    13KW 5 Gallon Water Bottle Filling Machine With Barrel Rinser For Pure Water



    Specifications:



    Model

    TGX-1200

    Product capacity

    1200 barrel/hour

    Filling head

    12

    Equipment size

    2200×2100×2200mm (filler)

     1000×1200×2200mm (capper)

    Power supply

    Main machine (KW)

    13

    Compressed air

    Air pressure

    0.5Mpa

    Gas consumption

    1.5m3/min

    Washing working position

    circulating water (2 positions)

    pure water (2 positions)

    Drip working position: 1 pc

    consumption

    4T/hr
