PET Bottle Shrink Packaging Equipment , Small Beverage Bottle Wrap Packing Machine

China PET Bottle Shrink Packaging Equipment , Small Beverage Bottle Wrap Packing Machine supplier

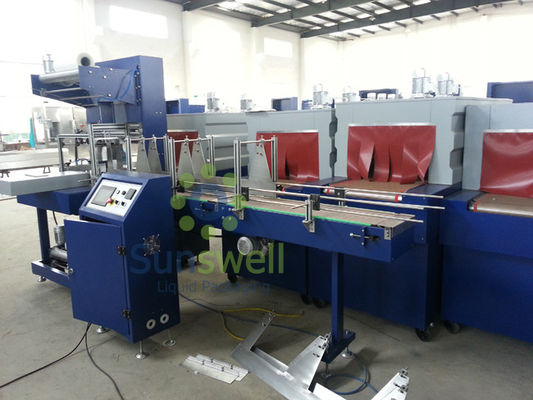

Large Image :  PET Bottle Shrink Packaging Equipment , Small Beverage Bottle Wrap Packing Machine

Product Details:

Place of Origin: China
Brand Name: Sunswell
Certification: CE, ISO, SGS, UL
Model Number: MB-20

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Seaworthy Wooden Case
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description



PET Bottle Shrink Packaging Equipment , Small Beverage Bottle Wrap Packing Machine





Description:

MB series machine has been designed for no tray, no cardboard case, packing with low cost in the operations, it is widely used in food, beverage, chemical and office industries





Applications:

  • Shrink film wrapping
  • Soft drink, liquor (beer, rice wine and alcohol, etc.)
  • Liquid food (edible oil, vinegar and soy sauce, etc.)
  • Daily commodities (detergent, shampoo and so on)





Main features

  1. Exterior is compact, excellent and frame is novel, Particular, repair is easy. Electron influence for film-feeding, is placidly, film-changing is quickly.
  2. Using isothermal sealing and cutting knife .The seal’s intensity is cooling sealing & cutting knife 3 times and the use life is above cooling sealing & cutting knife 80 times. Sealing &cutting time is 0.6s.
  3. Speed regulation of transport systems by frequency variation, the transmission action is precise and synchro.
  4. The shrinkage chamber uses centrifugal thermal air circulation system, configuration is logical, heat insulation heat preservation, thermostat precision is high and the packing effect is better.
  5. During the product forward conveying process. it can automatically group the product in to package, so as to save time and enhance packing efficiency
  6. The idea model of middle-speed heat-shrinking packager in the domestic market.





Main parts

No.

Name

Brand

Region

Remarks

1

Pneumatic Cylinder

Chanto

Taiwan



2

Pneumatic Components

Airtac

Taiwan



3

PLC

Omron

Japan



4

Button

Tayee

China



5

Inverter

Schneider

France



6

Relay

Schneider

France



7

Contactor

Schneider

France



8

Solid Relay

Crydom

France



9

Teflon Belt

Kaiyao

China

Imported material

10

Reducer

Halei

China



11

Photoelectric Switch

Autonics

Korea



12

Proximity Switch

Autonics

Korea



13

Steel Sheet

Baosteel

China

Cold-rolled (1.5-2.5mm)

14

Chain Plate

Tuoxin

China

POM





Specifications:

Model

MB-20

Packing form

2×3, 3×4, 3×5, 4×5, 4×6 (According to bottles)

Work power

three-phase-five- line 380V/50~60Hz

Working pressure

0.6~0.8Mpa

Shrink chamber size

L×W×H=2400×650×450 (mm)

Speed

18 packs/min

Sealing & cutting temperature

190°C~230°C

Shrink temperature

200°C~280°C

Material

PE

Roll of film width

≤600mm

Roll of film thickness

0.06~0.12mm

Roll of film diameter

≤450mm

Work noise

≤65dB

Total power

35KW

Total weight

2500kg

Machine size

L×W×H=12000×1100×2100mm

Conveyer belt max width

541mm, Height of produce line (Adjustable range 150mm)
