Powerful Automatic Aluminum Can Filling Machine For Beverage Juice / Beer Soda

Basic Information
Place of Origin: China
Brand Name: Sunswell
Certification: CE, ISO, SGS, UL
Model Number: YDGF12-6
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Seaworthy Wooden Case
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year

Powerful Automatic Aluminum Can Filling Machine For Beverage Juice / Beer Soda
1. Adopting crowning the caps with magnetic force, which passes the torque with powerful and constant magnet, and the torque can be adjusted to meet the need of many kind of plastic caps.
2. All the parts contact with liquid are made up of high quality stainless steel
3.This beer can filling machine is quite easy to be operated and maintained with the adopting of PLC control of frequency conversion timing.
4. Rotatory can-rinsing machine has the functions of not opening the valve and rinsing without can.
5. The sealing parts are all imported from foreign countries, which meets the requirement of the hygiene of the foodsafety
6. The automatic can filling machine is a pop canned Beer in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent development Of the can filling, sealing unit.
7. Adopting the way of filling by holding the necks of the cans, plus the function of pre-cover of the centralizing cover with high precise centralization, which ensure the right seating of mouth of the bottle and filling valve, with low liquid loss.
8.The automatic can filling machine easy to be maintained and used with the adopting of concentrating or automatic lubrication system and the structure of full-open protection.



Applications:


Soda water, juice, tea, energy drinks, beer, carbonated drinks, beer, etc. in aluminum can, pop can and PET can

Competitive Advantage:


Features
 Wholly sealed widow structure which is beautiful, concise, easy and highly operated;
 Cycling tank design with precision polishing inside;
 High precision and large flow rate filling valves to meet productive requirement;
 Specially designed roller structure which is easy to be adjusted, locked and ensure sealing function;
 Friendly and convenient operating panel with high expansibility.

Working Procedure

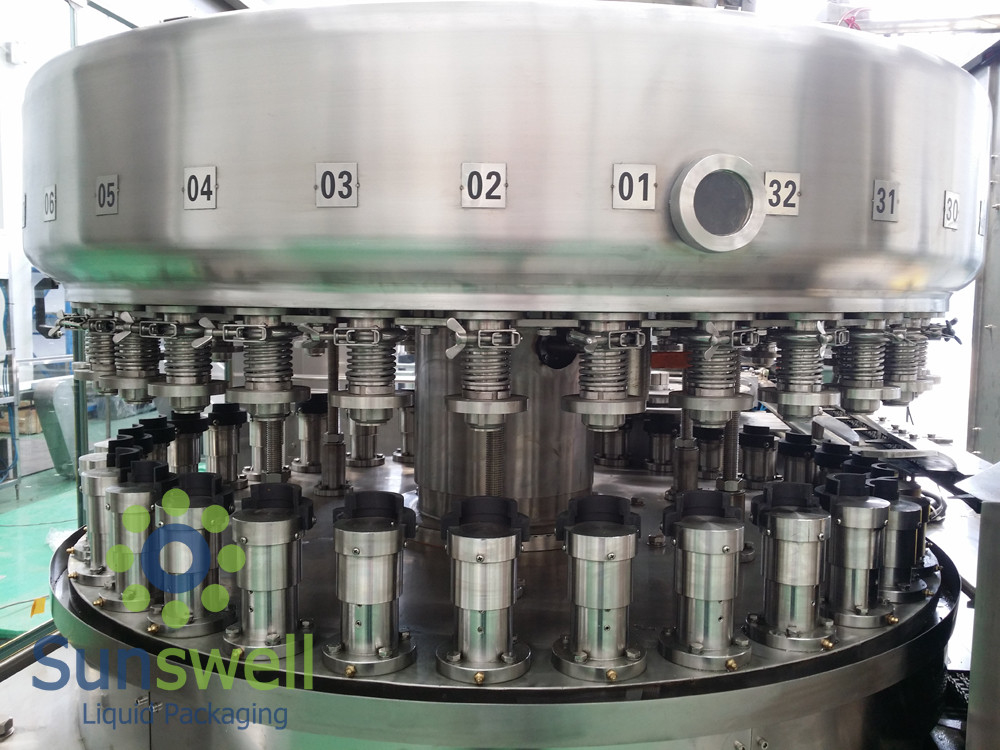

Cans will be pushed into can holding platform one by one by feeding screw and star-wheel. Centering cup of filling valve will fall to can; the distance between filling valves and cans is sealed by springiness plastic ring. The movement of centering cup is generated by plastic idler wheel along curvilinear motion. After filled, valve will be closed, air is discharged, and centering cup will rise from the can. Filled can will be sent to conveyor chain, then to seamer. Seamer will take lid, turn over the edge of can and turn the edge to finish the sealing action by the control of cam. After that can will be transferred to conveying system.

Equipment structure
 Rack
 Rotary filler
 Rotary seamer
 Aluminum infeed and outfeed system
 Control

Main Specification
 Touch screen: THINGET
 PLC program controller: Mitsubishi
 Inverter: Mitsubishi
 Photoelectrical controller: Omron
 Proximity switch: Omron
 Other electrical components: Schneider
 Pneumatic component: Airtac
 Main motor: Siemens
 Bearing: Harbin


Specifications:

Model

YDGF12-6

Filling heads

12

Seaming heads

6

Capability

3000 cans/hour (300ml)

Can height

90-170mm

Can diameter

φ50-80mm

Motor power

1.8kw

Outline

2100×1380×2000mm

Weight

2200kg
