Durable 5 Gallon Water Filling Machine , Automatic Pure Mineral Barrel Water Plant

Durable 5 Gallon Water Filling Machine , Automatic Pure Mineral Barrel Water Plant

    • Durable 5 Gallon Water Filling Machine , Automatic Pure Mineral Barrel Water Plant
    • Durable 5 Gallon Water Filling Machine , Automatic Pure Mineral Barrel Water Plant
    • Durable 5 Gallon Water Filling Machine , Automatic Pure Mineral Barrel Water Plant
    • Durable 5 Gallon Water Filling Machine , Automatic Pure Mineral Barrel Water Plant
  • Durable 5 Gallon Water Filling Machine , Automatic Pure Mineral Barrel Water Plant

    Product Details:

    Place of Origin: China
    Brand Name: Sunswell
    Certification: CE, ISO, SGS, UL
    Model Number: TGX

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Seaworthy Wooden Case
    Delivery Time: 30 days
    Payment Terms: T/T, L/C
    Supply Ability: 100 sets per year
    Contact Now
    Detailed Product Description

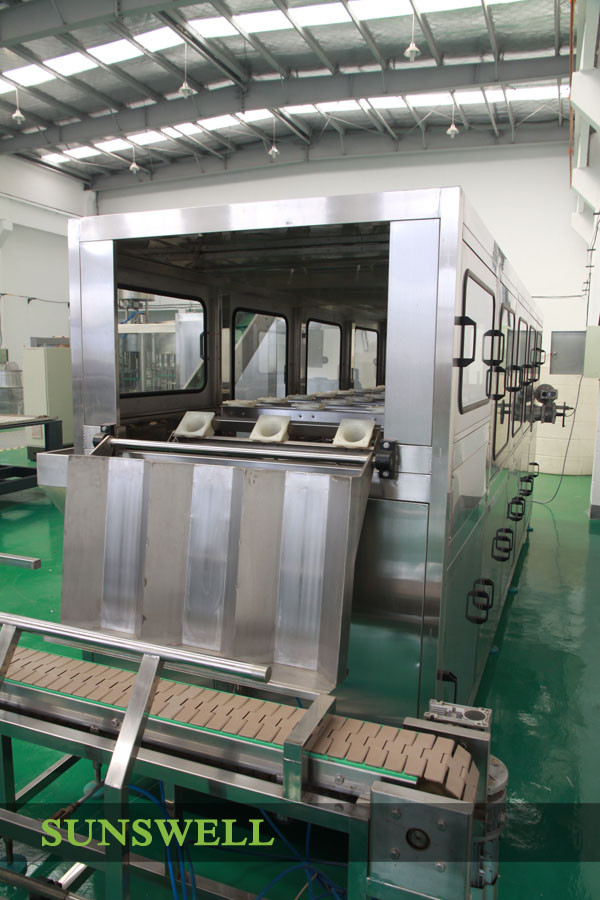

    Durable 5 Gallon Water Filling Machine , Automatic Pure Mineral Barrel Water Plant

    Applications:

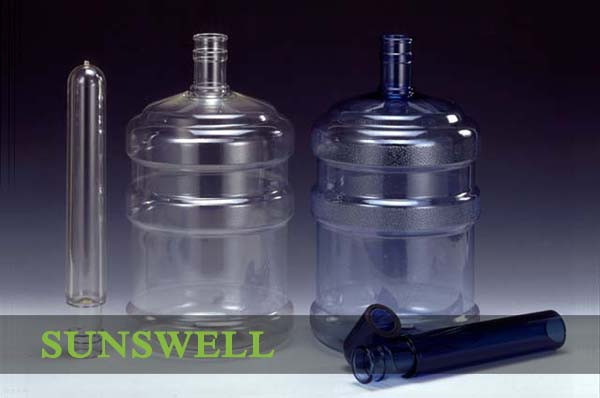

    Still water, pure water, RO water, mineral water, sparkling water, etc. in 3 gallon, 4 gallon and 5 gallon bottles

    TGX series 3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of still water, pure water, RO water, mineral water, sparkling water, etc. in big jars on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.


    Technical features of 5 gallon water filling machine

    • The machine integrates rinser, filler and capper together.
    • The machine is of stainless steel, resisting corrosion and easy to clean.
    • The main electrical components and gas circuit elements are all of international brand.


    Equipment structure of 5 gallon water filling machine

    • Automatic bottle loader
    • Barrel rinser
    • Filler
    • Capper
    • According to the customer’s requirement, the machine could be equipped with automatic cap separator, automatic leakage inspector, barrel washer, automatic cap loader, shrink wrapper, etc.


    Specifications:


    Model

    TGX-
    120

    TGX-
    300

    TGX-
    450

    TGX-
    600

    TGX-
    900

    TGX-
    1200

    Filling heads123468
    Volume(L)18.918.918.918.918.918.9
    Barrel size(mm)270*490270*490270*490270*490270*490270*490
    Capacity(b/n)1202003004509001200
    Gas pressure(Mpa)0.4-0.60.4-0.60.4-0.60.4-0.60.60.6
    Gas consumption(m*3/min)0.370.370.60.81.51.8
    Moto power(kw)1.381.753.83.89.7513.5
    Rated voltage(v)

    380V/
    50HZ

    380V/
    50HZ

    380V/
    50HZ

    380V/
    50HZ

    380V/
    50HZ

    380V/
    50HZ

    Weight(kg)680800150021003500


    4500




    Durable 5 Gallon Water Filling Machine , Automatic Pure Mineral Barrel Water Plant

    Durable 5 Gallon Water Filling Machine , Automatic Pure Mineral Barrel Water Plant

    Durable 5 Gallon Water Filling Machine , Automatic Pure Mineral Barrel Water Plant

    Durable 5 Gallon Water Filling Machine , Automatic Pure Mineral Barrel Water Plant

    Durable 5 Gallon Water Filling Machine , Automatic Pure Mineral Barrel Water Plant
