Aluminum energy drinks, beer Pop Can automatic rotary Filling Machine 1,500BPH (330ml)

Basic Infomation
Place of Origin: China
Brand Name: Sunswell
Certification: CE, ISO, SGS, UL
Model Number: YDGF8-1
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Seaworthy Wooden Case
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year

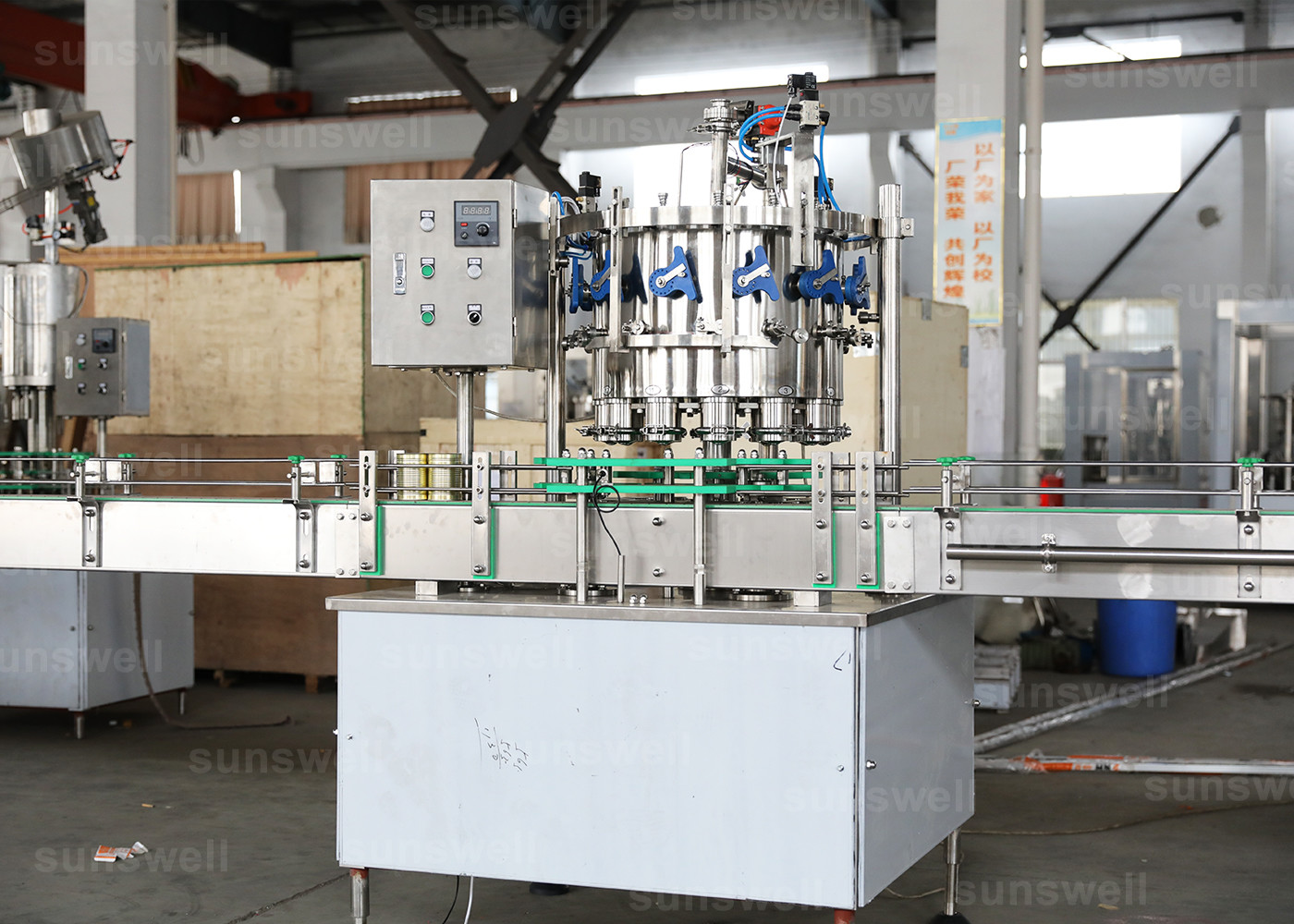

Aluminum energy drinks, beer Pop Can automatic rotary Filling Machine 1,500BPH (330ml)

The line is composed of separate automatic rotary Filling machine and can seaming machine.

This production line is suitable for the production of all kinds of carbonated drinks contained in aluminum 2-piece pop-top can, such as cola, aerated Water, soda water, etc, It is an ideal machine for small-and medium-sized beverage factories.


Specifications:

Model

YDGF8-1

Filling heads

8

Seaming heads

1

Capability

1,500BPH (330ml)

Can height

90-170mm

Can diameter

φ50-80mm

Motor power

1.5KW

Outline

1900×900×1700mm

Weight

1250kg



Applications:

Soda water, juice, tea, energy drinks, beer, carbonated drinks, beer, etc. in aluminum can, pop can and PET can



Competitive Advantage:

Features

Wholly sealed widow structure which is beautiful, concise, easy and highly operated;
Cycling tank design with precision polishing inside;
High precision and large flow rate filling valves to meet productive requirement;
Specially designed roller structure which is easy to be adjusted, locked and ensure sealing function;
Friendly and convenient operating panel with high expansibility.



Working Procedure
Cans will be pushed into can holding platform one by one by feeding screw and star-wheel. Centering cup of filling valve will fall to can; the distance between filling valves and cans is sealed by springiness plastic ring. The movement of centering cup is generated by plastic idler wheel along curvilinear motion. After filled, valve will be closed, air is discharged, and centering cup will rise from the can. Filled can will be sent to conveyor chain, then to seamer. Seamer will take lid, turn over the edge of can and turn the edge to finish the sealing action by the control of cam. After that can will be transferred to conveying system.

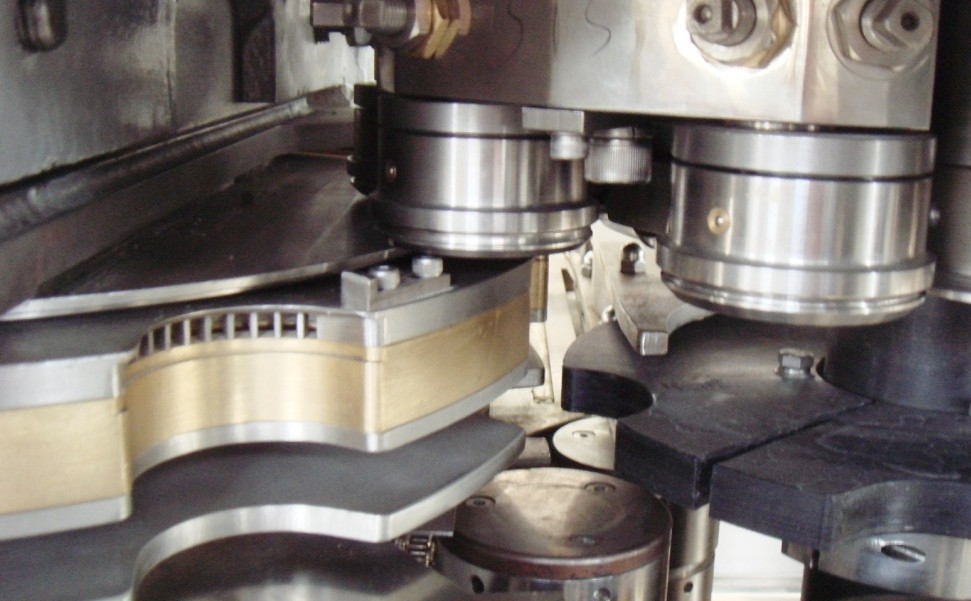

Equipment structure

Main Specification

Aluminum energy drinks, beer Pop Can automatic rotary Filling Machine 1,500BPH (330ml)



Aluminum energy drinks, beer Pop Can automatic rotary Filling Machine 1,500BPH (330ml)
