Pet Bottled Juice Filling Machine Automatic For Apple / Orange Juice Plant

Basic Information
Place of Origin: China
Brand Name: PET ALL
Certification: CE&ISO
Model Number: RXGF
Minimum Order Quantity: 1
Packaging Details: Wooden packing
Delivery Time: 7 days
Payment Terms: T/T, LC,WESTERN UNION
Supply Ability: 100 sets per year



Pet Bottled Juice Filling Machine Automatic For Apple / Orange Juice Plant





Basic Info.

Model NO.:RXGF
Automatic Grade:Automatic
Structure:Rotary
Feed Cylinder Structure:Multi-Room Feeding
Material Type:Liquid
Type:Volumetric Filling Machine
Filling Valve Head:Multi-Head
Packaging Container Lifting Structure:Chute Lifting
Filling Principle:Atmospheric Pressure
Packaging Type:Bottle
Dosing Device:Surface Type
Packaging Material:Plastic
Juice Filling Machine for Hot Fillng:Apple Orange Juice Plant
Juice Filler:Pet Bottling Machine
Automatic Juice Machine:Juice Plant
Export Markets:North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:sunswell
Packing:Film Wrapping Plus Sea Worthy Wooden Case
Standard:CE, ISO, UL
Origin:Zhangjiagang, Jiangsu, China
HS Code:8422301090
Production Capacity:5 Sets/Month

Product Description

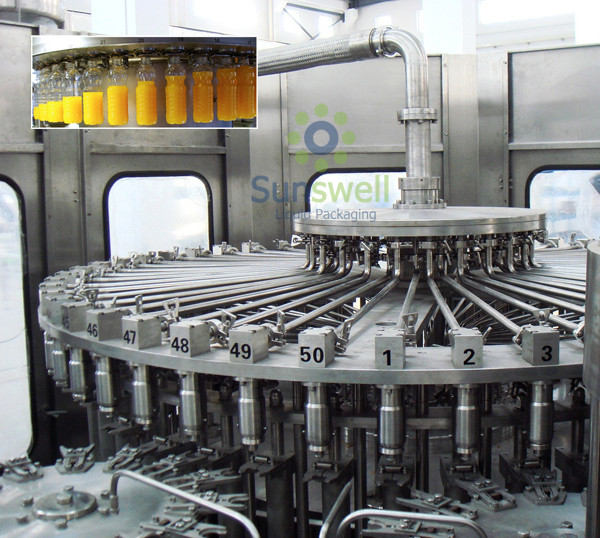

PET bottled automatic hot filling Juice Filling Machine for Apple, Orange Juice Plant Introduction:
Hot filling machine is the standard 3-in-1 monoblock. But to the special production condition, another sanitizer rinsing could be added, that is 4-in-1 monoblock. The system has fully considered the beverage's characteristics( such as the frothing of the tea drink and mixed juice) and the technical requirement of the hot filling.

PET bottled automatic hot filling Juice Filling Machine for Apple, Orange Juice Plant Technical features:
1, Full filling is to avoid the bottle from sinking after the bottle cooling off, and to decrease the dissolved oxygen to the utmost extent.
2, Reasonable structured storage hopper and material supply system keep the material in the constant flow speed, constant pressure and without frothing. Usually high position tank is adopted.
3, The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.

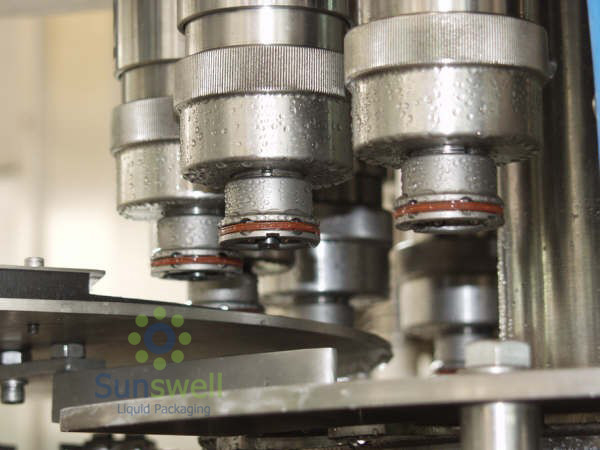

4, Sanitary filling head system is of umbrella structure, high filling speed.
5, Perfect filling temperature control system.
6, Return tank system has the function of supplying the material automatically.
7, Perfect CIP system

PET bottled automatic hot filling Juice Filling Machine for Apple, Orange Juice Plant The complete line includes:
Water treatment system;
Beverage pretreatmentsystem;
Blow molding system;
Filling system;
Downstream packaging system: Labeling machine, packing machine, palletizing system, etc.

Technical Parameters:
Number of Filling Valves 12,16,24, 32, 40, 50, 60, 72,
Filling Speed 2, 000-30, 000BPH (500ml)
Type of Bottles PET Bottles of various shapes
Bottle Height 150-320(mm)
Bottle Diameter φ 50-110(mm)
Filling Temperature Hot Filling
Filling Principle Gravity Filling
Filling Product Apple juice, orange juice, flavored milk, tea drinks, energy drinks, vitamin drinks and etc.
