3-In-1 Automatic Juice Filling Machine 6000BPH / 500ML With Plastic Screw Cap

China 3-In-1 Automatic Juice Filling Machine 6000BPH / 500ML With Plastic Screw Cap supplier

Large Image :  3-In-1 Automatic Juice Filling Machine 6000BPH / 500ML With Plastic Screw Cap

Product Details:

Place of Origin: China
Brand Name: PET ALL
Certification: CE&ISO
Model Number: RCGF18-18-6

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Wooden packing
Delivery Time: 7 days
Payment Terms: T/T, LC,WESTERN UNION
Supply Ability: 100 sets per year
Detailed Product Description


3-In-1 Automatic Juice Filling Machine 6000BPH / 500ML With Plastic Screw Cap



Product Description



3-in-1 filling machine, combined with rinsing, filling and capping. It is innovated and designed in the requirement of non-carbonated energy drinks, juice, tea, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.
Main features
Rinser
Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° Along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.
Rinsing machine adopts Sunswell original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.
Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15 deg; Angle ensures to wash all side of the bottle, and can save the water.

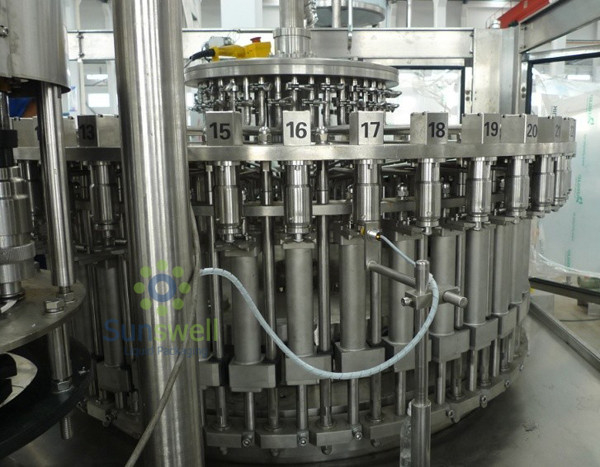

Filler
The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ± 2mm.
The filling valve material is SUS304
The filling system has liquid level automatic control.
Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck, it start to fill.
Bottle is conveying by the wheel in the filling part.
The juice or other hot beverage can be backflow by return tank to control filling temperature.
Capper
Screw capping machine is most precision part in the 3-in-1 machine, it has a big influence to the goods stability and defective rate. Our screw capping has following feature.
Equipment structure
Base
Rotary rinser
Rotary filler
Rotary capper
Bottle infeed and outfeed system
Control
Main configuration
Touch screen: THINGET or Weinview
PLC program controller: Mitsubishi or Omron
Inverter: Mitsubishi or Omron
Photoelectrical controller: Omron
Proximity switch: Omron
Other electrical components: Schneider
Pneumatic component: Airtac
Water pump: Nanfang
Main motor: Siemens
Bearing: Harbin
Technical Parameters
RCGF18-18-6
Rinsing heads: 18
Rinsing water consumption: 1.6T/H
Filling heads: 18
Capping heads: 6
Capability: 6, 000bph (500ml)
Bottle height: 150~310mm
Bottle diameter: 50~100mm
Suitable cap: Plastic Screw Cap
Total power: 5.03kw
Outline: 2750mm * 2000mm * 2300mm
Weight: 3000kg



juice filling machine (Model)

Working capacity

Maximum capacity

RXGF 8-8-6

2000BPH

3000BPH

RXGF14-12-5

4, 000BPH

5, 000BPH

RXGF18-18-6

6, 000BPH

7, 000BPH

RXGF24-24-6

9, 000BPH

10, 000BPH

RXGF32-32-8

12, 000BPH

15, 000BPH

RXGF40-40-10

15, 000BPH

18, 000BPH

RXGF50-50-12

18, 000BPH

20, 000BPH
