Stainless Steel Tea Filling Machine 3-In-1 Monoblock With 7000BPH

Stainless Steel Tea Filling Machine 3-In-1 Monoblock With 7000BPH

    • Stainless Steel Tea Filling Machine 3-In-1 Monoblock With 7000BPH
    • Stainless Steel Tea Filling Machine 3-In-1 Monoblock With 7000BPH
  • Stainless Steel Tea Filling Machine 3-In-1 Monoblock With 7000BPH

    Product Details:

    Place of Origin: China
    Brand Name: sunswell
    Certification: CE&ISO
    Model Number: RXGF16-16-5

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Wooden packing
    Delivery Time: 7 days
    Payment Terms: T/T, LC,WESTERN UNION
    Supply Ability: 100 sets per year
    Contact Now
    Detailed Product Description
    Type:: Filling Machine Condition:: New
    Application:: Beverage, Commodity, Food, Medical, T Voltage:: 220V/380V
    Certification:: CE ISO Filling Material:: Tea Powder



    Stainless Steel Tea Filling Machine 3-In-1 Monoblock With 7000BPH

    General description

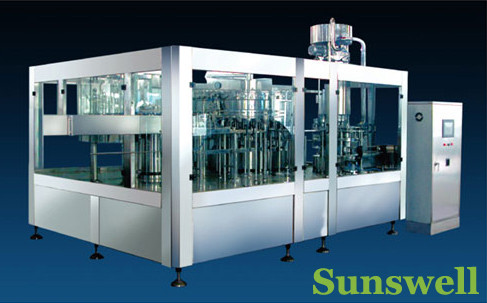

    3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of non-carbonated energy drinks, juice, tea, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.



    Main features

    1. Bottle infeed

    Bottle infeed by combination of infeed starwheels.

    Equipped with bottle jam protection device.



    2. Rinser

    Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.



    Rinsing machine adopts Sunswell original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.



    Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15° angle ensures to wash all side of the bottle, and can save the water.



    3. Transfer starwheel



    Made of stainless steel of superior quality.

    Equipped with bottle jam protection device.



    4. Filler

    The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ±2mm.

    The filling valve material is SUS304

    The filling system has liquid level automatic control.

    Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck ,it start to fill.

    Bottle is conveying by the wheel in the filling part.

    The juice or other hot beverage can be backflow by return tank to control filling temperature.



    5. Capper

    Screw capping machine is most precision part in the 3-1 machine, it has a big influence to the goods stability and defective rate. our screw capping has following feature.



    1) Sunswell import of advanced technology of screw capping, improve the stability and reliability of the screw capping machine. The magnetic torque is used for screw capping. the power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.



    2) In the screw capping part. it installed photoelectrical control , when it has no cap ,or the cap is bad, the machine will stop automatically.



    Output bottle star wheel part

    Nylon wheel and conveyor belt cooperate output the bottle.



    Output bottle conveyor belt part

    Conveyor motor use frequency control of motor speed, which keep pace with the 3-1 machine. Prevent overturned bottle



    Rack part

    Rack is welded by high quality carbon steel, Antirust processing and spray surface. The surface is covered by the SUS304.



    Electronic control system part

    The electronic components like PLC and transducer are from Mitsubishi, Omron, etc., The pneumatic devices are also from international famous brand.



    4. Equipment structure

    Base

    Rotary rinser

    Rotary filler

    Rotary capper

    Bottle infeed and outfeed system

    Control



    Main configuration



    l  Touch screen: Pro-face

    l  PLC program controller: Mitsubishi

    l  Inverter: Mitsubishi

    l  Photoelectrical controller: Banner

    l  Proximity switch: Turck

    l  Other electrical components: Siemens

    l  Pneumatic component: Festo

    l  Main motor: ABB



    Technical Parameters



    Model: RXGF16-16-5



    l  Number of working positions: rinser 16, filler 16, capper 5



    l  Rated capacity: 7,000BPH (500ml)



    l  Air supply pressure: 0.7MPa



    l  Air consumption: 0.8M3/min



    l  Rinsing water pressure: 0.2-0.25 MPa



    l  Consumption of rinsing water: 1.2 tons/hr.



    l  Way of filling: gravity filling



    l  Main motor power: 2.2KW



    l  Installed power: 3.5KW



    l  Dimension: 2780*2080*2700mm (L*W*H)



    l  Weight: 4200Kg
