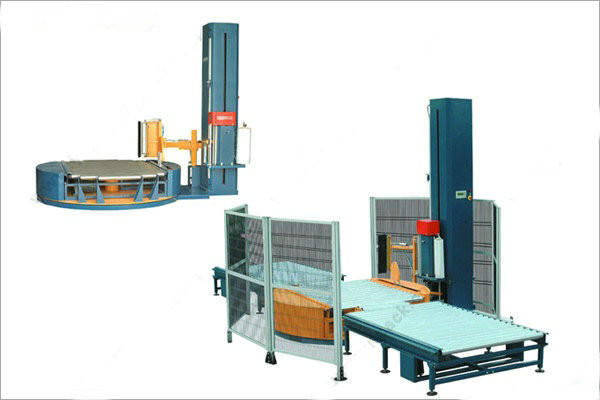

Automatic pallet stretch wrappers shrink packaging equipment for industries Liquid food

Automatic pallet stretch wrappers shrink packaging equipment for industries Liquid food

    • Automatic pallet stretch wrappers shrink packaging equipment for industries Liquid food
    • Automatic pallet stretch wrappers shrink packaging equipment for industries Liquid food
    • Automatic pallet stretch wrappers shrink packaging equipment for industries Liquid food
  • Automatic pallet stretch wrappers shrink packaging equipment for industries Liquid food

    Product Details:

    Place of Origin: China
    Brand Name: Sunswell
    Certification: CE, ISO, SGS, UL
    Model Number: CRJ

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Seaworthy Wooden Case
    Delivery Time: 30 days
    Payment Terms: T/T, L/C
    Supply Ability: 100 sets per year
    Contact Now
    Detailed Product Description

    Automatic pallet stretch wrappers shrink packaging equipment for industries Liquid food



    Specifications:

    Model

    CRJ

    Max. load size (mm)

    500-1300 mm(L)*500-1300 mm (W) *1800mm(H)

    Turntable diameter

    2000 mm

    Turntable Height

    500 mm

    Turntable weight capacity

    2000kg

    Packing Height

    1800mm (max) tailored on needs

    Machine weight

    1400kg

    Electrics

    220V 50HZ 1Phase

    Turntable speed

    1-12rpm

    Air supply

    0.4-0.6 MPA



    Applications:

    1. Carton box stack film wrapping
    2. Soft drink, liquor (beer, rice wine and alcohol, etc.)
    3. Liquid food (edible oil, vinegar and soy sauce, etc.)
    4. Daily commodities (detergent, shampoo and so on)



    To meet the packing requirement of containerization storage, transportation and mechanical loading and unloading, the automatic pallet stretch wrappers are widely used in export and industries such as beverage and food stuff, can making, paper making, dye, plastic and chemicals, glass, pottery and porcelain, and electromechanical castings to lower packing cost, increase product efficiency, prevent the goods from dusts and dampness and to protect the goods against damage during transportation.



    Features

    Control System
    - OMRON PLC Programmable Logic Controller
    - Separate Carriage Up-Down Speed Control
    - Auto-Height Load Height Sensing
    - Electronic Film Tension Control
    - Conveyor Jog (for each conveyor)
    - Dust-tight Precious Metal Slip-ring for long reliable service
    - Additional Controls may be required



    Table Drive &Support
    - 0-15 RPM Variable Table Speed (Higher Speeds Available Where Required)
    - Adjustable Soft-Start Soft Stop
    - Table Fully fenced for Greater Personnel Safety



    Turntable Conveyor
    - Heavy structural steel Frame construction
    - Heavy duty Bearing Roller Support
    - Soft-Start, Soft-Stop
    - Different Roller Diameters and Roller Spacing Available for a variety of applications



    Film Delivery System

    - Powered pre-stretch system up to 200% to min film consumption
    - Carriage door opens for effortless roll change and thread film
    - Film delivery variable speed by separate DC Drive Motor
    - Film dancer-bar with variable speed output
    - Pre stretch Rate Set to Customers Requirements (200% Std)



    Film Carriage Drive

    - Two heavy duty ANSI #50 Chain Lifts (2)
    - Programmable 3/4" HP Variable Speed AC Drive Motor
    - AC Motor Control Board
    - UHMW-PE Glides on 3/8" CRS Ways (No Maintenance Lifetime Warranty)

    The safety fence is optional and not included in the offer.



    Main Parts List:

    PLC OMRON (JAPAN)
    TRANSDUCER HLP (DENMARK)
    AC CONNECTOR SCHNEIDER (FRANCE)
    URGENT STOP SCHNEIDER (FRANCE)
    PROCES SWITCH SCHNEIDER (FRANCE)
    PHOTOELECTRIC SWITCH OMRON (JAPAN)
    APPROACH SWITCH OMRON (JAPAN)
    REDUCTION WITH GEAR BOX ZIBO (CHINA)
    MOTOR WITH REDUCTION GEAR BOX TYT (TAIWAN, CHINA)
    DC MOTOR (CHINA)
    CONNECTION END PHOENIX (GERMANY)
