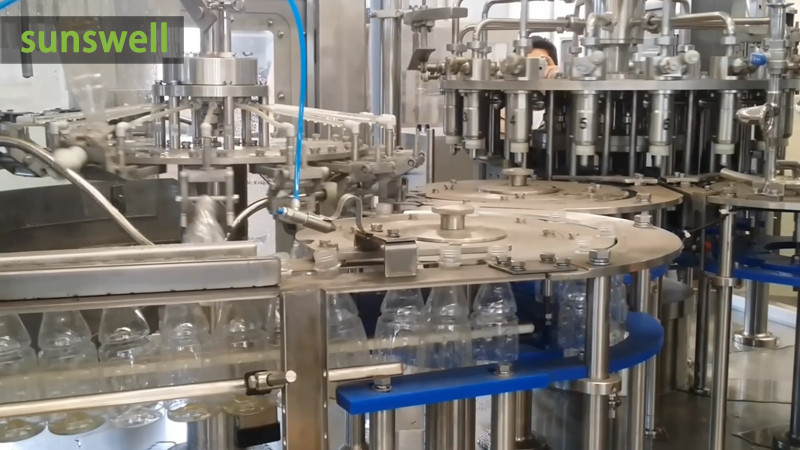

Plastic Bottles Hot Filling Machine Coconut , Juice Filling Machine

Plastic Bottles Hot Filling Machine Coconut , Juice Filling Machine

Plastic Bottles Hot Filling Machine Coconut , Juice Filling Machine

Product Details:

Place of Origin: Jiangsu
Brand Name: SUNSWELL
Certification: CE SGS UL ISO
Model Number: XGF

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: woodern packing suitable for sea shipment
Delivery Time: 7 days
Payment Terms: T/T, LC,WESTERN UNION
Supply Ability: 100 sets per year
Contact Now
Detailed Product Description
Driven Type: Electric Voltage: 220V, 380V, 400V, 415V, 460V, 3PH
After-sales Service Provided: Engineers Available To Service Machinery Overseas Filling Valve Material: Ss316L
Filling Principle: Gravity Filling Machine Body Material: Ss304

Plastic Bottles Hot Filling Machine Coconut , Juice Filling Machine

1. Specifications of Protein beverage filling machine:
Type: BV-7500 (Stable performance)
Capacity: 250ml Base and slim, 250ml base and slim, 6000 cartons/hr
Suitable for brick-shaped carton packages
Filling: Pure milk, plant protein drinks and various still beverages.

2. Product Description of filling machine:
We are leading manufacturer off Aseptic brick-shape carton filling machine and package material. The machine is based on the introduction of foreign technology, combined with our years of manufacturing experience. The machine combines filling and capping, with scientific and rational design, beautiful shape. It is Easy in maintenance, with high automation.


3. Composition of filling machine:
Machine is divided into seven main parts:
1) Filler
2) Pressure Capping part
3) Worktable and transmission parts
4) Backflow system
5) Electrical, pneumatic parts
6) Centralized lubricating
7) Pipelines,


4. And our filling machine has many advantages than other machine:
1) Easy in operation & maintenance.
2) Stable performance.
3) Long life span.
4) Advanced technology.


5. Main imported elements of the machine:
No. Name Supplier Origin
1 PLC Mitsubishi Japan
2 Touching screen PWS6A00T-P Japan
3 Electricity switch Moeller French
4 Control valve Germany
5 sensor SICK Germany
6 dynamo ABB Sweden
7 Water pump CALPEDA Italy
8 Pneumatic control parts FESTOCAMOZZI Germany
9 XMTG OMRON Japan



Specifications

Automatic 3 In 1 Hot Filling Machine
1) 3000-36000BPH
2) Rinsing-filling-capping 3 in 1



TECHNIQUE PARAMETER



XGF-3000

XGF-12000

XGF-15000

XGF-18000

XGF-24000

Productivity

1500-4000 BPH

3000-12000 BPH

4000-18000 BPH

6000-18000 BPH

8000-24000

BPH

Rinsing Head

18

24

32

40

50

Filling Head

12

24

32

40

50

Capping Head

6

8

10

12

15

Bottle Volume

350ml~2000ml±10ml

350ml~2000ml±10ml

350ml~2000ml±10ml

350ml~2000ml±10ml

350ml~

2000ml

±10ml

Bottle Diameter

φ50-90 mm

φ50-90 mm

φ50-90 mm

φ50-90 mm

φ50-90mm

Bottle Height

150-310 mm

150-310 mm

150-310 mm

150-310 mm

150-310 mm

Filling Tolerance

±2%

±2%

±2%

±2%

±2%

Cap Size

28mm and 30mm PE Standard Caps

28mm and 30mm PE Standard Caps

28mm and 30mm PE Standard Caps

28mm and 30mm PE Standard Caps

28mm and 30mm PE Standard Caps

Air Pressure

0.5 MPa

0.5 MPa

0.5 MPa

0.6 MPa

0.5 MPa

Air Consumption

500 L/min

500 L/min

500 L/min

500 L/min

500 L/min

Filling Water Consumption

1.5 m3/h

6 m3/h

7.5 m3/h

9 m3/h

9 m3/h

Rinsing Water Consumption

0.5 m3/h

2 m3/h

2.5 m3/h

3 m3/h

3 m3/h

Motor Power

3.5kW

4kW

7.5kW

7.5kW

7.5kW

Voltage

380V

380V

380V

380V

380V

Dimension

(L×W×H) 2700×1600×2750

mm

(L×W×H) 3200×2150×3100

mm

(L×W×H) 3820×3000×3250

mm

(L×W×H) 4070×3200×3250

mm

(L×W×H) 4950×3850

×3250mm

Weight

2500kg

5300kg

8000kg

12000kg

13000kg

Filling Principle

Gravity Filling

Gravity Filling

Gravity Filling

Gravity Filling

Gravity Filling





Quick Details

Type:

Filling Machine

Condition:

New

Application:

Beverage

Packaging Type:

Bottles

Packaging Material:

Metal

Automatic Grade:

Automatic

Driven Type:

Electric

Power:

about7.5kw

Place of Origin:

Jiangsu China (Mainland)

Brand Name:

Sunswell

Model Number:

XGF Hot Filling Machine

Material:

304/316 Stainless Steel

Product:

Juice, tea & soft drink

Speed:

3000-36000 BPH

Principle:

Gravity Hot Filling Machine



Packaging & Delivery

Packaging Detail:

wooden cases

Delivery Detail:

45-60days
