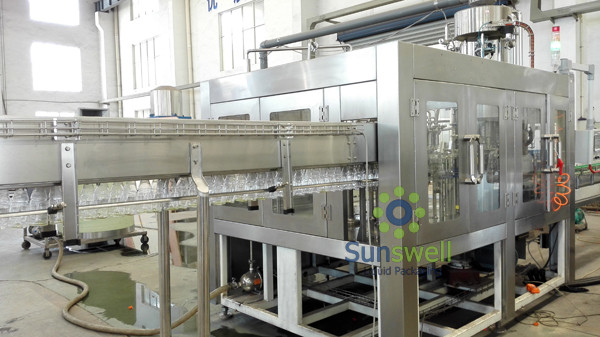

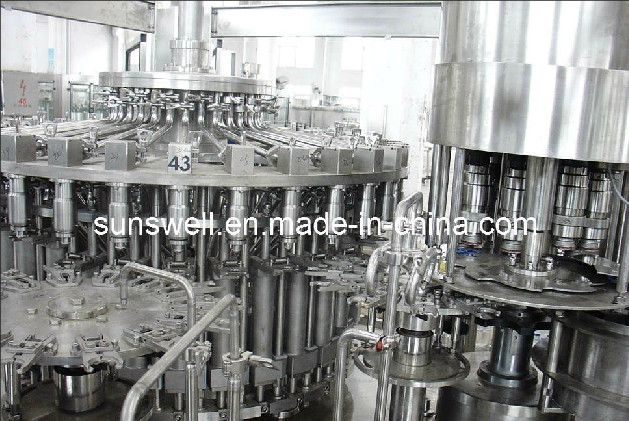

Automatic PLC Hot Fruit Liquid Filling Machine High Capacity

Automatic PLC Hot Fruit Liquid Filling Machine High Capacity

    • Automatic PLC Hot Fruit Liquid Filling Machine High Capacity
    • Automatic PLC Hot Fruit Liquid Filling Machine High Capacity
  • Automatic PLC Hot Fruit Liquid Filling Machine High Capacity

    Product Details:

    Place of Origin: Jiangsu
    Brand Name: SUNSWELL
    Certification: CE SGS UL ISO
    Model Number: XGF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: woodern packing for sea shipment
    Delivery Time: 7 days
    Payment Terms: T/T, LC,WESTERN UNION
    Supply Ability: 100 sets per year
    Contact Now
    Detailed Product Description
    Packaging Type: Cans, Bottles, Barrel, Pouch Packaging Material: Wood
    Automatic Grade: Automatic Driven Type: Electric
    Power: 2.2kw~19w Weight: 2500kg

    Automatic PLC Hot Fruit Liquid Filling Machine High Capacity

    Product Description:



    This machine can meet all the technical requirements for hot drink filling below 95.All filling valves and beverage conducting pipes can be cleaned,and the automatic washing interface CIP is dasigned in the machine.
    Before capping the Rowater washing device is used to wash the bottle mouth to keep mould away from the bottle mouth.

    Magnetic torque is used for screw capping,the power og screw capping can be adjusted step-less,Constant power can be used to screw the plastic caps.
    The human-machine-interface touch-screen,the most advanced PLC control and frequency changing technologies are used in this machine.





    Characteristics:



    1.The machine adopts advanced photoelectricity to detect runnning status.No bottle no filling



    2.Bottle is entered by air conveyor,the speed of bottle entering is fast and bottle shape isn't changed because of adopting hanging clamping bottleneck way.



    3.Adopting clamping bottleneck way to wash bottle mouth and avoid touching screw mouth.

    When bottle type changes,you need to change the board related with bottle diameter.



    4.Filling adopts cylinder feeding structure,filling valve adopts high filling speed and mass flow rate valve which control liquids level accurately and without loss.



    5.The capping system applies advanced French technology,when clamp the cap will screw immediately and magnetic torque type capping head.



    6.The PLC and transducer are chosen from international famous brand,such as OMRON,

    MITSUBISHI and so on.



    We can provide production line as below:

    1. Drinking mineral water complete production line.
    2. Fruit juice/milk complete production line.
    3. Carbonated beverage complete production line.
    4. 3 Gallons and 5 Gallons bottle water complete production line.
    5. Wine/alcohol filling, labeling, packaging production line.



    Specifications

    Automatic 3 In 1 Hot Filling Machine
    1) 3000-36000BPH
    2) Rinsing-filling-capping 3 in 1





    TECHNIQUE PARAMETER



    XGF-3000

    XGF-12000

    XGF-15000

    XGF-18000

    XGF-24000

    Productivity

    1500-4000 BPH

    3000-12000 BPH

    4000-18000 BPH

    6000-18000 BPH

    8000-24000

    BPH

    Rinsing Head

    18

    24

    32

    40

    50

    Filling Head

    12

    24

    32

    40

    50

    Capping Head

    6

    8

    10

    12

    15

    Bottle Volume

    350ml~2000ml±10ml

    350ml~2000ml±10ml

    350ml~2000ml±10ml

    350ml~2000ml±10ml

    350ml~

    2000ml±

    10ml

    Bottle Diameter

    φ50-90 mm

    φ50-90 mm

    φ50-90 mm

    φ50-90 mm

    φ50-90 mm

    Bottle Height

    150-310 mm

    150-310 mm

    150-310 mm

    150-310 mm

    150-310 mm

    Filling Tolerance

    ±2%

    ±2%

    ±2%

    ±2%

    ±2%

    Cap Size

    28mm and 30mm PE Standard Caps

    28mm and 30mm PE Standard Caps

    28mm and 30mm PE Standard Caps

    28mm and 30mm PE Standard Caps

    28mm and 30mm PE Standard

    Caps

    Air Pressure

    0.5 MPa

    0.5 MPa

    0.5 MPa

    0.6 MPa

    0.5 MPa

    Air Consumption

    500 L/min

    500 L/min

    500 L/min

    500 L/min

    500 L/min

    Filling Water Consumption

    1.5 m3/h

    6 m3/h

    7.5 m3/h

    9 m3/h

    9 m3/h

    Rinsing Water Consumption

    0.5 m3/h

    2 m3/h

    2.5 m3/h

    3 m3/h

    3 m3/h

    Motor Power

    3.5kW

    4kW

    7.5kW

    7.5kW

    7.5kW

    Voltage

    380V

    380V

    380V

    380V

    380V

    Dimension

    (L×W×H) 2700×1600×2750

    mm

    (L×W×H) 3200×2150×3100

    mm

    (L×W×H) 3820×3000×3250

    mm

    (L×W×H) 4070×3200×3250

    mm

    (L×W×H) 4950×3850

    ×3250mm

    Weight

    2500kg

    5300kg

    8000kg

    12000kg

    13000kg

    Filling Principle

    Gravity Filling

    Gravity Filling

    Gravity Filling

    Gravity Filling

    Gravity Filling




    Quick Details

    Type: Filling Machine Condition: New Application: Beverage
    Packaging Type: Bottles Packaging Material: Metal Automatic Grade: Automatic
    Driven Type: Electric Power: about7.5kw Place of Origin: Jiangsu China (Mainland)
    Brand Name: Sunswell Model Number: XGF Hot Filling Machine Material: 304/316 Stainless Steel
    Product: Juice, tea & soft drink Speed: 3000-36000 BPH Principle: Gravity Hot Filling Machine



    Packaging & Delivery

    Packaging Detail: wooden cases
    Delivery Detail: 45-60days
