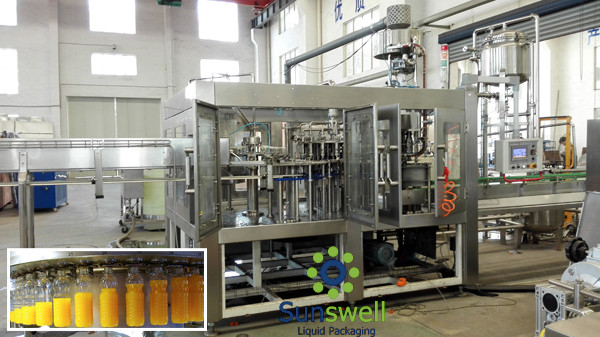

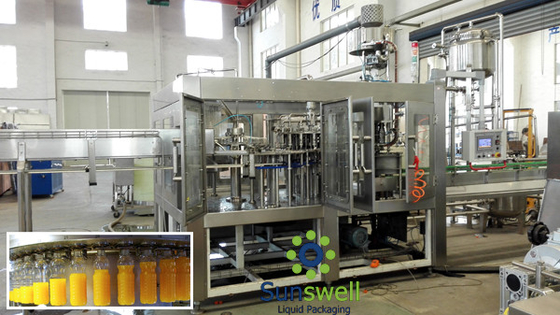

3 In 1 Juice Filling Machine Automatic With Water Treatment Line

Basic Information
Place of Origin: China
Brand Name: PET ALL
Certification: CE&ISO
Model Number: RCGF18-18-6
Minimum Order Quantity: 1
Packaging Details: Wooden packing
Delivery Time: 7 days
Payment Terms: T/T, LC,WESTERN UNION
Supply Ability: 100 sets per year


3 In 1 Juice Filling Machine Automatic With Water Treatment Line







Filling machine:

 The equipment is used in production of non-soda drink of mineral-pure water packed in polyester bottles. Washing, filling and capping are integrated in one machine.

  The most advanced technology from Japan and Germany is employed in the design. The gravity fixed liquid surface normal pressure filling is used. The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided.

  Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180~ along the conveying rail. There is once time of internal and external washing, the efficiency of bottle washing is high.

  The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.

  The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.

  The frequency changing technology is used to adjust the operation speed steplessly. The production capacity can be displayed digitally and can be adjusted conveniently.



Advantages:

1). It conveys bottle though clamping the bottle mouth, which is convenient for switching between different capacities of bottles

2). Precise control bottling fluid level, powerfully preveb air bubble

3). Sanitary class circulating pipe assures the temperature when bottling

4). Capping and clamping technology



Work Process:

The equipment conveys bottle to the star-wheel drive l through bottle feeding flue, and then to the bottle clamping mechanism of washing machine, the bottle clamping mechanism holds the bottle neck and overturns for washing the inside and outside walls of the bottle along the guide rail of washing machine, the washed and dry bottle is conveyed to the star-wheel drive ll, and then to the bottling machine through the star-wheel drive lll, the bottle clamp plate may hold the bottle neck and open the bottling value for bottling the machine along the guide rail, after bottling, the bottle is delivered to the capping machine through star-wheel drive IV and star-wheel drive V., the bottle clamping plate of the capping machine holds the bottle neck for capping, finally, the well capped beverage bottle is conveyed to the conveying chain though star-wheel drive VI, finish washing, bottling and capping.



juice filling machine (Model)

Working capacity

Maximum capacity

RXGF 8-8-6

2000BPH

3000BPH

RXGF14-12-5

4, 000BPH

5, 000BPH

RXGF18-18-6

6, 000BPH

7, 000BPH

RXGF24-24-6

9, 000BPH

10, 000BPH

RXGF32-32-8

12, 000BPH

15, 000BPH

RXGF40-40-10

15, 000BPH

18, 000BPH

RXGF50-50-12

18, 000BPH

20, 000BPH
