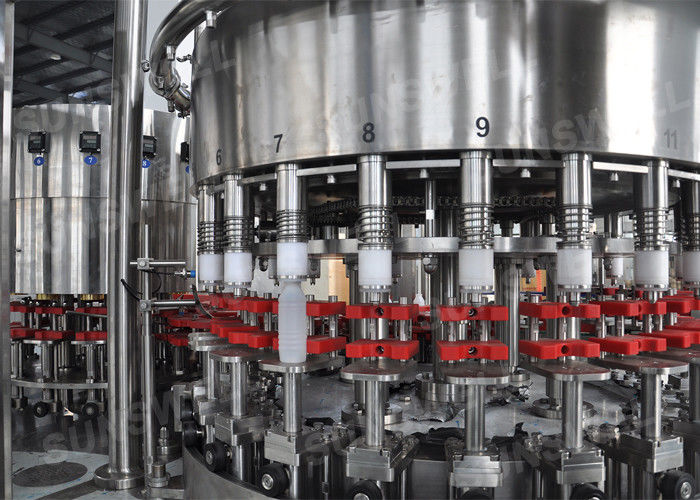

Plastic Bottle Hot Filling Machine Automatic For Fruit Juice Filling

Plastic Bottle Hot Filling Machine Automatic For Fruit Juice Filling

    • Plastic Bottle Hot Filling Machine Automatic For Fruit Juice Filling
    • Plastic Bottle Hot Filling Machine Automatic For Fruit Juice Filling
  • Plastic Bottle Hot Filling Machine Automatic For Fruit Juice Filling

    Product Details:

    Place of Origin: Jiangsu
    Brand Name: SUNSWELL
    Certification: CE& ISO& UL& SGS
    Model Number: xgf

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: woodern packing suitable for sea shipment
    Delivery Time: 7 days
    Payment Terms: T/T, LC,WESTERN UNION
    Supply Ability: 100 sets per year
    Contact Now
    Detailed Product Description
    Type:: Filling Machine Condition:: New
    Application:: Beverage Packaging Type:: Bottles
    Driven Type:: Electric Voltage:: 220v/380v

    Plastic Bottle Hot Filling Machine Automatic For Fruit Juice Filling

     Hot Filling Machine Introduction:
    Hot filling machine is the standard 3-in-1 monoblock. But to the special production condition, another sanitizer rinsing could be added, that is 4-in-1 monoblock. The system has fully considered the beverage's characteristics( such as the frothing of the tea drink and mixed juice) and the technical requirement of the hot filling.

    Hot Filling Machine features:
    1, Full filling is to avoid the bottle from sinking after the bottle cooling off, and to decrease the dissolved oxygen to the utmost extent.
    2, Reasonable structured storage hopper and material supply system keep the material in the constant flow speed, constant pressure and without frothing. Usually high position tank is adopted.
    3, The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.
    4, Sanitary filling head system is of umbrella structure, high filling speed.
    5, Perfect filling temperature control system.
    6, Return tank system has the function of supplying the material automatically.
    7, Perfect CIP system

    Hot Filling Machine complete line includes:
    Water treatment system;
    Beverage pretreatmentsystem;
    Blow molding system;
    Filling system;
    Downstream packaging system: Labeling machine, packing machine, palletizing system, etc.



    Technical Parameters:
    Number of Filling Valves 12,16,24, 32, 40, 50, 60, 72,
    Filling Speed 2, 000-30, 000BPH (500ml)
    Type of Bottles PET Bottles of various shapes
    Bottle Height 150-320(mm)
    Bottle Diameter φ 50-110(mm)
    Filling Temperature Hot Filling
    Filling Principle Gravity Filling
    Filling Product Apple juice, orange juice, flavored milk, tea drinks, energy drinks, vitamin drinks and etc.



    Plastic Bottle Hot Filling Machine Automatic For Fruit Juice Filling



    Plastic Bottle Hot Filling Machine Automatic For Fruit Juice Filling
