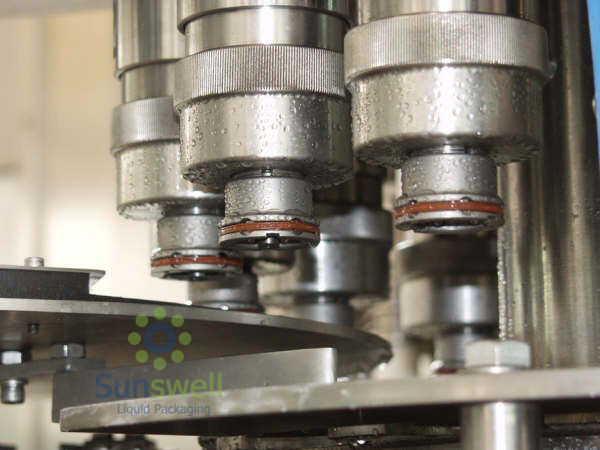

Bottled Heat-resistant Hot Filling Machine , Juice Drink Production Line

Bottled Heat-resistant Hot Filling Machine , Juice Drink Production Line

    • Bottled Heat-resistant Hot Filling Machine , Juice Drink Production Line
    • Bottled Heat-resistant Hot Filling Machine , Juice Drink Production Line
    • Bottled Heat-resistant Hot Filling Machine , Juice Drink Production Line
    • Bottled Heat-resistant Hot Filling Machine , Juice Drink Production Line
  • Bottled Heat-resistant Hot Filling Machine , Juice Drink Production Line

    Product Details:

    Place of Origin: Jiangsu
    Brand Name: SUNSWELL
    Certification: CE SGS UL ISO
    Model Number: XGF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: woodern packing suitable for sea shipment
    Delivery Time: 7 days
    Payment Terms: T/T, LC,WESTERN UNION
    Supply Ability: 100 sets per year
    Contact Now
    Detailed Product Description
    Type:: Filling Machine Condition:: New
    Application:: Beverage Packaging Type:: Bottles
    Driven Type:: Electric Certification:: CE

    Bottled Heat-resistant Hot Filling Machine , Juice Drink Production Line

    We can provide production line as below:
    1. Drinking mineral water complete production line.
    2. Fruit juice/milk complete production line.
    3. Carbonated beverage complete production line.
    4. 3 Gallons and 5 Gallons bottle water complete production line.
    5. Wine/alcohol filling, labeling, packaging production line.


    Feature

    • Use to fill PET heat-resistant bottle for fruit juice, tea and other high-temperature filling drinks.

    • The core parts of machine employs PLC+, frequency convertor+ and human-machine interface control technology

    • Strong network communication function can be connected to UHT, CIP control center and bottle-invert sterilizer

    • They machine applies separater parts yet unified construction, direct connection between driving system and main drive axes, providing ore stability.

    • Suspension-system and neck-catching construction ensure convenience of various bottle type interchange

    • Safe protective devices ensure safety of operator and machine

    • Magnetic powered cap placement ensures tightness yet prevents bottle damage

    • Specially designed cap installation head utilizes fine interior grooves for holding caps enhancing high ratio of quality control passing rate

    • Slight negative-pressure gravity circumfluence filling system increases filling accuracy and reduces contamination

    • Unique control mechanism keeps circumfluence volume below 5%

    • Airtight valve made of non-plastic material prevents worn-out particles from dropping into bottles adversely affecting product quality

    • High efficient clean air filter circulation system ensures high sanitary requirements



    TECHNIQUE PARAMETER



    XGF-3000

    XGF-12000

    XGF-15000

    XGF-18000

    XGF-24000

    Productivity

    1500-4000 BPH

    3000-12000 BPH

    4000-18000 BPH

    6000-18000 BPH

    8000-24000

    BPH

    Rinsing Head

    18

    24

    32

    40

    50

    Filling Head

    12

    24

    32

    40

    50

    Capping Head

    6

    8

    10

    12

    15

    Bottle Volume

    350ml~2000ml±10ml

    350ml~2000ml±10ml

    350ml~2000ml±10ml

    350ml~2000ml±10ml

    350ml~

    2000ml

    ±10ml

    Bottle Diameter

    φ50-90 mm

    φ50-90 mm

    φ50-90 mm

    φ50-90 mm

    φ50-90mm

    Bottle Height

    150-310 mm

    150-310 mm

    150-310 mm

    150-310 mm

    150-310 mm

    Filling Tolerance

    ±2%

    ±2%

    ±2%

    ±2%

    ±2%

    Cap Size

    28mm and 30mm PE Standard Caps

    28mm and 30mm PE Standard Caps

    28mm and 30mm PE Standard Caps

    28mm and 30mm PE Standard Caps

    28mm and 30mm PE Standard Caps

    Air Pressure

    0.5 MPa

    0.5 MPa

    0.5 MPa

    0.6 MPa

    0.5 MPa

    Air Consumption

    500 L/min

    500 L/min

    500 L/min

    500 L/min

    500 L/min

    Filling Water Consumption

    1.5 m3/h

    6 m3/h

    7.5 m3/h

    9 m3/h

    9 m3/h

    Rinsing Water Consumption

    0.5 m3/h

    2 m3/h

    2.5 m3/h

    3 m3/h

    3 m3/h

    Motor Power

    3.5kW

    4kW

    7.5kW

    7.5kW

    7.5kW

    Voltage

    380V

    380V

    380V

    380V

    380V

    Dimension

    (L×W×H) 2700×1600×2750

    mm

    (L×W×H) 3200×2150×3100

    mm

    (L×W×H) 3820×3000×3250

    mm

    (L×W×H) 4070×3200×3250

    mm

    (L×W×H) 4950×3850

    ×3250mm

    Weight

    2500kg

    5300kg

    8000kg

    12000kg

    13000kg

    Filling Principle

    Gravity Filling

    Gravity Filling

    Gravity Filling

    Gravity Filling

    Gravity Filling





    Quick Details

    Type:

    Filling Machine

    Condition:

    New

    Application:

    Beverage

    Packaging Type:

    Bottles

    Packaging Material:

    Metal

    Automatic Grade:

    Automatic

    Driven Type:

    Electric

    Power:

    about7.5kw

    Place of Origin:

    Jiangsu China (Mainland)

    Brand Name:

    Sunswell

    Model Number:

    XGF Hot Filling Machine

    Material:

    304/316 Stainless Steel

    Product:

    Juice, tea & soft drink

    Speed:

    3000-36000 BPH

    Principle:

    Gravity Hot Filling Machine



    Packaging & Delivery

    Packaging Detail:

    wooden cases

    Delivery Detail:

    45-60days



    Specifications

    Automatic 3 In 1 Hot Filling Machine
    1) 3000-36000BPH
    2) Rinsing-filling-capping 3 in 1



    Bottled Heat-resistant Hot Filling Machine , Juice Drink Production Line
