Plastic Bottle Hot Filling Machine 3 In 1 For Fruit Juice Processing

China Plastic Bottle Hot Filling Machine 3 In 1 For Fruit Juice Processing supplier

Large Image :  Plastic Bottle Hot Filling Machine 3 In 1 For Fruit Juice Processing

Product Details:

Place of Origin: Jiangsu
Brand Name: SUNSWELL
Certification: CE and ISO9001
Model Number: XGF

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: woodern packing suitable for sea shipment
Delivery Time: 7 days
Payment Terms: T/T, LC,WESTERN UNION
Supply Ability: 100 sets per year
Detailed Product Description
Place Of Origin:: Jiangsu, China (Mainland) Dimension(L*W*H):: 2450*1900*2300 Mm
Capacity:: 7000-8000 BPH Control:: PLC
Filling Type:: Hot Filling Certification:: CE; SGS; ISO

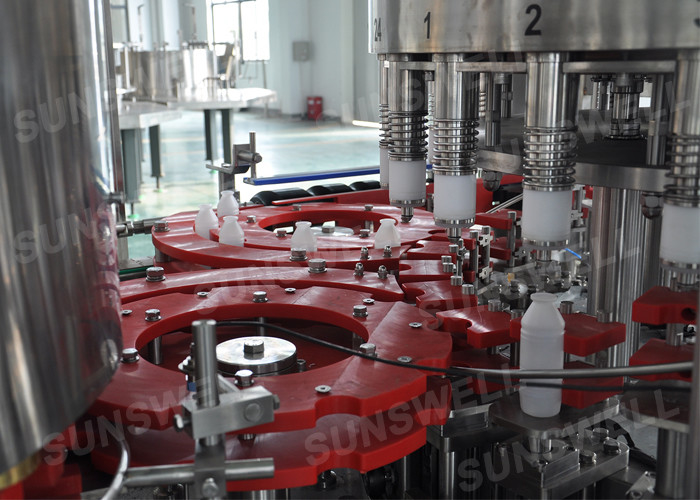

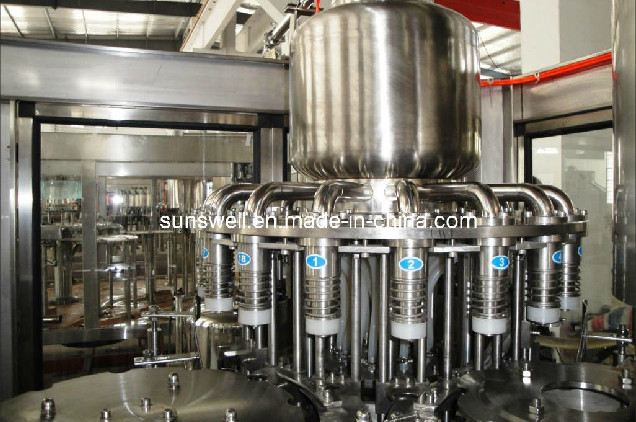

Plastic Bottle Hot Filling Machine 3 In 1 For Fruit Juice Processing

Features:



1)The machine is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic. The machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics.



2)The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.



3) The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machines of the same specifications. The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.



4) It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, On the bases, the filling parts of the machine can be changed into filling methods of lower vacuum.



5)The filling category of lower vacuum (Z type machine) is applicable in glass bottles, filling alcohol, soy and such like materials. The aluminum theft proof cap and plastic cap can be adopted. The machine is an idea-preferred equipment for beverage makers.



We can provide production line as below:

1. Drinking mineral water complete production line.
2. Fruit juice/milk complete production line.
3. Carbonated beverage complete production line.
4. 3 Gallons and 5 Gallons bottle water complete production line.
5. Wine/alcohol filling, labeling, packaging production line.



TECHNIQUE PARAMETER



XGF-3000

XGF-12000

XGF-15000

XGF-18000

XGF-24000

Productivity

1500-4000 BPH

3000-12000 BPH

4000-18000 BPH

6000-18000 BPH

8000-24000

BPH

Rinsing Head

18

24

32

40

50

Filling Head

12

24

32

40

50

Capping Head

6

8

10

12

15

Bottle Volume

350ml~2000ml±10ml

350ml~2000ml±10ml

350ml~2000ml±10ml

350ml~2000ml±10ml

350ml~

2000ml±

10ml

Bottle Diameter

φ50-90 mm

φ50-90 mm

φ50-90 mm

φ50-90 mm

φ50-90mm

Bottle Height

150-310 mm

150-310 mm

150-310 mm

150-310 mm

150-310 mm

Filling Tolerance

±2%

±2%

±2%

±2%

±2%

Cap Size

28mm and 30mm PE Standard Caps

28mm and 30mm PE Standard Caps

28mm and 30mm PE Standard Caps

28mm and 30mm PE Standard Caps

28mm and 30mm PE Standard

Caps

Air Pressure

0.5 MPa

0.5 MPa

0.5 MPa

0.6 MPa

0.5 MPa

Air Consumption

500 L/min

500 L/min

500 L/min

500 L/min

500 L/min

Filling Water Consumption

1.5 m3/h

6 m3/h

7.5 m3/h

9 m3/h

9 m3/h

Rinsing Water Consumption

0.5 m3/h

2 m3/h

2.5 m3/h

3 m3/h

3 m3/h

Motor Power

3.5kW

4kW

7.5kW

7.5kW

7.5kW

Voltage

380V

380V

380V

380V

380V

Dimension

(L×W×H) 2700×1600×2750

mm

(L×W×H) 3200×2150×3100

mm

(L×W×H) 3820×3000×3250

mm

(L×W×H) 4070×3200×3250

mm

(L×W×H) 4950×3850

×3250mm

Weight

2500kg

5300kg

8000kg

12000kg

13000kg

Filling Principle

Gravity Filling

Gravity Filling

Gravity Filling

Gravity Filling

Gravity Filling




Quick Details

Type: Filling Machine Condition: New Application: Beverage
Packaging Type: Bottles Packaging Material: Metal Automatic Grade: Automatic
Driven Type: Electric Power: about7.5kw Place of Origin: Jiangsu China (Mainland)
Brand Name: Sunswell Model Number: XGF Hot Filling Machine Material: 304/316 Stainless Steel
Product: Juice, tea & soft drink Speed: 3000-36000 BPH Principle: Gravity Hot Filling Machine



Packaging & Delivery

Packaging Detail: wooden cases
Delivery Detail: 45-60days



Specifications

Automatic 3 In 1 Hot Filling Machine
1) 3000-36000BPH
2) Rinsing-filling-capping 3 in 1



Plastic Bottle Hot Filling Machine 3 In 1 For Fruit Juice Processing
