Purified Drinking Mineral Water Filling Machines For 3L - 15L Big Bottle Jar

Purified Drinking Mineral Water Filling Machines For 3L - 15L Big Bottle Jar

    • Purified Drinking Mineral Water Filling Machines For 3L - 15L Big Bottle Jar
    • Purified Drinking Mineral Water Filling Machines For 3L - 15L Big Bottle Jar
    • Purified Drinking Mineral Water Filling Machines For 3L - 15L Big Bottle Jar
  • Purified Drinking Mineral Water Filling Machines For 3L - 15L Big Bottle Jar

    Product Details:

    Place of Origin: Jiangsu, China
    Brand Name: Sunswell
    Certification: CE SGS
    Model Number: CGF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wooden case
    Delivery Time: 80 days after receiving down payment
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets/month
    Contact Now
    Detailed Product Description
    Type: Filling Machine After-sales Service Provided: Engineers Available To Service Machinery Overseas
    Material: SUS304/316 Automatic Grade: Automatic
    Driven Type: Electric Voltage: 220V/380V
    Packaging Type: Bottles Packaging Material: Wood
    Condition: New Filling Material: Mineral Water,pure Water,Pure/Mineral Water
    Name: Automatic Liquid Filling Machine Warranty: One Year



    3L-15L Big Bottle Jar Purified Drinking Mineral Water 3-in-1 Monoblock Filling Machine



    Introduction of 5L water filling machine

    CGF series 3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of still water, pure water, RO water, mineral water, sparkling water, etc. in big jars on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.



    Application: still water, pure water, RO water, mineral water, sparkling water, etc.



    Suitable for: 3-15L bottles and jars



    Filling system: gravity filling



    Production capacity: 500BPH-4,000BPH (5L)



    Main Specification

    Touch screen: Mitsubishi, Thinget or Weinview
    PLC program controller: Mitsubishi or Omron
    Inverter: Mitsubishi or Omron
    Photoelectrical controller: AUTONICS
    Other electrical components: Schneider
    Pneumatic component: Airtac
    Pump: Nanfang



    Main Features:



    Bottle infeed

    Bottle infeed by combination of infeed starwheels.

    Bottle filling machine with bottle jam protection device.

    Rinser

    Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.

    Rinsing machine adoptsSunswell original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.

    Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15° angleensures to wash all side of the bottle, and can save the water Automatic pure water filling stations .

    Made of stainless steel of superior quality.

    Bottle filling machine equipped with bottle jam protection device

    filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ±2mm (subject to bottle design).The filling valve material is SUS304.The filling system has liquid level automatic control.Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck,it starts to fill.Bottle is conveying by the wheel in the filling part.

    Capper

    Screw capping machine is most precision part in the 3-1 machine,it has a big influence to the goods stability and defective rate. our screw capping has following feature.

    1)Sunswell import of advanced technology of screw capping,improve the stability and reliability of the screw capping machine. The magnetic torque is used for screw capping. Thepower of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.

    2) In the screw capping part. it installed photoelectrical control , when it has no cap ,or the cap is bad, the machine will stop automatically.

    Output bottle star wheel part

    Nylon wheel and conveyor belt cooperate output the bottle.

    Output bottle conveyor belt part

    Conveyor motor use frequency control of motor speed, which keep pace with the 3-1 machine. Prevent overturned bottle

    Rack part

    Rack is welded by high quality carbon steel, Antirust processing and spray surface. The surface is covered by the SUS304.

    Electronic control system part

    The electronic components like PLC and transducer are from Mitsubishi, Omron,etc.,The pneumatic devices are also from international famous brand.

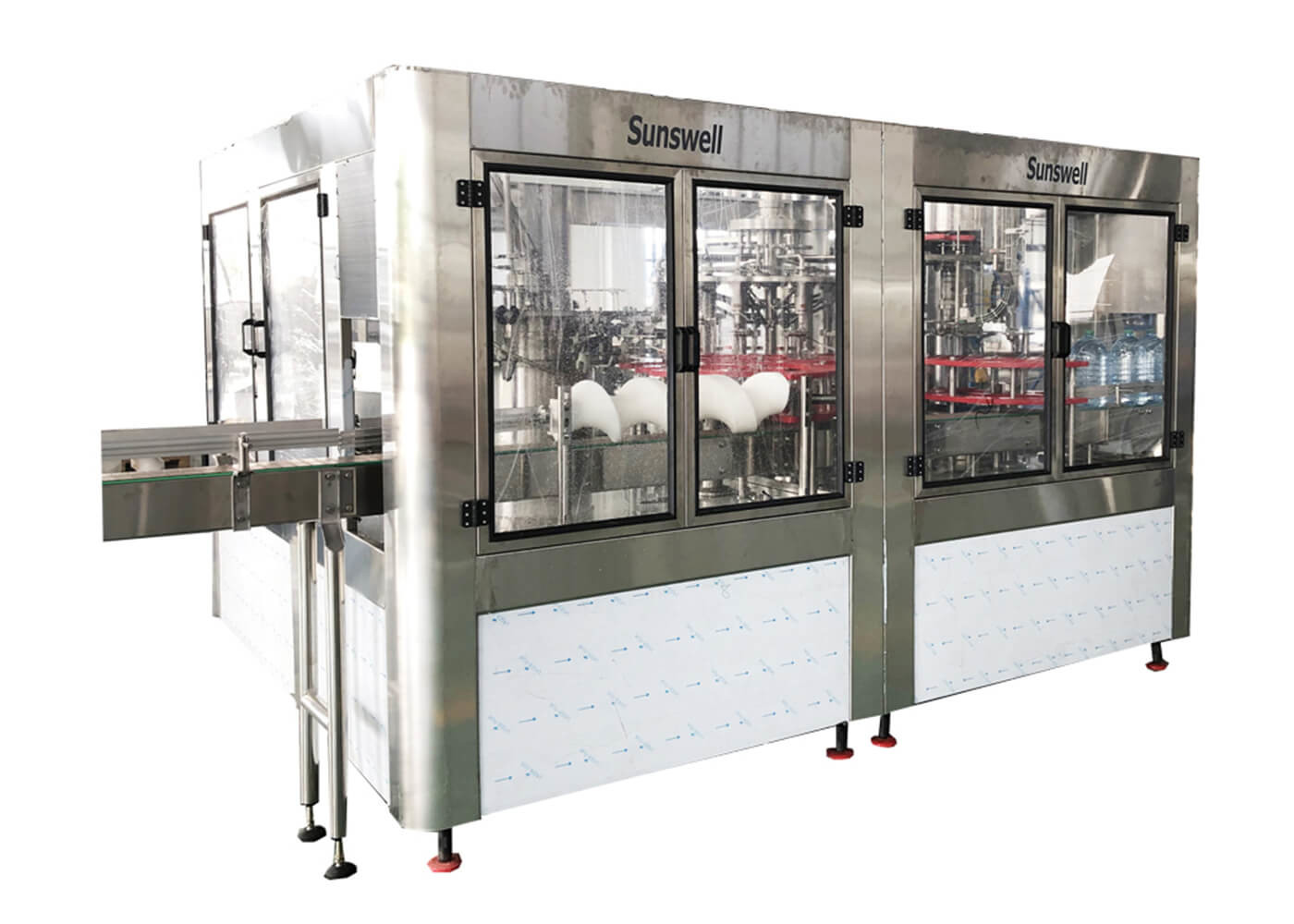

    Purified Drinking Mineral Water Filling Machines For 3L - 15L Big Bottle Jar


    Equipment structure

    l Base

    l Rotary rinser

    l Rotary filler

    l Rotary capper

    l Bottle infeed and outfeed system

    l Control Automatic



    Model Rinsing heads Filling heads Capping heads Capacity[BPH/5L]
    CGF4-4-1 4 4 1 500
    CGF6-6-1 6 6 1 750
    CGF8-8-4 8 8 4 1000
    CGF10-10-5 10 10 5 1200
    CGF16-16-4 16 16 4 2000
    CGF25-25-5 25 25 5 3000
    CGF32-32-6 32 32 6 4000



    Purified Drinking Mineral Water Filling Machines For 3L - 15L Big Bottle Jar
