Monoblock 3-5 Gallon Bottle Water Filling Machines Pure Water Packaging Machine

Monoblock 3-5 Gallon Bottle Water Filling Machines Pure Water Packaging Machine

    • Monoblock 3-5 Gallon Bottle Water Filling Machines Pure Water Packaging Machine
    • Monoblock 3-5 Gallon Bottle Water Filling Machines Pure Water Packaging Machine
  • Monoblock 3-5 Gallon Bottle Water Filling Machines Pure Water Packaging Machine

    Product Details:

    Place of Origin: China
    Brand Name: Sunwell
    Certification: CE,SGS,ISO
    Model Number: XGF-xx-xx

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: Standard export wooden case
    Delivery Time: 45days
    Payment Terms: L/C, T/T
    Supply Ability: 100sets per year
    Contact Now
    Detailed Product Description
    Automatic Grade: Automatic Driven Type: Electric,Pneumatic
    Voltage: 220V/380V Type: Filling Machine
    Material: 316L+304 Stainless Steel Filling Material: Mineral Water,pure Water,Pure/Mineral Water
    After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,Free Spare Parts Warranty: 12 Months

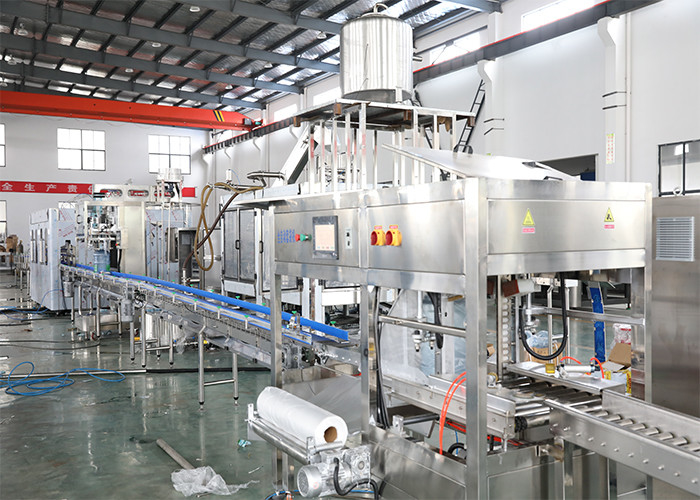

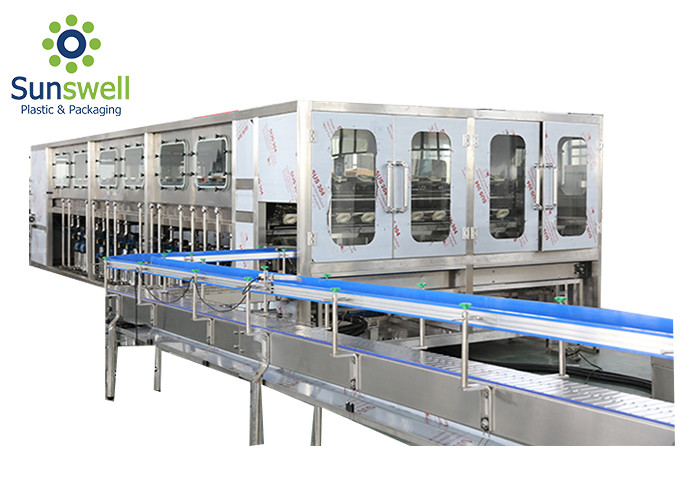

    Monoblock 3-5 Gallon Bottle Water Pure Water Filling Machinery


    General Description:
    The production line can automatically complete cleaning the tub, sterilizing, filling, capping, shrink, bagging and transporting, having functional and compact structure, and simple, it is a mechanical, electrical, gas in one equipment.
    The machine material is stainless steel,resisting corrosion and easy to clean,the main electrial components and gas circuit elements are all of international brand.
    According to the customer's requirement,the machine could be equipped with automatic cap separator,atoumatic leakage inspector,automatic cap loader,shrink wrapper,etc.

    Model QGF-300 QGF-450 QGF-600 QGF-900 QGF-1200 QGF-1500 QGF-2000
    Capacity(bph/5gallon) 300 450 600 900 1200 1500 2000

    Complete Line Flow Chart :

    1.Decapping Machine ; 2.External Brusher ; 3. Automatic 5 Gallon Rinsing Filling Capping Machine ; 4.Cap elevator ;5.Code sprayer ; 6.Light checker ; 7.Cap film shrinker Machine ; 8 .Plastic bag wrapping machine ; 9.Bucket collect



    Description Of Equipment

    1,Cap Decapper
    Automatic decapper is a special equipment for retrieving barrel. It does not damage caps. This machine adopts computer control and its capacity can be adjusted. Cap pulling organism from AIRTAC adopt pneumatic adjustment, which solves the problems of tolerance of barrel height and tolerance of barrel's mouth,and increases cap pulling success greatly.
    Monoblock 3-5 Gallon Bottle Water Filling Machines Pure Water Packaging Machine
    Main parameters
    Decapping head: 3pcs
    Jar size: Ф276×490×Ф56mm
    Capacity: 2,000BPH
    Compressed air: pressure 0.5-0.6Mpa, consumption 400L/hr
    Pneumatic cylinder drive
    Power: 0.75kw
    2,Outer Brusher
    Outer Brusher is a corollary equipment for barrel water line which produces mineral water and pure water. Bottom and outside surface will be cleaned completely. The machine is made of stainless steel,it is anti-corrosion and easy cleanable. Adopt bottle-jamming inspection device to decrease damage rate.It is well designed with reasonable structure and high efficiency, operating stably with highly automation.
    Monoblock 3-5 Gallon Bottle Water Filling Machines Pure Water Packaging Machine
    Main parameters
    Pneumatic components: AirTAC
    AC contactor: Schneider/SIEMENS
    Material: SUS304
    Bearing has good waterproof structure.
    Starwheel motor:Shanghai 0.75kw
    Washing pump: CNP 0.37kw
    3,Bottle Washing Machine
    15 steps for washing: 1-2 steps of hot alkaline water; 3-4 step of recycled water rinsing; 5-7 steps of
    acid water; 8 step of dripping; 9-10 steps of recycled water rinsing; 11 step dripping; 12-14 steps of pure
    water rinsing; 15 step of dripping.
    Disinfectant recycled on side, convenient for sampling and inspection. Each tank has low level alarming device. Chain moving for cleaning. Double-layer board avoids water mixing. High speed filling valves. Adopt chain type pressing caps.
    Monoblock 3-5 Gallon Bottle Water Filling Machines Pure Water Packaging MachineMonoblock 3-5 Gallon Bottle Water Filling Machines Pure Water Packaging Machine
    Main parameters
    Air source:pressure 0.5~0.6Mp,consumption 350L/M
    Structure: transmission controlled by PLC.
    Configuration (lye tank leaves steam joint)
    PLC: MITSUBISHI
    Pump: CNP
    Pneumatic components: AirTAC
    AC contactor: Schneider
    Main motor: Shanghai Bolong
    Equip automatic cap sorting and loading system
    Equipment automatic malfunction protection device
    4,Filling-capping 2-in-1 Monoblock
    1. stainless steel insert type filling nozzle, two times high precision filling, filling volume adjustable.
    2. Water pump is equipped.
    3. Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts
    4. With AIRTAC brand air cylinder, F.R.L. Combination and solenoid valve for air cylinder.
    5. Machine frame and body: all 304 Stainless Steel, combine with clear fiber glass windows
    Monoblock 3-5 Gallon Bottle Water Filling Machines Pure Water Packaging MachineMonoblock 3-5 Gallon Bottle Water Filling Machines Pure Water Packaging Machine
    Main parameters
    Filling head: 8 pcs
    Power supply: 380V 50Hz 3 phase (adjustable )
    Air consumption: 0.5m3/min
    Suitable to Φ270×490 bottle (3,4,5 Gallon Bottle )
    5,Heat Shrinking Machine
    Electrical heating produces hot steam,barrels with full water after light inspecting are sleeved with plastic labels, then they enter steam paths to make plastic labels molding.
    Monoblock 3-5 Gallon Bottle Water Filling Machines Pure Water Packaging Machine
    Main parameters
    Material of machine body and pipeline: 304 Stainless Steel.
    With two thermal inside
    Automatic water lever control
    6.Automatic bagging machine
    Monoblock 3-5 Gallon Bottle Water Filling Machines Pure Water Packaging MachineMonoblock 3-5 Gallon Bottle Water Filling Machines Pure Water Packaging Machine
