Place of Origin: | Jiangsu |
---|---|
Brand Name: | SUNSWELL |
Certification: | CE, ISO |
Model Number: | XGF |
Minimum Order Quantity: | 1 |
Price: | Negotiable |
Packaging Details: | Seaworthy wooden cases plus wrapping film |
Delivery Time: | 50 days |
Payment Terms: | T/T, LC,WESTERN UNION |
Supply Ability: | 100 sets per year |
Product Name: | Drinking/Mineral/Pure Water Rinsing-Filling-Capping Machine | Bottle Type: | PET Plastic Bottle |
---|---|---|---|
Capacity: | 150BPH-2000BPH | Filling Volume: | 18.9L, 19L, 19.9L, 20L |
Filling Principle: | Gravity Filling | Material: | SUS 304/316L |
High Light: | 4 heads plastic bottle filling machine,600BPH plastic bottle filling machine,600BPH automatic bottle filling system |

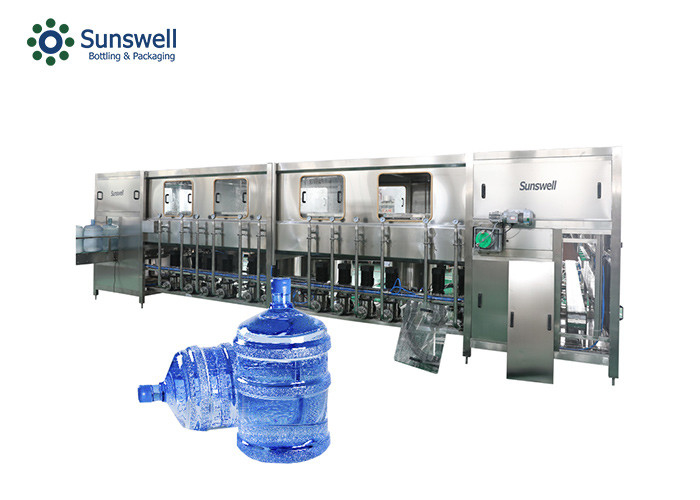

Automatic water filling machine 5 gallon water filling machine big bottle filling machine
The filling line special for 3-5 gallons barreled drinking water,with type of QGF-150,QGF-300,QGF-450,QGF-600,QGF-600,QGF-900,QGF-1200,QGF-1500,QGF-2000.It integrates bottle washing,filling and capping into one unit.In order to chineve the purpose of washing and sterilizing.The washing machine uses multi-washing liquid spray.This thimerosal can be used circularly.The Capping Machine can automatic.This line equips with water spraying device in order to ensure those caps sterile and clean.It also can automatic carry out barrel.Washing,sterilizing,filling capping,counting and products discharging.With complete fuction,modern design and high degree of automation.It is new kind of barreled water auto-producing line,which integrates mechanism,electricity and pneumatic technologies together.
Specifications:
Main technical data | |||||||
Model | QGF-100 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 | QGF-2000 |
Number of filling heads | 1 | 2 | 3 | 4 | 8 | 12 | 16 |
Filling capacity | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
Barrel size (mm) | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 |
Production capacity (b/n) | 100-120 | 200-240 | 300-400 | 600 | 900 | 1200 | 2000 |
Gas pressure (Mpa) | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Gas consumption (m3/min) | 0.37 | 0.6 | 0.6 | 1.2 | 2.2 | 3 | 4.5 |
Motor power(kw) | 1.75 | 3.22 | 4.8 | 8.5 | 8.5 | 8.5 | 8.5 |
Rated voltage (V) | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
Overall dimension (mm) | 3790×650 ×1550 |
3550×800 ×1800 2800×1100 ×1800 |
3550×1200 ×1800 3800×1100 ×1800 |
3650×1500 ×1800 3800×1100 ×1800 |
2200×1860 ×2700 not include cleaning |
2560×2350 ×2750 not include cleaning |
3100×2800 ×2750 not include cleaning |
