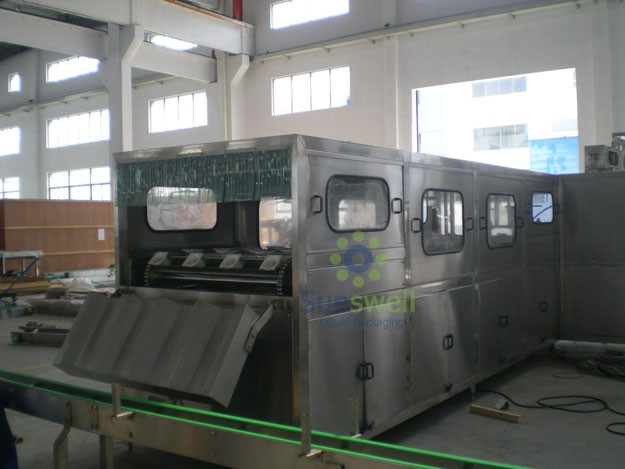

Stainless Steel 5 Gallon Water Filling Machine 2400BPH 300Barrel/Hour With Big Capacity

Stainless Steel 5 Gallon Water Filling Machine 2400BPH 300Barrel/Hour With Big Capacity

Stainless Steel 5 Gallon Water Filling Machine 2400BPH 300Barrel/Hour With Big Capacity

Product Details:

Place of Origin: China
Brand Name: Sunswell
Certification: CE, ISO, SGS, UL
Model Number: TGX-300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Seaworthy Wooden Case
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Contact Now
Detailed Product Description



Stainless Steel 5 Gallon Water Filling Machine 2400BPH 300Barrel/Hour With Big Capacity





Description:

CGF series 3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of still water, pure water, RO water, mineral water, sparkling water, etc. in big jars on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.




Applications:

Still water, pure water, RO water, mineral water, sparkling water, etc. in 3 gallon, 4 gallon and 5 gallon bottles.





Competitive Advantage:

Technical features of 5 gallon water filling machine

  • The machine integrates rinser, filler and capper together.
  • The machine is of stainless steel, resisting corrosion and easy to clean.
  • The main electrical components and gas circuit elements are all of international brand.


Equipment structure of 5 gallon water filling machine

  • Automatic bottle loader
  • Barrel rinser
  • Filler
  • Capper
  • According to the customer’s requirement, the machine could be equipped with automatic cap separator, automatic leakage inspector, barrel washer, automatic cap loader, shrink wrapper, etc.



Specifications:



Model TGX-300
Product capacity 300 barrel/hour
Filling head 2
Equipment size 3400×1420×2000mm
Power supply Main machine (KW) 3.5
Compressed air Air pressure 0.5Mpa
Gas consumption 1.5m3/min
Washing working position

circulating water (2 positions)

pure water (2 positions)

Drip working position: 1 pc
consumption

500-800l/hr
