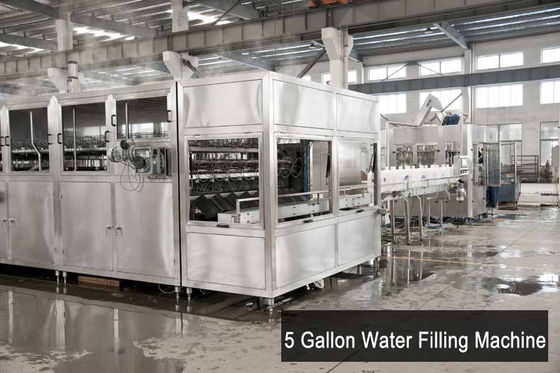

Vacuum 5 Gallon Water Filling Machine Line water dispenser FOR Beer

Basic Infomation
Place of Origin: China
Brand Name: Sunswell
Certification: CE, ISO, SGS, UL
Model Number: TGX-900
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Seaworthy Wooden Case
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year

Vacuum 5 Gallon Water Filling Machine Line water dispenser FOR Beer



TGX-900
Filling heads:6
Volume(L):18.9
Barrel size(mm):270*490
Capacity(b/n):900
Gas pressure(Mpa):0.6
Gas consumption(m*3/min):1.5
Moto power(kw):9.75
Rated voltage(v):380V/50HZ
Weight(kg):3500



Feature:

TGX series 5 gallon filling machine is designed for producing 5 gallon barrel drinking water. There are 8 kinds of machines which can produce 120,300,450,600,  900, 1200 and 2000 5 gallon barrel drinking water per hour. Every machine is consisted of rinser, filler and capper. The rinser has several sprays which can be used as for both clean water rinsing and disinfectant rinsing. The disinfectant can be recycled. The machine also has automatic capping device, and cap rinsing device. The whole production line can automatic feeding barrel, rinsing, sterilizing, filling, capping, counting and output.
TGX -600 barrel production line is specially used for 5 Gallon barrel drinking water. This machine integrates washing/filling/capping into one unit. It is the good ideal for produce the mineral water/distilled water/pure water equipments. Whole machine are adopt the high quality stainless steel, It's erosion proof ability is strong, easy to washing.
Mostly electric components are adopt Siemens, OMRON etc famous company. Electric component adopt import Air TAC famous brand product. The machine is advanced in construction, occupying small area, steady in performance, high in produce efficiency, high in automatization degree. Easy in operation, which integrates machinery, electricity and pneumatics technologies together into one unit full automatic barreling machine.



Specifications:

Model

TGX-
120

TGX-
300

TGX-
450

TGX-
600

TGX-
900

TGX-
1200

Filling heads 1 2 3 4 6 8
Volume(L) 18.9 18.9 18.9 18.9 18.9 18.9
Barrel size(mm) 270*490 270*490 270*490 270*490 270*490 270*490
Capacity(b/n) 120 200 300 450 900 1200
Gas pressure(Mpa) 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.6 0.6
Gas consumption(m*3/min) 0.37 0.37 0.6 0.8 1.5 1.8
Moto power(kw) 1.38 1.75 3.8 3.8 9.75 13.5
Rated voltage(v)

380V/
50HZ

380V/
50HZ

380V/
50HZ

380V/
50HZ

380V/
50HZ

380V/
50HZ

Weight(kg) 680 800 1500 2100 3500


4500
