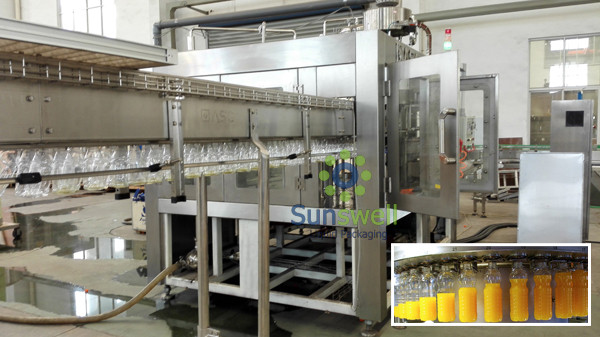

High capacity Monoblock Filling Machine Rotary with PET Bottle

High capacity Monoblock Filling Machine Rotary with PET Bottle

High capacity Monoblock Filling Machine Rotary with PET Bottle

Product Details:

Place of Origin: China
Brand Name: sunswell
Certification: CE&ISO
Model Number: Rcgf50-50-12

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Wooden packing
Delivery Time: 7 days
Payment Terms: T/T, LC,WESTERN UNION
Supply Ability: 100 sets per year
Contact Now
Detailed Product Description
Type: Filling Machine Condition: New
Application: Beverage Packaging Type: Bottles
Packaging Material: Plastic Automatic Grade: Automatic



High capacity Monoblock Filling Machine Rotary with PET Bottle




Main features

Rinser

Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° Along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.

Rinsing machine adopts Sunswell original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.

Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15° Angle ensures to wash all side of the bottle, and can save the water.

Filler

The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ± 2mm.
The filling valve material is SUS304
The filling system has liquid level automatic control.
Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck, it start to fill.
Bottle is conveying by the wheel in the filling part.
The juice or other hot beverage can be backflow by return tank to control filling temperature.

Capper

Screw capping machine is most precision part in the 3-1 machine, it has a big influence to the goods stability and defective rate. Our screw capping has following feature.

Equipment structure

Base
Rotary rinser
Rotary filler
Rotary capper
Bottle infeed and outfeed system
Control

Main configuration

Touch screen: THINGET or Weinview
PLC program controller: Mitsubishi or Omron
Inverter: Mitsubishi or Omron
Photoelectrical controller: Omron
Proximity switch: Omron
Other electrical components: Schneider
Pneumatic component: Airtac
Water pump: Nanfang
Main motor: Siemens
Bearing: Harbin

Technical Parameters

Working position: Rinsing 50, filling 50, capping 12
Rated capacity: 18, 000BPH (500ml) subject to beverage viscosity
Aseptic water rinsing pressure: 0.2-0.25Mpa
Water consumption: 3.6t/hr
Compressed air pressure: 0.7Mpa
Air consumption: 0.8m3/ min
Suitable bottle size: Diameter Φ50~Φ90mm, height 150~310mm
Main motor power: 9.2KW
Total power: 11KW
Overall dimension: 5300× 3800× 2700mm (L × W × H)
Weight: 8500Kg



juice filling machine (Model)

Working capacity

Maximum capacity

RXGF 8-8-6

2000BPH

3000BPH

RXGF14-12-5

4, 000BPH

5, 000BPH

RXGF18-18-6

6, 000BPH

7, 000BPH

RXGF24-24-6

9, 000BPH

10, 000BPH

RXGF32-32-8

12, 000BPH

15, 000BPH

RXGF40-40-10

15, 000BPH

18, 000BPH

RXGF50-50-12

18, 000BPH

20, 000BPH



High capacity Monoblock Filling Machine Rotary with PET Bottle
