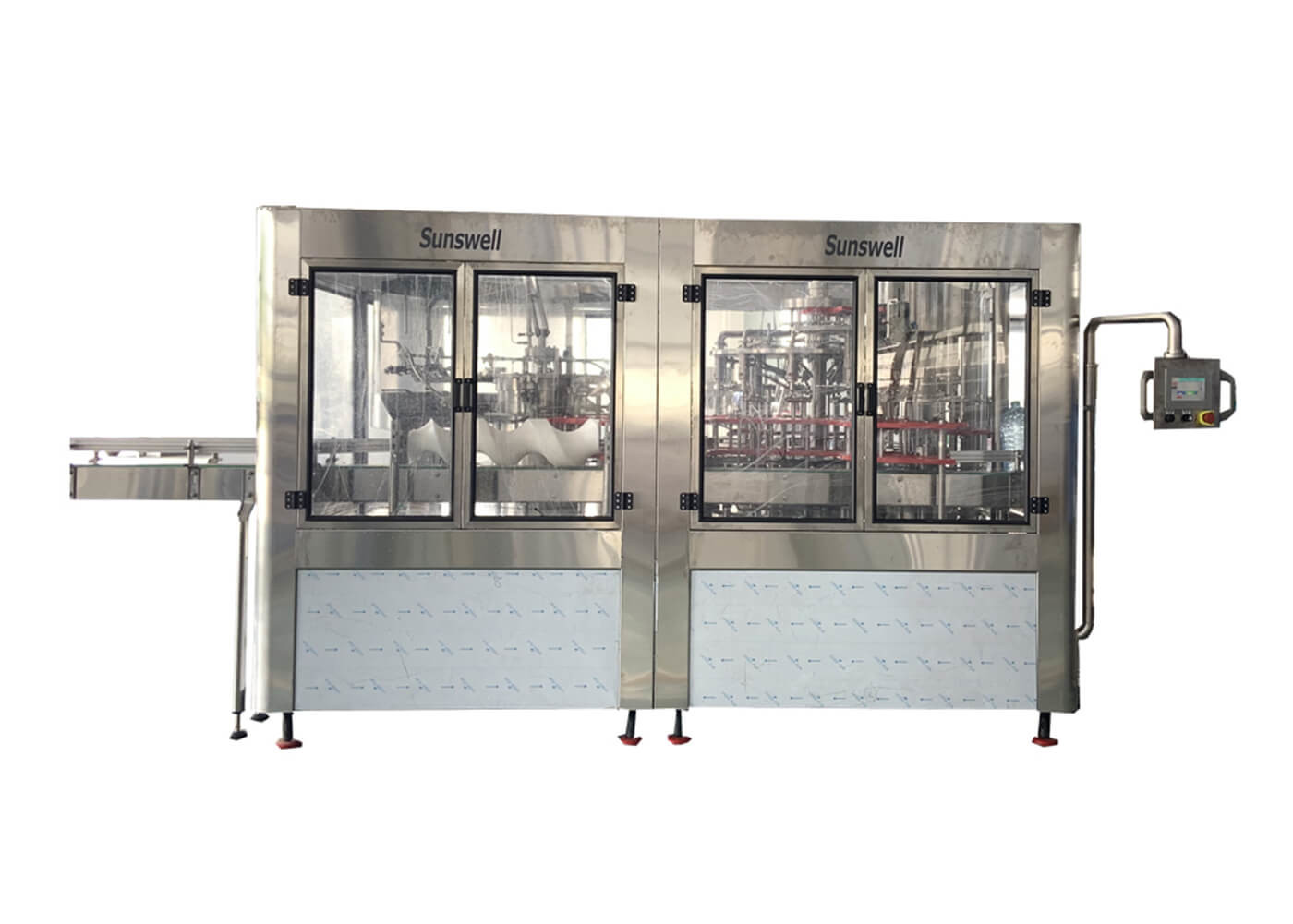

Automatic Drinking Mineral Pure Water Rinser Filler Capper 3-in-1 Monoblock Filling Production Line
Application: still water, pure water, RO water, mineral water, sparkling water, etc.
Suitable for: 3-15L bottles and jars
Filling system: gravity filling
Production capacity: 500BPH-4,000BPH (5L)
Introduction of 5L water filling machine
CGF series 3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of still water, pure water, RO water, mineral water, sparkling water, etc. in big jars on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.
The Rinsing machine connect with empty bottle conveyor frame, when empty bottle input rinsing machine extent, through photoelectrical reaction, Circuit control system command Pneumatic electromagnetic valve movements, let the Clip bottles of cylinder clip the bottle, then the oVERTUrn cylinder operate, the bottleneck turn down, then the pure water pump open, spurt pure water to the bottle, after 30s, stop it, the overturn cylinders reset, input the conveyor system and go to filling machine.

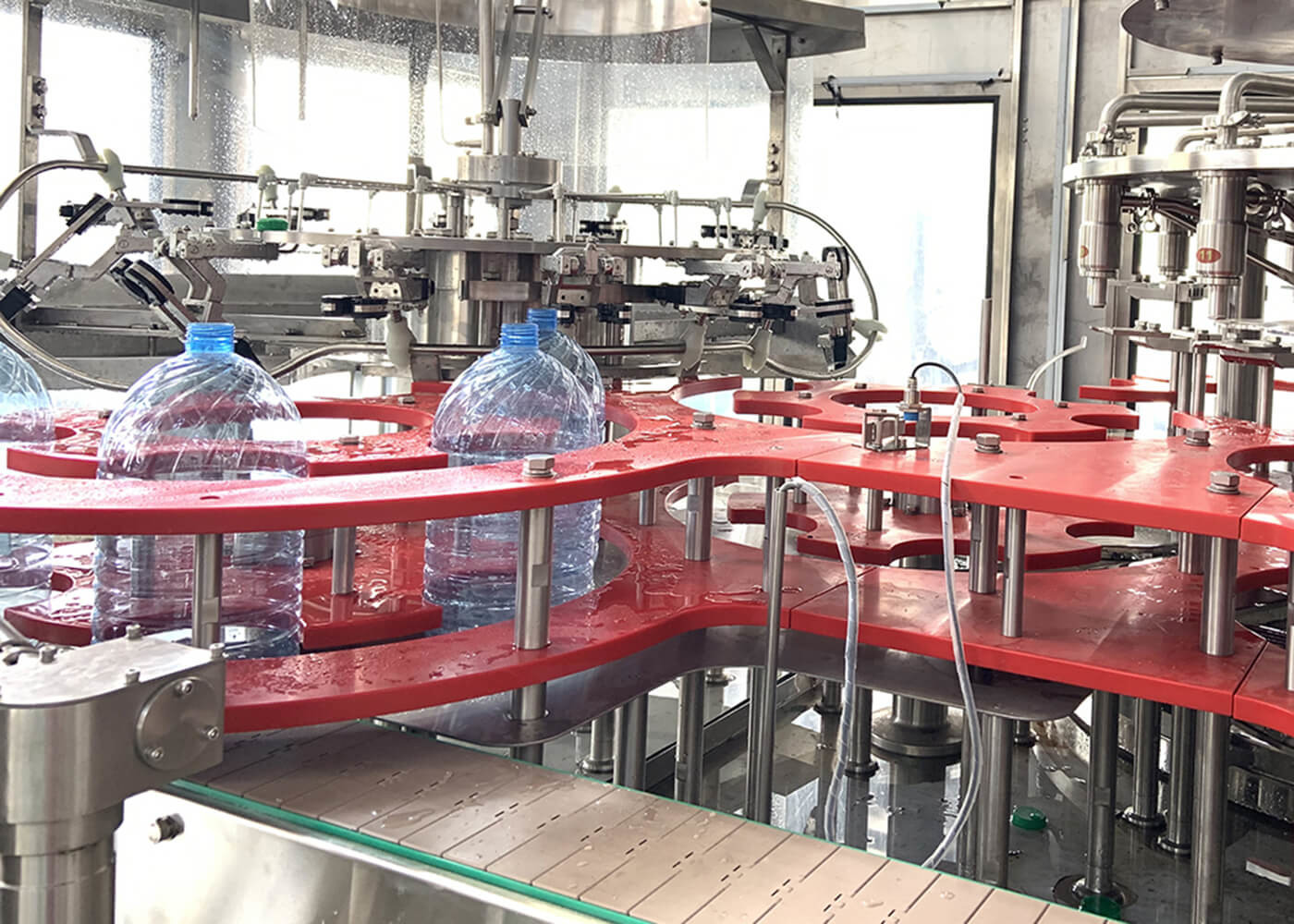

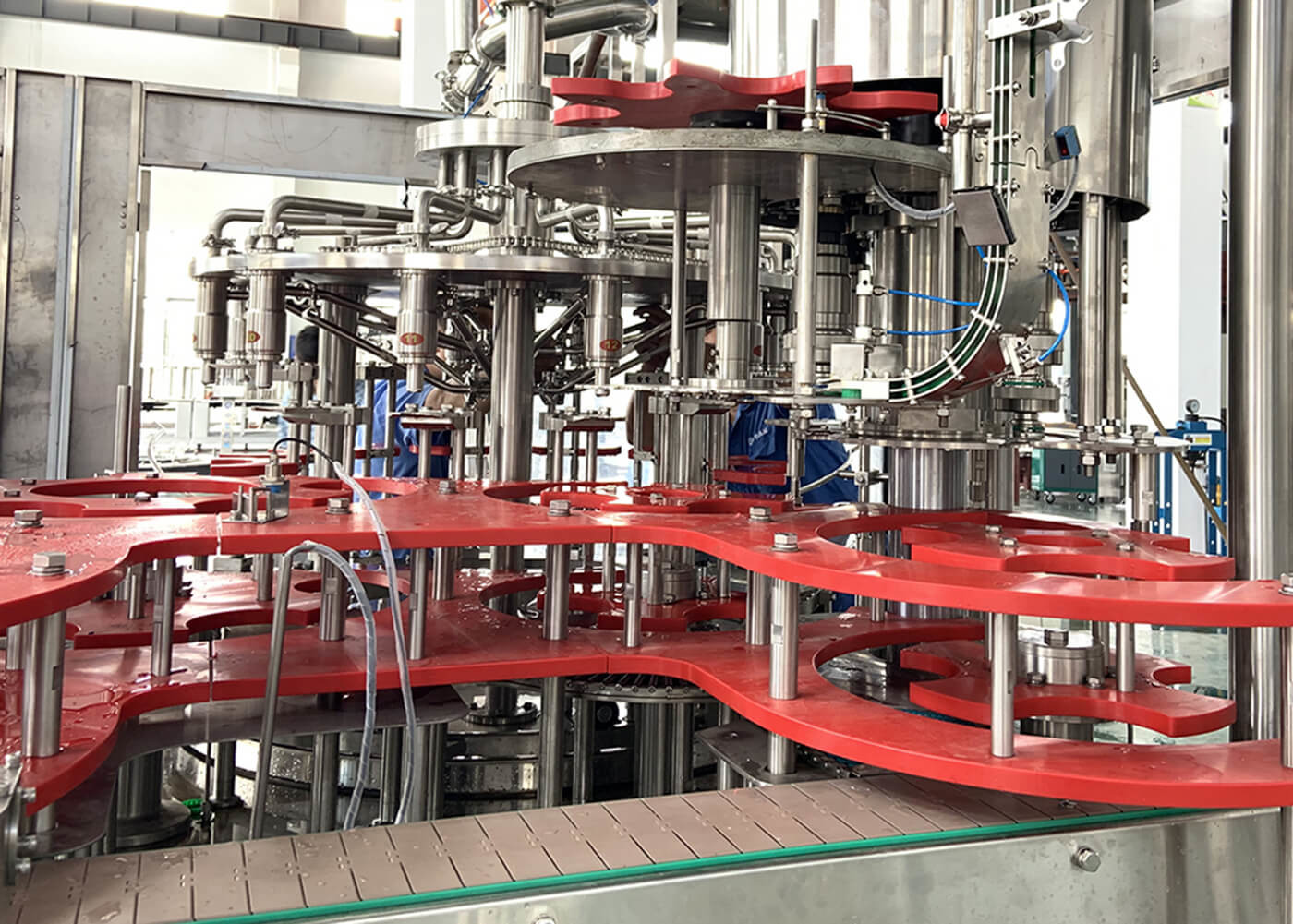

After-wash empty bottle input the filling machine through conveyor system, two push-barrel cylinders operate beside conveyor, then the bottle arrive filling part, the bottle bottom separate the conveyor belt. After filling, the bottle drop on the conveyor belt. Output to the capping part.
Screw capping machine
The screw capping machine is made of screw capping heads frame, after the filled bottle convey to the screw capping machine station, through air cylinder start to screw cap, again and again, the finished bottle output to the warehouse and check.
