PET Plastic Bottle Extrusion Blow Molding Machine For Mineral Water Pure Water

Basic Information

Place of Origin:	China
Brand Name:	SUNSWELL
Certification:	CE,ISO,SGS
Model Number:	SW-1200

Minimum Order Quantity:	1 Set
Price:	Negotiate
Packaging Details:	Standard Export Wooden Case
Delivery Time:	30 Days
Payment Terms:	L/C, T/T
Supply Ability:	100 Sets Per Year

Get Best Price Contact Now

Machine Type:	Semi-automatic Bblowing Machine	Condition:	New
Color:	Customized	Voltage:	Customized
Use:	Making PET Bottle,water Bottle	Blow Moulding Type:	Stretch Blow Moulding
After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,commissioning And Training	Warranty:	12months
Highlight:	blow mould machine , blow molding machinery

Semi Automatic PET Bottle Plastic Bottle Extrusion Blow Moulding Machinery For Mineral Water Pure Water

General Description:

1). The machine adopts revolving infrared pre-heat system, it ensures pet performs

be heated evenly.

2). The machine uses mechanical-double-arm mould clamping system which ensures the mould

be closed tightly even under high pressure and high temperature.

3).The air system has been divided into two parts: Pneumatic action part and bottle

blow part to meet the different pressure requirements for the action and blow, it

can provide sufficient and steady high pressure for blowing large irregular shaped

bottles

4).Wide -mouth and hot-filling bottles can also be made.

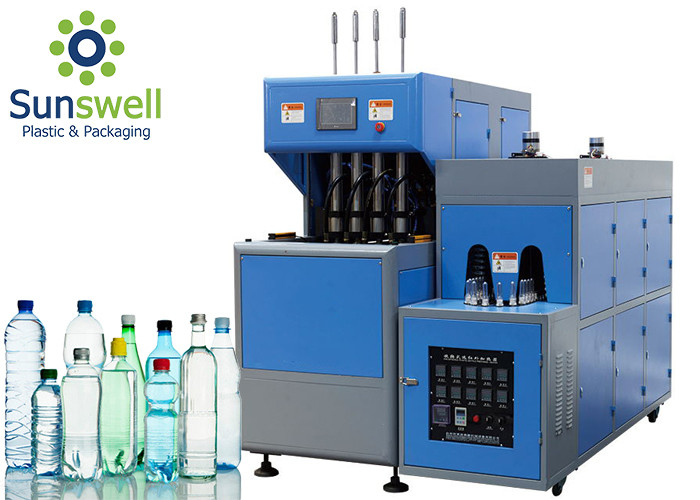

PET Plastic Bottle Extrusion Blow Molding Machine For Mineral Water Pure Water 0
Main parts:

	Ltem	Specification	QTY	Power/Remarks
Blowing machine	Semi-Automatic blowing machine	DY-1200B	2	42KW
	Perform heater	DY-1200B	1	42KW
	Blowing mold	500ml.2cavity	2	45# Street
	Blowing mold	1500ml.2cavity	2	45# Street
Auxiliary Equipment	High pressure air compressor	1.6m3/3.0mpa	1	18.5KW
	High pressure air tank	0.6m3/3.0mpa	1
	High pressure air dryer	2.5m3/3.0mpa	1	4kw
	High pressure air filter	2.5m3/3.0mpa	2
	Connecting pipe	2.0m3/3.0mpa	1
	Mold chiller	3HP air-cooling	1	4kw

Specifications:

Output	up to bottle shape	1500-2000bph	Power	power voltage	3Phase 400V/ 50HZ
Finished Bottle	bottle body diameter(max)	30mm-130mm	Power	total power/lamp pow	42kw 40pcs*1kw
Finished Bottle	bottle height	50mm-350mm	Air Source	high pressure air compressor	1.6m3/min 3.0MPa
	bottle neck diameter	15mm-120mm	Air Source	air dryer	2.5m3/min 3.0MPa
Mold	cavity	2cavity	Cooling Water	water yield	15L/min
	mold thickness	100~250mm	Blower Dimension	lengthwidthheight/weight	16506501750mm/750kg
	Max. stretching distance	430*380mm	Heater Dimension	lengthwidthheight/weight	21706701600mm/400kg

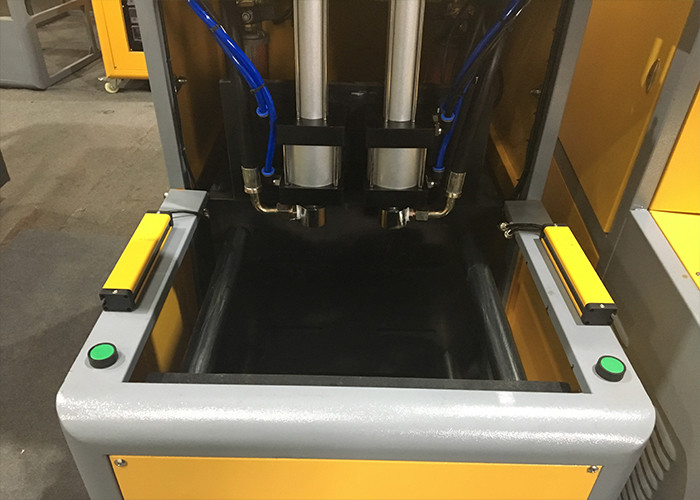

PET Plastic Bottle Extrusion Blow Molding Machine For Mineral Water Pure Water 1
