Gravity Pressure Filling,Mineral Water Or Pure Water,Automatic Bottle Filling Sealing Machine,Spring Water
Mineral Water,pure Water,Pure/Mineral Water
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,Free Spare Parts
water filling equipment
pet bottle filling machine

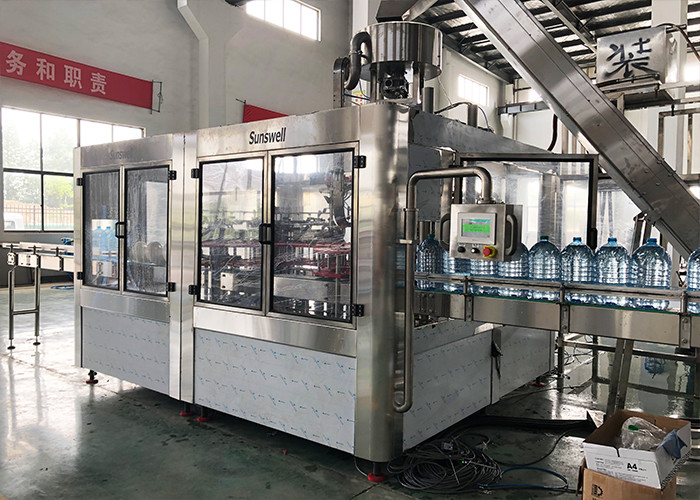

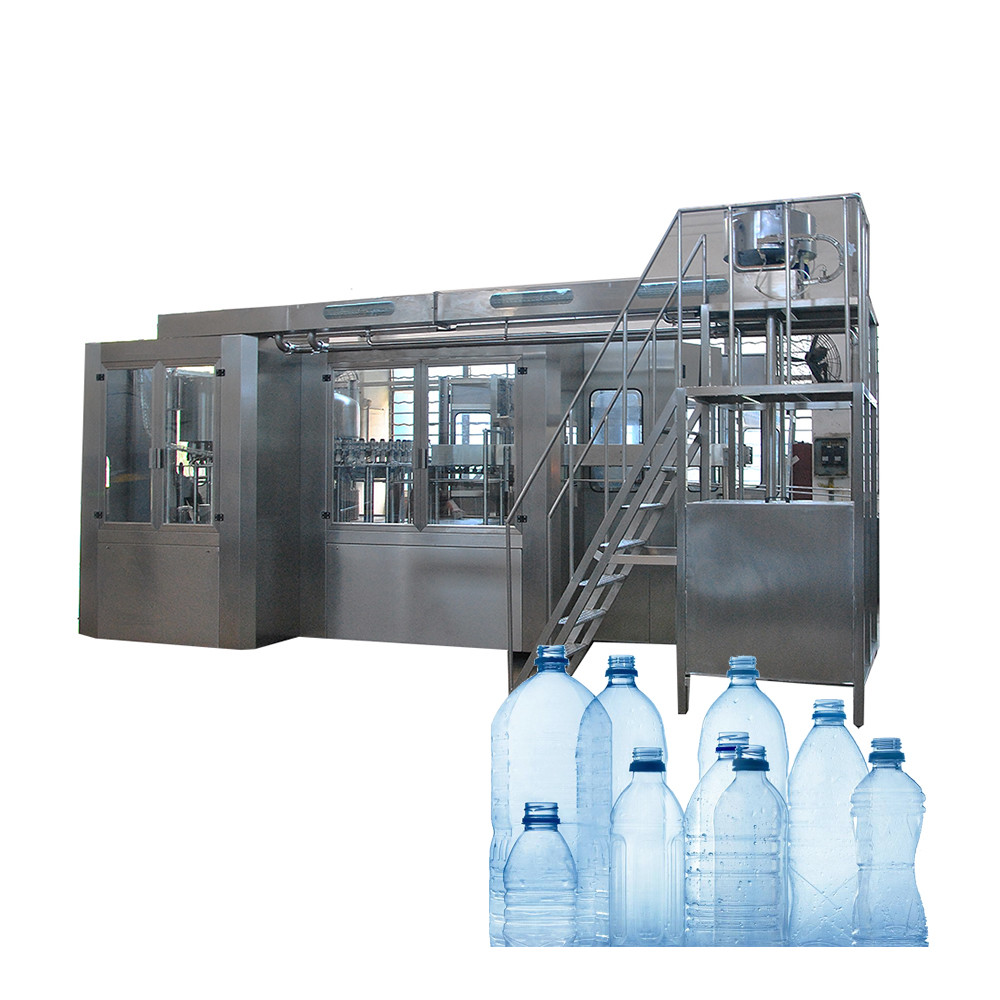

Reliable Full Automatic Water Filling Machine for Big Plastic Bottle General Description: QGF barrel production line is specially used for 5 Gallon barrel drinking water. This machine integrates washing/filling/capping into one unit. It is the good ideal for produce the mineral water/distilled water/pure water equipments. Whole machine are adopt the high quality stainless steel, It's erosion proof ability is strong, easy to washing.
Motor power kw
Main features 1. Bottle infeed
The rotary wheel is a fully SUS304 stainless steel welded structure. The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable. The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water. All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing. The rinser is driven by driving system positioned inside machine frame via gear transmission.
Rotary wheel fully made of stainless steel SUS 304. Gravity filling method. Filling valves are made of SUS304. Filling valves are reasonably structured with accurate filling. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth. Level of cylinder is controlled with float-ball. Filler is driven through gears inside the machine frame. Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.
4. Capper Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism which have a photocell switch to stop the capper when there is no cap inside the chute. The capper is equipped with inlet bottle detection switch.
Centrifugal way of cap arranging is adopted to reduce damage of caps.
Touch screen: Mitsubishi, Thinget or Weinview PLC program controller: Mitsubishi or Omron Inverter: Mitsubishi or Omron Photoelectrical controller: AUTONICS Other electrical components: Schneider Pneumatic component: Airtac Pump: Nanfang
