Water Treatment System Processing Reverse Osmosis Plant
RO Water Treatment Equipment
Beverage Or Food Company
water treatment machine
Water Treatment Equipment
RO Pure Water Treatment System Water Filter System for Drinking Mineral Pure Water Production
High quality SUS 304 stainless steel for food.
RO reverse osmosis equipment adopts imported brands for key components and devices.
Advanced technology, reliable quality
Compact(takes less space): reasonable design and structure
High efficiency: high water utilization rate, low energy consumption
Turnkey Product: According to user requirements design and manufacture.
High quality and factory direct price.
Easy to operate and maintain. Fully automated operation
1. Water tank: storage of tap water, to solve the problem of insufficient tap water pressure and the back booster pump due to the impact of insufficient water, reduce the failure rate
2. Water pump: equipped with a stainless steel pump, to provide sufficient pressure for subsequent filtration
3. Quartz sand filter: mainly remove the mud, suspended solids and large particles in the tap water
4. Active Carbon filter: mainly remove organic substances, residual chlorine and odor in tap water
5. Water softener filter: mainly remove the calcium and magnesium in tap water, reduce the hardness of water
6. Security filter: further filtration, protection of reverse osmosis membrane
7. High pressure pump: provide enough pressure for reverse osmosis system

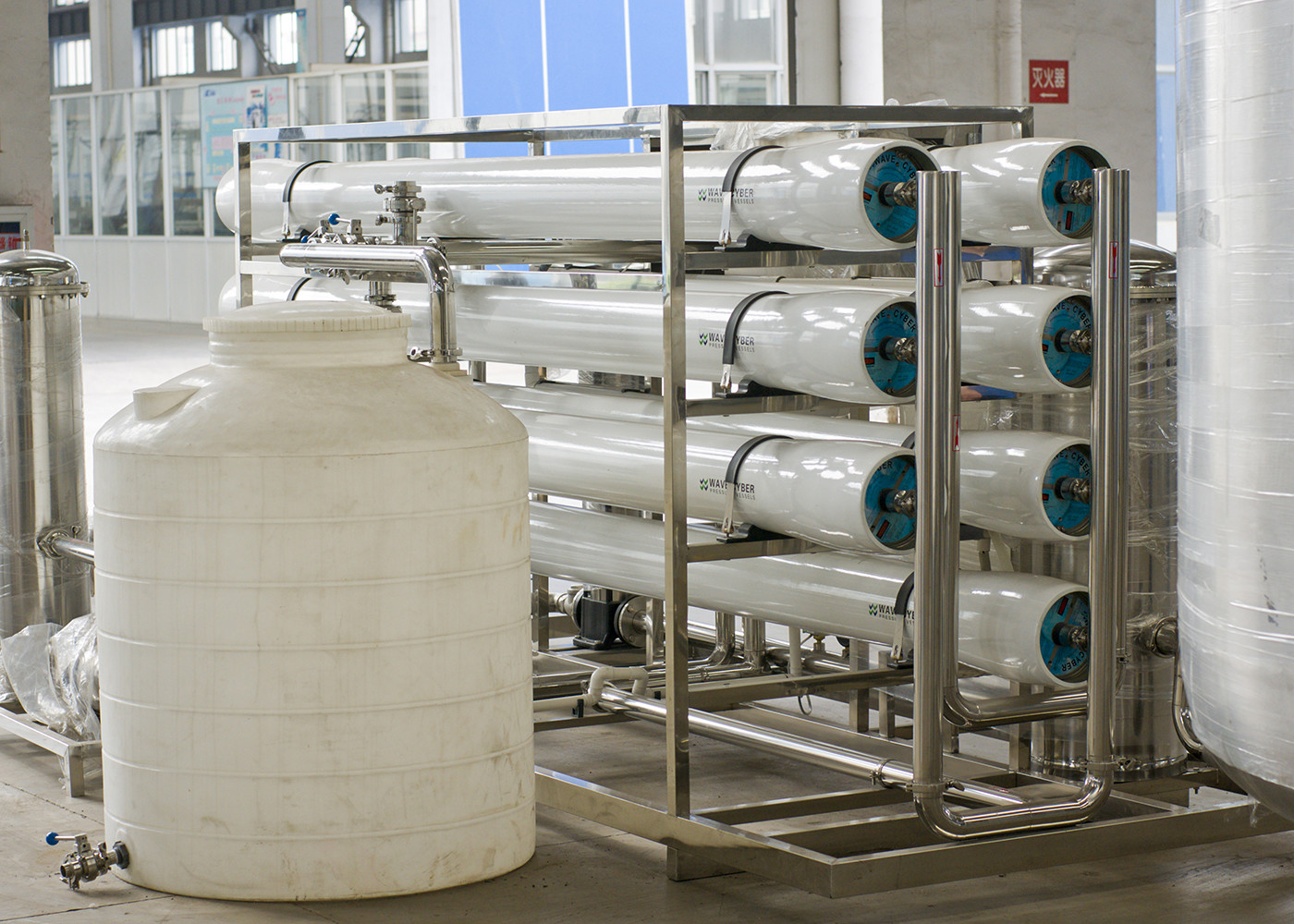

8. Reverse osmosis unit: the core part of pure water equipment, the production of high-purity water.
9. Pure water tank: storage pure water, can change the size of the water tank,after the below process,The water result is pure enough for different application.
10. Ozone Generator:Four connections installed on the ozone generator: air inlet:/Ozone outlet/chilling water inlet/chilling water outlet
11. UV Sterilizer:The products adopt a high-intensity,long-lived UV germicidal lamp,the device is reasonable, compact, and adopts the structure of secondary disinfection,so health indicators completely according to the state standard.
