Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE SGS |
| Model Number: | BDXGF |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 60 days after receiving down payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets/month |
| Type: | Filling Machine | Application: | Beverage |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Packaging Material: | Wood |
| Automatic Grade: | Automatic | Warranty: | 1 Year |
| Material: | Stainless Steel | Name: | 3 In 1 Beer Filling Machine |
| Function: | Bottle Beer Washing Filling Capping | Filling Material: | Beer |
| High Light: | SUS316L soda water filling machine,rotary tray soda water filling machine,SUS316L automatic beer bottle filler |
||
Product Description

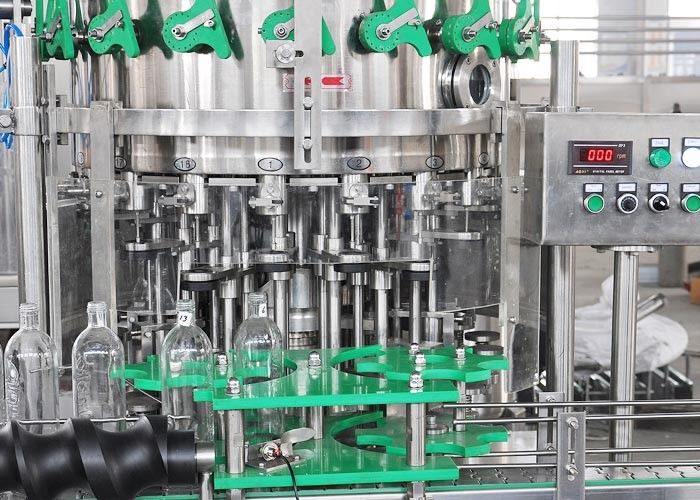

This Beer Filling Machine Wash-filling-capping 3-in-1unit is used to produce glass bottled beer. The BGF Wash-filling-capping 3-in-1unit:beer Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
Beer bottling line Main configuration:
1) Material of filling valve: Stainless steel SUS316L
2) Material of rotary tray and machine platform of rinser and filler: Stainless steel SUS304
3) Main motor: Simens
4) Sliding bearing: Igus
5) Frequency inverter: Mitsubishi
6) Touch screen: Mitsubishi
7) PLC: Mitsubishi
8) Pneumatic components: Airtac
Beer bottling line Parameter:
| Model | Capacity | Power | Dimension | Weight |
| GF 18-18-6 | 6000BPH | 1.5KW | 2000X1600x2550 | 3000 |
| GF 24-24-8 | 9000BPH | 3KW | 2200x1820x2550 | 3500 |
| GF 32-32-8 | 12000BPH | 4 KW | 2300x2030x2550 | 4000 |
| GF 40-40-10 | 15000BPH | 5KW | 2500x2200x2550 | 4500 |
