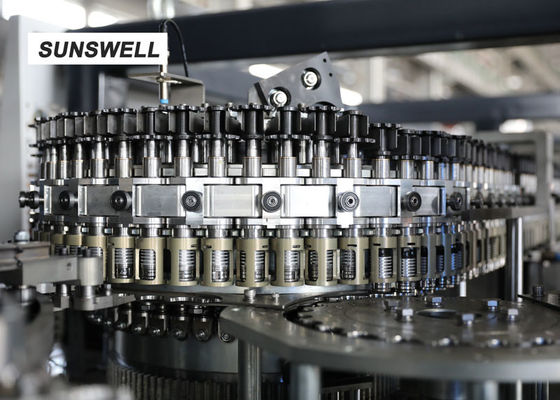

Sunswell Blowing Filling capping combiblock for bottled water in PET bottles
3-in-1 combiblock, composed of blowing, gravity filling and capping. It is innovated and designed in the requirement of still pure water and mineral water. The combiblock avoids friction of bottles during air conveying, beneficial for light weight bottles.
Capacity: 12,000 – 40,000BPH (500ml)
Rotary Blow Molding Machine
Horizontal heating chain drive system
Use high-strength brass processing to extend the service life
Large caliber cooling mouth, to ensure that the preform neck not heated, with effective protection of preform thread
Efficient energy-saving preform heating system
Adjustment device with ruler instructions, equipment adjustment more convenient
Using streamlined guide plate, so that the air flow more effectively on the preform neck cooling and protection
Mirror reflector, high reflection, more energy efficient
Norgren’s smaller high pressure valve group, less dead space
Saving blowing air
Patented blowing nozzle unit for stable preform
Positioning first, sealing after, to ensure that the preform vertical blowing, more stable.
To avoid broken bottle blocking machine phenomenon.
Fast mold changing unit (6-screw design)
6-screw mold change design
6-8min for each mold changing
H-type steel frame, reducing vibration, more stable
Driving platen and the host frame as a whole processing, more accurate to feed preforms. Ensure without vibration at 2000BPH each cavity.
H-type steel welding, high-speed rotation more stable.
High accurate filtration system and High pressure air recycling system
High-pressure air recovery system can save 30% of air, in addition, the extra gas leads to other machines.
High-pressure filtration system accuracy of 0.001ppmw, greatly extend the service life of pneumatic components.
High speed & energy saving blowing system
Integrated brake system with slewing ring, more reliable and stable.
Reliable electrical control
Through the teleservice remote monitoring system, real-time recording of any operation of the field device or shutdown information, through the analysis of software real-time analysis of equipment operating status.
Safety relay equipped
Safety door locking
Air conditioning and Anti-condensation System on electrical cabinet
Ion air blowing
Ion gas blowing for removing dust on preform
Positive and negative ion generator neutralize static electricity on surface of preform
Blow clean compressed air onto the surface of the preform
Vacuum dust suction
Gravity Filling Machine
Filling valves and tank are made of stainless steel SUS304.
Large flat bearing with teeth, stable and reliable performance.
Ring shape tank with float ball level control.
High speed and high accuracy filling valve with 200ml/s flowing speed
Filling valve equips dummy cup and can do CIP circularly.
With rotary spray ball in tank to ensure cleaning effect.
Lift by pneumatic cylinders.
Vacuum pump for filling level regulation
Magnetic constant torque capping head ensures stability and controls defective rate of capping less than 0.2%.
Cap dropping rail equips a group of photoelectrical switch for reverse cap detecting. When lack of cap, machine will be stopped automatically.
Bottle infeed detecting switch works with the pneumatic cylinder on cap starwheel to avoid feeding cap on no-bottle condition.
