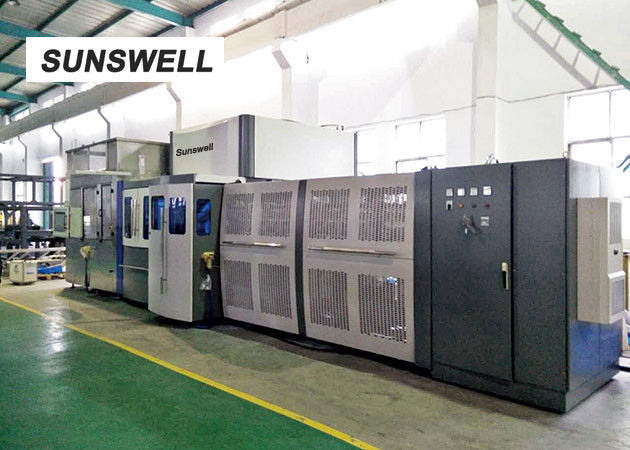

Sunswell Blowing Filling capping combiblock for bottled water in PET bottles .The Blowing and Sealing Machine is a successful and complete line project of Sunswell Machinery. It combines three technologies of rotary blowing, filling and capping. The blowing and sealing machine is through the blowing process, filling process, capping equipment and intelligence. Innovation in integration to achieve a continuous process of the entire blow molding of the container, filling and sealing of the product. The blow-and-spin machine is mainly composed of six systems: upper embryo, texture embryo, preform heating, blowing, filling, capping and electrical integration.

3-in-1 combiblock, composed of blowing, gravity filling and capping. It is innovated and designed in the requirement of still pure water and mineral water. The combiblock avoids friction of bottles during air conveying, beneficial for light weight bottles.

Capacity: 12,000 – 40,000BPH (500ml)

Features

Rotary Blow Molding Machine

1. Horizontal heating chain drive system

1. Efficient energy-saving preform heating system
2. Patented blowing nozzle unit for stable preform

• Positioning first, sealing after, to ensure that the preform vertical blowing, more stable.
• To avoid broken bottle blocking machine phenomenon.

1. Fast mold changing unit (6-screw design)

• 6-screw mold change design
• 6-8min for each mold changing

1. H-type steel frame, reducing vibration, more stable

• Driving platen and the host frame as a whole processing, more accurate to feed preforms. Ensure without vibration at 2000BPH each cavity.
• H-type steel welding, high-speed rotation more stable.

1. High accurate filtration system and High pressure air recycling syste

1. High speed & energy saving blowing system

1. Reliable electrical control

• Through the teleservice remote monitoring system, real-time recording of any operation of the field device or shutdown information, through the analysis of software real-time analysis of equipment operating status.

• Safety relay equipped

• Safety door locking

1. Air conditioning and Anti-condensation System on electrical cabinet

1. Ion air blowing

• Ion gas blowing for removing dust on preform
• Positive and negative ion generator neutralize static electricity on surface of preform
• Blow clean compressed air onto the surface of the preform
• Vacuum dust suction

Gravity Filling Machine

1. Filling valves and tank are made of stainless steel SUS304.
2. Large flat bearing with teeth, stable and reliable performance.
3. Gravity filling.
4. Ring shape tank with float ball level control.
5. High speed and high accuracy filling valve with 200ml/s flowing speed
6. Filling valve equips dummy cup and can do CIP circularly.
7. With rotary spray ball in tank to ensure cleaning effect.
8. Lift by pneumatic cylinders.

Vacuum pump for filling level regulation

Capping Machine

Equipment Structure
