Hot Melt Glue Square Bottle Sticker Labeling Machine Rotary Type 2 Year Guarantee
Position on the round bottle and square bottle to paste OPP, BOPP and paper labels which are rolling without glue. This machine will deliver labels automatically, select and cut labels, glue at both ends of each label, add labels and smooth out labels.
The machine suits for the application of mineral water, beverage, food, washing and other industries to realize labels-cutting, glues-coating and labelling for round bottles and square bottle.
1.2.2. Specifications for labeling machine label
Rolling OPP, BOPP and paper label;
Label thickness: 0.03 ~ 0.08mm;
Labels can be used only after the quality is accepted by UJUNR;
Outer diameter of label volume <¢500; inner diameter of label volume is ¢152;
Minimum length of single label (running direction): 50mm.
1.3. Components and construction of machine
1.3.0 A. Front view

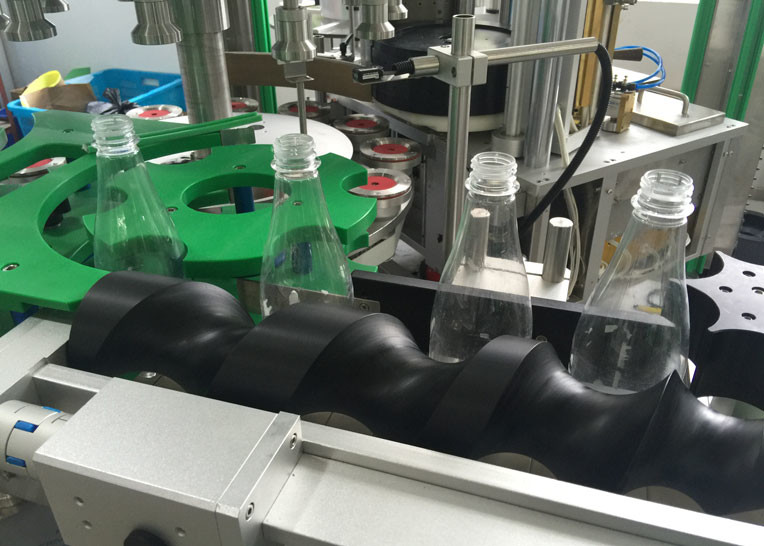

SSW-0806R Rotary Hot Melt Machine components figure is shown as following
1.3.1. Stop rod
The conveying belt is provided with retaining sides which are bilateral and applicable for positive stop during conveying bottles. The length between two continuous retaining sides is a little bigger 1-2mm than bottle diameter or width appropriately.
1.3.2. Conveying belt
1.3.3. Star wheel
The feeding star wheel matches the guide panel to convey bottles which are prepared for labeling on the brackets on the container rotary platform by a fixed length. For bottles with different diameters, please change the star wheel and the guide panel!
The output star wheel matches the guide panel to convey bottles finished with labeling on the brackets on the transport line.
Adjusting of the feeding star wheel: Place a bottle in the star wheel gullet and the guide panel, release <locking five-star screw> in the inlet star wheel, run the machine by inching to make bottles be just onto the brackets at the guide panel outlet, and lock the corresponding five-star screws.
Adjusting of the output star wheel: Release the locking five-star screw on the outlet star wheel, run the machine by inching to make bottles which are guided onto the brackets by the feeding star wheel through last step be at the star wheel and the guide panel outlet, keep bottles set in the star wheel gullet, and lock the corresponding five-star screws.
Changing the star wheel and the guide panel: Remove the locking five-star screws in the star wheel and the guide panel to disengage the star wheel and the guide panel (if necessary, raise the pressure-head rotary table, see 1.3.6 <Figure 7>), re-mount the required guide panel, place the positioning pin properly during mounting, after that re-lock the corresponding five-star screws. Then set the feeding star wheel and the output star wheel into the right location and re-lock the corresponding five-star screws. After finish mounting, follow the above steps to adjust the feeding star wheel and the output star wheel.
Maximum label output speed
30,000 (determined by bottle size and label length)
