|Place of Origin:||Zhangjiagang|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||PE film wrapping adding with wooden case packaging|
|Delivery Time:||45~60 working days|
|Capacity:||5,000~30,000BPH||Bottle:||Round & Square|
|Label Material:||OPP, ROPP||Guarantee:||2 Years|
|Service:||Engineers Come To Client Factory For Machine Installation|

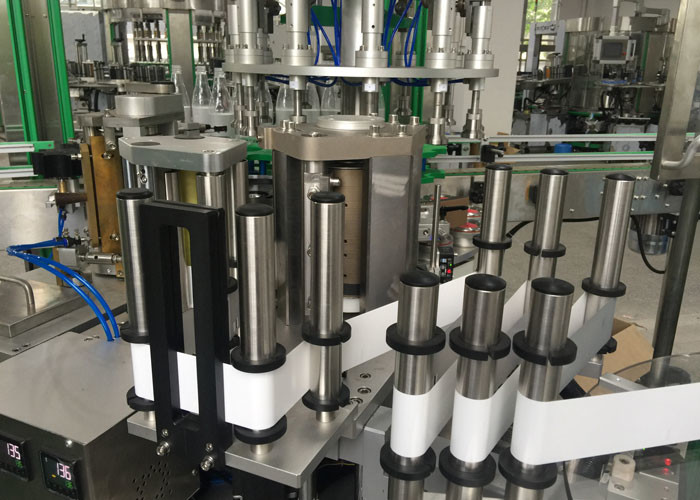

Small Capacity Hot Melt Opp Labeling Machine , Automatic Bottle Labeler 5000BPH
Position on the round bottle and square bottle to paste OPP, BOPP and paper labels which are rolling without glue. This machine will deliver labels automatically, select and cut labels, glue at both ends of each label, add labels and smooth out labels.
The machine suits for the application of mineral water, beverage, food, washing and other industries to realize labels-cutting, glues-coating and labelling for round bottles and square bottle.
1. General power supply switch
2. Touch screen
3. Emergency stop switch
The main control circuit of the electric cabinet integration system is the location for layout and installation of electric components. The electric cabinet is provided with two locks. After unlock them, pull up the lock handle and turn it right to open the cabinet door. The specific operation about the integrated man-machine interface of electric cabinet can be seen in 3.1.
1.3.9. General power supply switch
The general power supply switch is located below the electric cabinet at front of the machine (Figure 9). Turn the switch in the clockwise direction to the position of ON to connect the power, and turn the switch in the anticlockwise direction to the position of OFF to disconnect the power.
1.3.10. Material-lack sensor
Inspect whether lacking material during the first transporting period, if lacking material, send a signal to the control system for stop. The machine is provided with the material-lack sensor in order for no single bottle goes into the separating screw stem to result the bottle down.
1.3.11. Emergency stop switch
The machine is provided with two emergency stop switches. One is located above the touch screen and the other is located aside the transport line (Figure 9).
When an emergency happens, please ensure to press the switch and stop the whole machine. At that moment, the system information section indicates that the emergency stop switch is not on and the frequency inverter alerts! Just turn the top cap of the emergency stop switch in the clockwise direction to set the emergency switch on.
1.3.12. Touch screen
With Chinese human-computer operation interface, the touch screen is applicable to start/stop the machine, set/adjust various parameters, and indicate/report production information!
1.3.13. System air pressure inspection
The machine is provided with an air pressure inspection device (Figure 9). When the system air pressure is lower than the system assumed value and insufficient to ensure the system run normal, the machine may stop voluntarily, and the touch screen information section indicates an alert report of <air pressure insufficient>!
|Maximum label output speed||60m/min|
|Maximum speed||30,000 (determined by bottle size and label length)|
|Specifications for labeling bottle||Round bottle and square bottle|
|Power supply||Three phase 380V 50/60Hz|
|Air pressure||5 Kg f/cm2|
|Outside measurement (LxWxH)||About 3000mm(L)×2000mm(W)×2000 mm(H)|
|Total weight||About 2500Kg|
