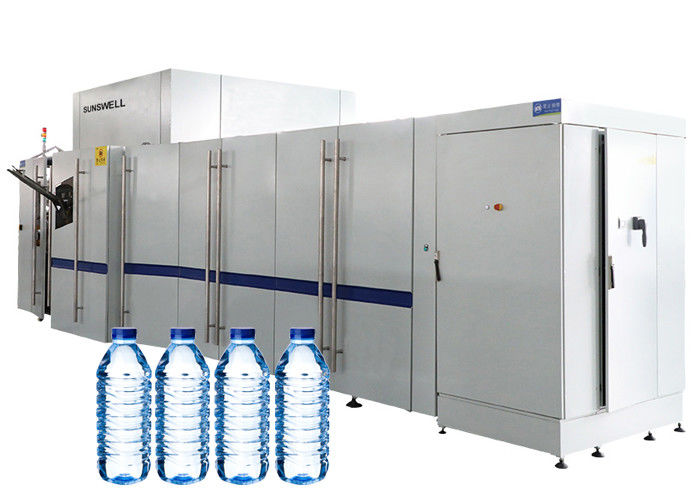

CE Blowing Filling Capping Combiblock Machine For PET Bottle Water Production

CE Blowing Filling Capping Combiblock Machine For PET Bottle Water Production

CE Blowing Filling Capping Combiblock Machine For PET Bottle Water Production

Product Details:

Place of Origin: Zhangjiagang, Jiangsu, China
Brand Name: Sunswell
Certification: CE
Model Number: BFC

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD500,000~2,000,000/SET
Packaging Details: PE film with carton box packaging
Delivery Time: 90~120 working days
Supply Ability: 10sets/season
Contact Now
Detailed Product Description
Product: Mineral Water Blowing Filling Capping Combiblock Package: PET Bottles
Filling Temperature: Ambient Temperature Filling Technology: Gravity Filling, Volumetric Filling
Production Capacity: 12,000BPH - 40,000BPH Guarantee: 2 Years
Cap: Plastic Cap Service: Engineers Able To Come To Client Factory For Machine Installation And Commissioning
Brand: Sunswell Certification: CE ISO9001



CE Blowing Filling Capping Combiblock Machine For PET Bottle Water Production





Applications:

It is applied to PET bottled pure water, carbonated soft drink, juice, liquid dairy, liquid condiment and household & personal care products, etc.



Blowing unit

High-speed blow valve group with high-speed network control ensures blowing technic precision and unification.
Three-dimensional dynamic simulating design ensures exact and reliable cam transmission and mesh.
High-pressure blow valve group optimum design helps save air a lot.
Quick-change for mould.
Wearable aluminum alloy mould surface with special treatment of hardness.
Friendly man-machine interface.
Key points automatic lubrication.


Filling unit

High-speed and high-precision filling valve: 200ml/s, ±3mm.
Servo drive system
With CIP function


Capping unit

Magnetic constant torque, defective rate≤0.2%
Reversal caps ejecting device
No bottle, no feeding cap.





Product Range:

Production capacity from 12,000 BPH to 54,000 BPH.





Blowing-Filling-Capping-Combi Block Machinery Features:



1. Pre-form inlet controlling

2. Put pre-forms into hopper of auto sending device, send to heating stove through belt and drum unit.

3. Bottle pre-form heating controlling The heating stove has 8-floors infrared lamp to heat pre-forms, the pre-forms run itself and also the infrared lamp can be adjusted temperature independently.

4. Heating stove has pre-form screw head cooling way and stove ventilation and cool air duct, it ensures that pre-forms will not be hard warmed.

5. Bottle pre-forms are sent to pre-form base by guide turn table, the bases get pre-forms and then send to stove for heating one by one.

6. Blowing technology controlling

7. Discharge warmed pre-forms to outlet guide by discharge pre-form cover, put pre-forms into blowing moulds by manipulator, seal the bottle mouth and extrude the body, also inlet two grade air pressure(pre-blowing pressure and high pressure air) and make pre-form to be bottles. According to the requirement of art, there will inlet cooling water for moulds, all above processes are controlled by main machine computer.

8. Bottle check and outlet

9. After blowing, the manipulator get bottles out of mould and the qualified bottle will be send to guide, this guide can be connected directly to filling line and also can connect to conveying chain, send to bottle warehouse.



NO. Model Capacity(based on 500ml) Remark
1 8-32-8 15,000bph
2 10-40-10 18,000bph
3 12-40-15 22,000bph
4 14-40-15 24,000bph
5 16-50-18 30,000bph



CE Blowing Filling Capping Combiblock Machine For PET Bottle Water Production



CE Blowing Filling Capping Combiblock Machine For PET Bottle Water Production



CE Blowing Filling Capping Combiblock Machine For PET Bottle Water Production
