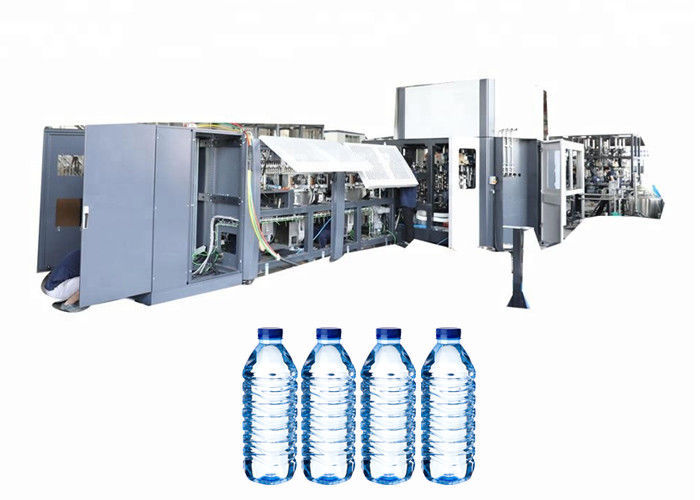

Automatic Combiblock / Combibloc / Combi Blowing Filling Capping Machine for sale
It is applied to PET bottled pure water, carbonated soft drink, juice, liquid dairy, liquid condiment and household & personal care products, etc.
3-in-1 combiblock, combined with blowing, filling and capping. It is innovated and designed in the requirement of still pure water and mineral water, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy. The combiblock avoids friction of bottles during air conveying and helps reducing bottle weight to reduce cost.
Production capacity from 12,000 BPH to 54,000 BPH.
2. Put pre-forms into hopper of auto sending device, send to heating stove through belt and drum unit.
3. Bottle pre-form heating controlling The heating stove has 8-floors infrared lamp to heat pre-forms, the pre-forms run itself and also the infrared lamp can be adjusted temperature independently.
4. Heating stove has pre-form screw head cooling way and stove ventilation and cool air duct, it ensures that pre-forms will not be hard warmed.
5. Bottle pre-forms are sent to pre-form base by guide turn table, the bases get pre-forms and then send to stove for heating one by one.
6. Blowing technology controlling
7. Discharge warmed pre-forms to outlet guide by discharge pre-form cover, put pre-forms into blowing moulds by manipulator, seal the bottle mouth and extrude the body, also inlet two grade air pressure(pre-blowing pressure and high pressure air) and make pre-form to be bottles. According to the requirement of art, there will inlet cooling water for moulds, all above processes are controlled by main machine computer.
8. Bottle check and outlet
9. After blowing, the manipulator get bottles out of mould and the qualified bottle will be send to guide, this guide can be connected directly to filling line and also can connect to conveying chain, send to bottle warehouse.
