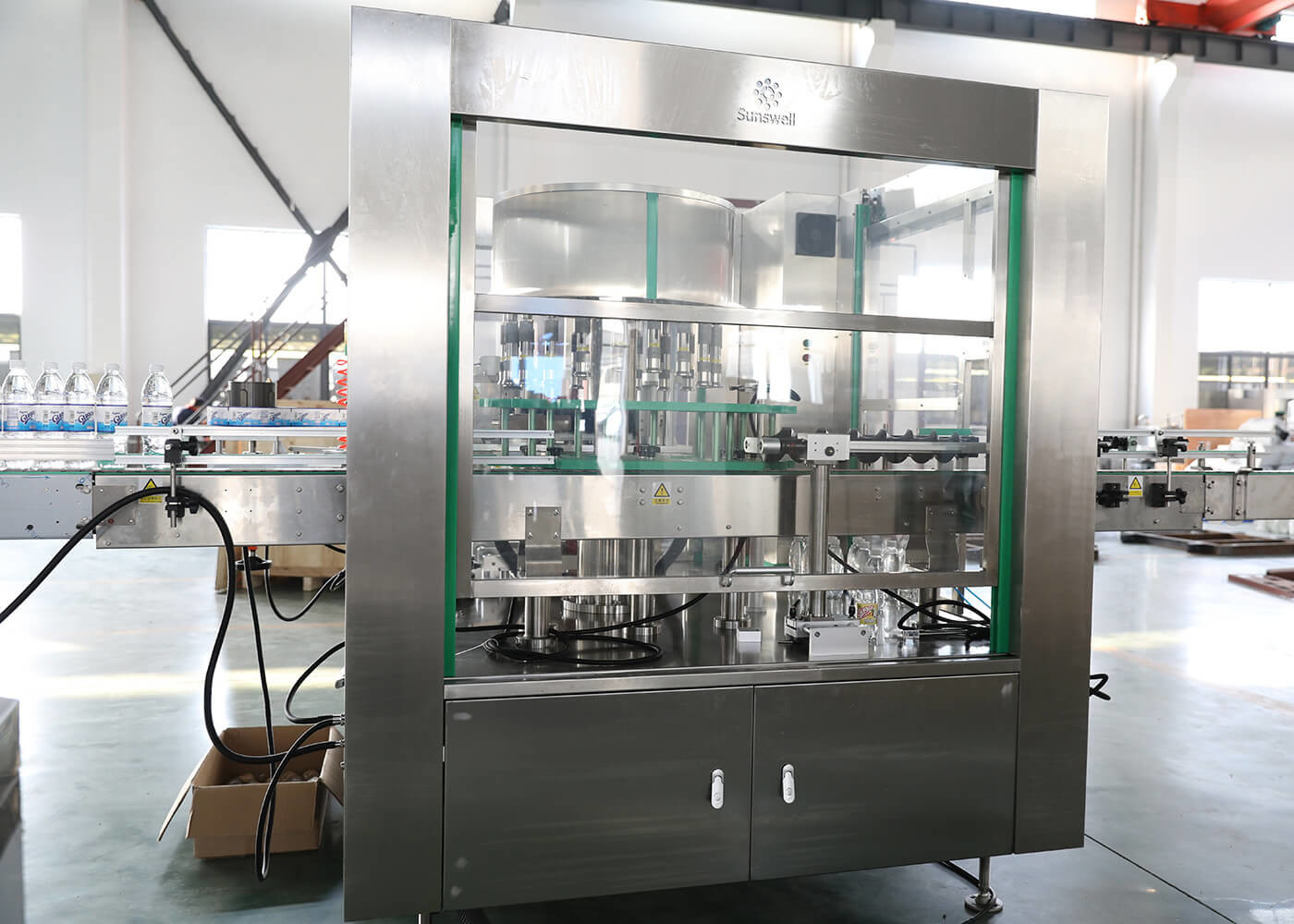

Auto Rotary OPP Hot Melt Glue Labeling Machine For Pure Water Plastic Bottle

Auto Rotary OPP Hot Melt Glue Labeling Machine For Pure Water Plastic Bottle

    • Auto Rotary OPP Hot Melt Glue Labeling Machine For Pure Water Plastic Bottle
    • Auto Rotary OPP Hot Melt Glue Labeling Machine For Pure Water Plastic Bottle
    • Auto Rotary OPP Hot Melt Glue Labeling Machine For Pure Water Plastic Bottle
    • Auto Rotary OPP Hot Melt Glue Labeling Machine For Pure Water Plastic Bottle
  • Auto Rotary OPP Hot Melt Glue Labeling Machine For Pure Water Plastic Bottle

    Product Details:

    Place of Origin: Jiangsu, China
    Brand Name: Sunswell
    Certification: CE SGS
    Model Number: TB

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wooden case
    Delivery Time: 60 days after receiving down payment
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets/month
    Contact Now
    Detailed Product Description
    Product Name: Hot Melt Glue Labeller Voltage: 220V/380V/Customized
    Automatic Grade: Full Automatic Condition: New
    Driven Type: Electric Type: Labeling Machine
    Packaging Type: Plastic Application: Food,Beverage
    After-sales Service Provided: Online Support,Engineers Available To Service Machinery Overseas Packaging Material: Wooden Case
    Certification: CE, SGS Warranty: 1 Year
    Function: Labeling Material: SUS304

    Automatic Rotary OPP Hot Melt Glue Labeling Machine for Pure Water Plastic Bottle



    Characteristics:



    1. Adopt mature PLC control system technology, make the whole machine stable and high-speed

    2. Can be suitable for square /round/oval flat bottles at the same time

    3. Use touch screen control system, make operation simple, practical and efficient

    4. Upgraded butterfly labeling station design, can be applied for conical bottle labeling

    5. Screw adjust the suppression mechanism, high accuracy

    6. Synchronization chain mechanism, to ensure smooth and precise calibration

    7. Transparent sticker labeling without foam,adhesive sticker labeling without wrinkle

    8. Widely used and mutil-function with high flexibility

    9. Date/code printer is for optional

    10. Tranparent label sensor is for optional

    11. Can be customized according to your requirement



    Machine constitutes:

    A: mainframe
    Sanyo servo system
    Sanyo servo drive system
    Sanyo motion controller

    SIEMENS PLC
    SIEMENS Color Touch-screen HMI

    Japan SUNX Digital Color Mark Sensor

    Japan SUNX Detection Sensor for coating adhesive

    Japan SUNX Photoelectric Sensor

    Japan SUNX Pressure Sensor



    B: Mechanical parts

    Transportation institution: B&M AC motor 370w (with deceleration by BBM), inverter speed control

    Conveyor: industrial nylon chain plate conveyor

    Mainframe transportation institution: B&M AC motor 1.5Kw (with deceleration by BBM)

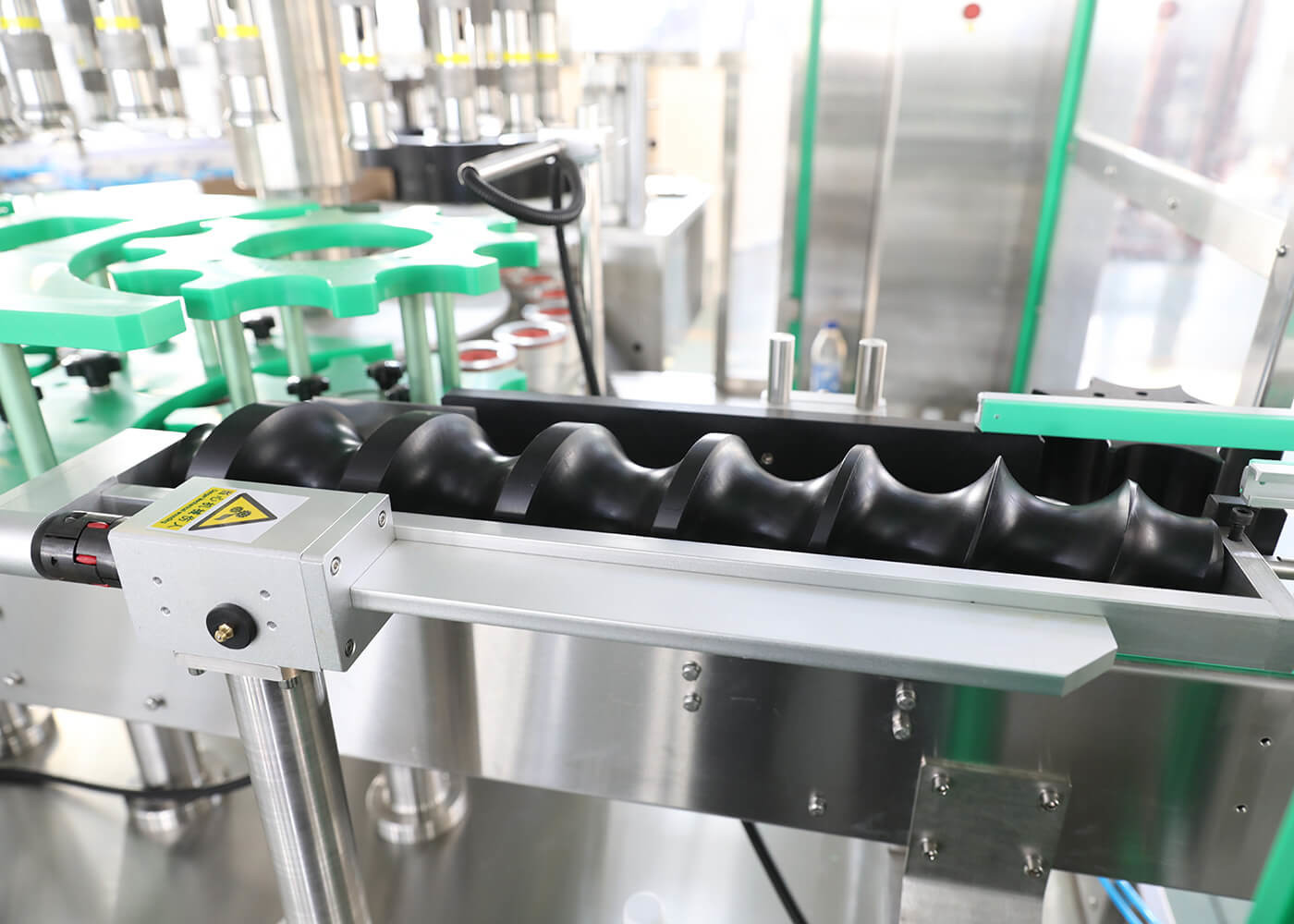

    Sub bottle institution: industrial worm sub bottle institution

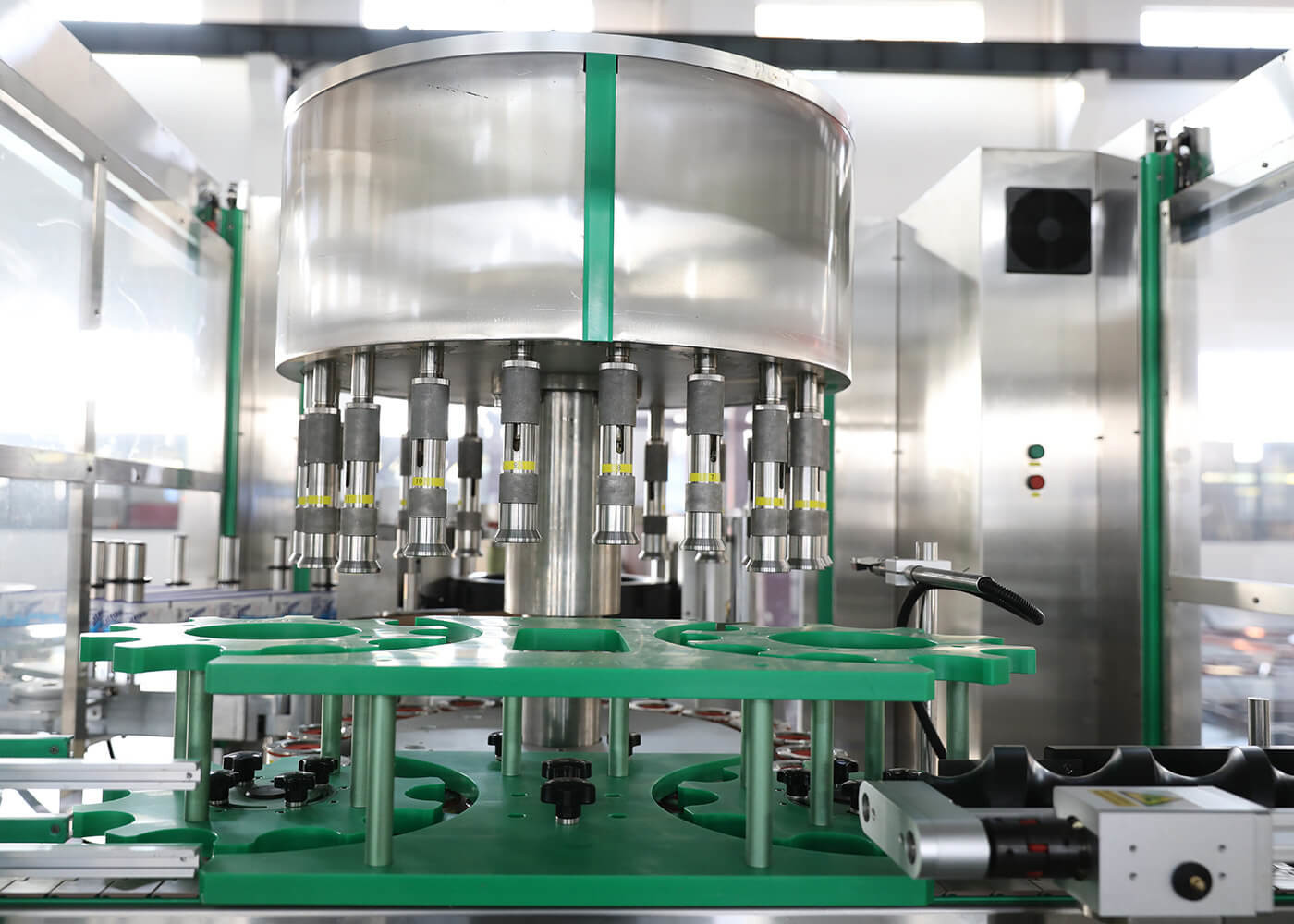

    Into bottle institution: with worm sub bottle institution and starwheel position feeding institution to ensure the accuracy and stability of loading

    Position institution: Mechanical pre-location, using the camwheel institution to planish the bottle for label positioning

    Labeling institution: Containers are picked up by rotary wheel, labeling during the rotation.

    Supply label institution: Sunswell high speed servo OPP label supply system (drive by servo-motor)

    Pressing label institution: Arc brush unit

    Guided bottle institution: adjust by double coordinate section guide rail

    Glue supply system: Sunswell hotmelt glue supply system (German SEIMEC control system) ensures the accuracy and uniformity of gluing



    Safety part of the machine

    Safety protection: In order to keep the operator safety, when the machine is running please close the protective doors

    Lack of label alarm: Set an alarm to remind the operator to change the label when the label will be use out

    Lack of bottle alarm: When lack of the bottle the machine will stop and make an alarm .The machine will restart automatically as soon as the bottles have been put that will facilitate on-line production

    Leak of labeling alarm: To control the quality of labeling

    Pressure testing: When the pressure cannot meet the equipment requirement, the machine will stop to against bad products produce

    Vacuum testing: When the vacuum cannot meet the equipment requirement, the machine will stop to against bad products produce

    Temperature testing: When the temperature cannot meet the equipment requirement, the machine will stop to against bad products produce



    Method of Operation

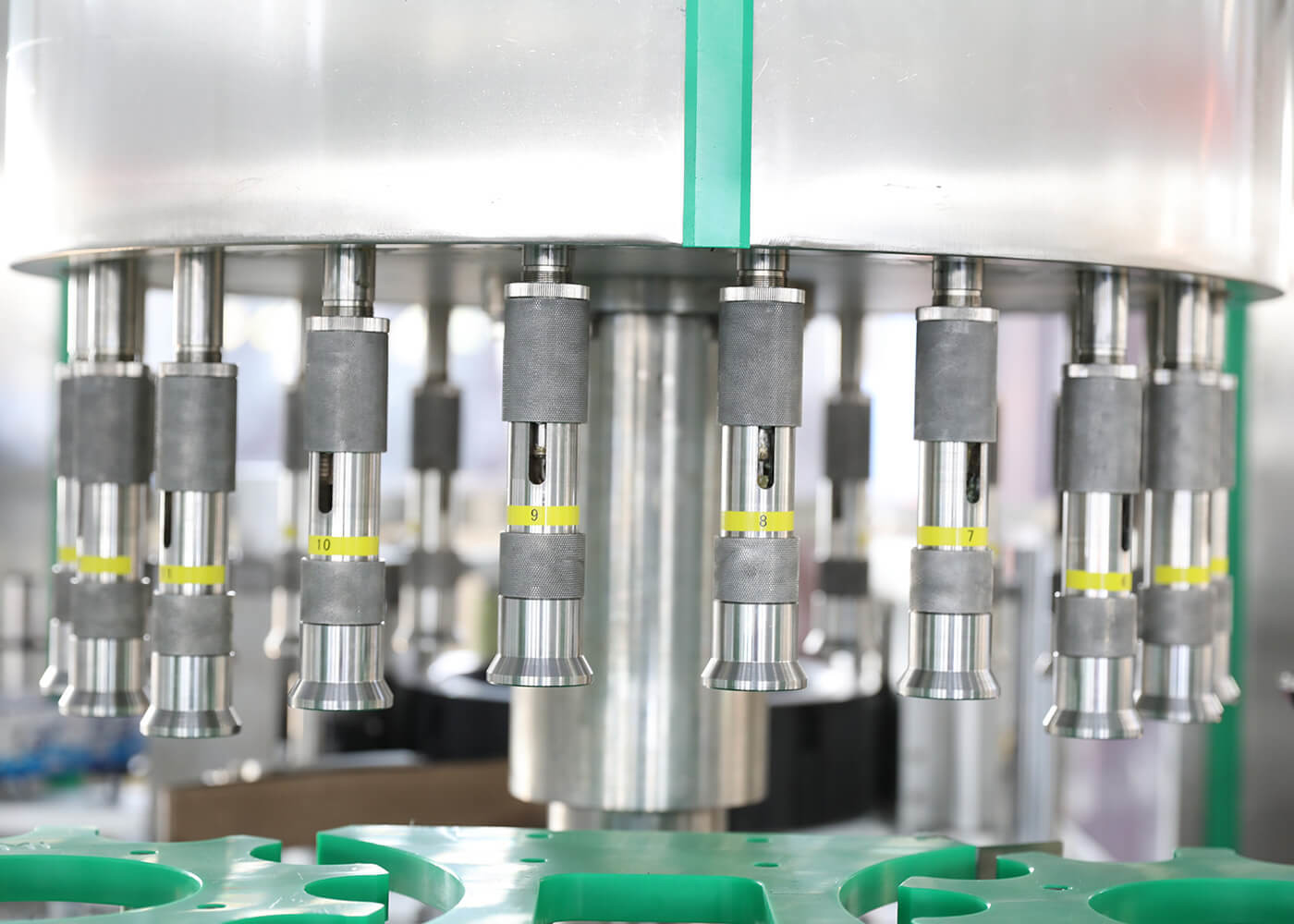

    The containers are picked up by the infeed starwheel and transferred to the container table. The container rotation begins when they are positioned between container plates and centering bells.

    The speed of the feed roller is adjusted to the required label length for continuous web tension. A standard threading unit ensures optimal film feed. In the cutting unit, the labels are precisely cut while a PLC commandand servo-motor provide an exact cut-off point.

    Two narrow strips of hotmelt glue the labels together, which are applied by a heated glue roller to the leading and trailing label edges. The label with the glue strip on its leading edge is transferred to the container. This glue strip ensures an exact label positioning and a positive bond. As the container is rotated during label transfer, labels are applied tightly. Gluing of the trailing edge ensures proper bonding.



    Process: Infeed bottle → pre-position →label cutting → gluing → labeling→label by press out → finish



    Technical parameters:



    Power supply Three-phase 380V 50 Hz 8000W
    The total length of equipment 3000mm(conveyor length 3000mm or can be regulate base on your product lines)
    Equipment width 2000mm
    Conveyor speed 35m/min (the speed of the transmission lines can be adjusted according to actual production)
    The method of speed adjustment uninterrupted - adjust rate
    The largest Speed of labels feed maximum speed of 100 meters labels / min
    The largest speed of labeling 10000 pcs/H
    Labeling accuracy ± 1mm
    Integrated Labeling accuracy ± 1mm
    Product Size: base on client supply container 2L Φ 100mm
    Maximum label width 160mm
    The maximum length of label 500mm
    The maximum diameter of label 500mm
    Paper core diameter 152 mm
    Labeling glue leading and trailing edge gluing with hot melt
    Gluing temperature 120~160C
    Type of label opp label, paper-plastic composite film label, paper label
    Labeling workstation 12 per cycle
    The quantity of labeling mold 1 set
    Machine weight 2000 Kg
