Heat Shrink Packaging Equipment With Heat Shrink Tunnel , Long Life Time

Heat Shrink Packaging Equipment With Heat Shrink Tunnel , Long Life Time

    • Heat Shrink Packaging Equipment With Heat Shrink Tunnel , Long Life Time
    • Heat Shrink Packaging Equipment With Heat Shrink Tunnel , Long Life Time
  • Heat Shrink Packaging Equipment With Heat Shrink Tunnel , Long Life Time

    Product Details:

    Place of Origin: Jiangsu, China
    Brand Name: Sunswell
    Certification: CE SGS
    Model Number: MB

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wooden case
    Delivery Time: 60 days after receiving down payment
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets/year
    Contact Now
    Detailed Product Description
    Name: Automated Shrink Wrap Machine Heat Shrink Packaging Equipment Automatic Grade: Automatic,Fully-Automatic
    Driven Type: Electric Condition: New
    Type: Wrapping Machine Packaging Type: Film
    Application: Beverage After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support
    Packaging Material: Wood Voltage: Customized
    Warranty: 1 Year Packing Material: PE
    Usage: Shrink Film Packing Function: PE Film Packaging Machine

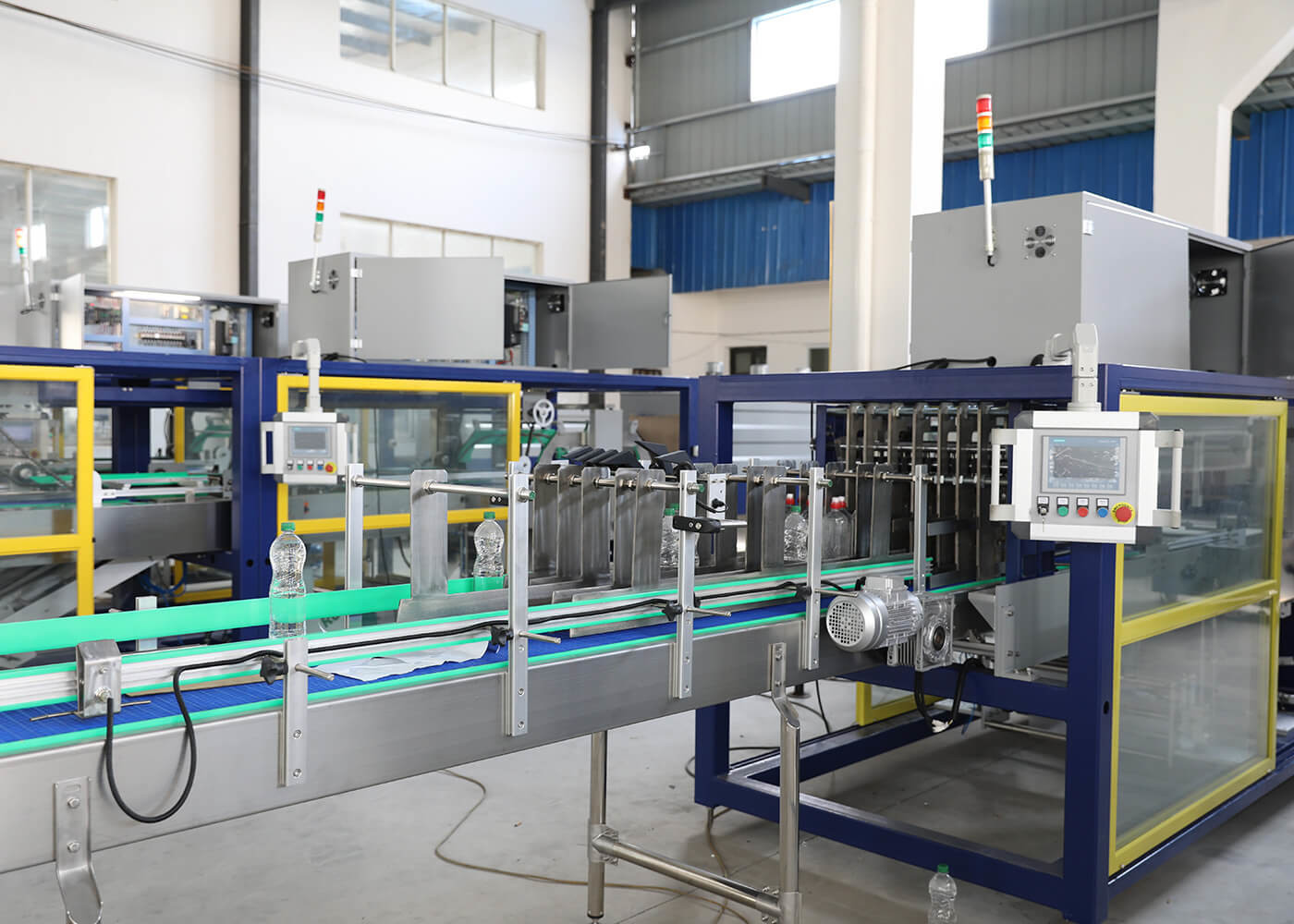

    Automatic PE Film Heat Shrink Wrapping Packing Machine with Shrink Tunnel for Packaging Bottles



    1.General description

    (1) Available Range:

    All kinds of liquid beverage bottles' group packing which does not need bottom tray. After packing, the products will become firmer and more good looking.



    (2)Specification:
    Full Automatic PET Sleeve Label Shrink Machine
    1. For shrink film wrapping
    2. Downstream packaging
    3. Output: 10-12



    Characteristics:

    1.This Shrink Wrapping Machine adopts imported world famous PLC automatic control. It has stable functions and precise control.

    2.It has automatic functions like conveying materials, unscrambling, shrinking and cooling&design finalizing flow.

    3.The film conveying adopts the famous brand transducer and three-layer heat insulation to save resourses.

    4.It uses the enhanced cooling and design finalizing passage which can make product packing finalize the design more quickly and easy to be stored and transported



    2.Details of each equipent

    ·Frequancy control,Secondary bottle transport device.

    ·The whole set which are push bottle,heat sealing cutting adopt pneumatic structure.

    ·Inductive switch control film length.

    ·Touch screen,PLC control system advanced reliability of the equipemtn function.

    ·Circular wind machine ,resuare well-proportioned temperature of the shrink furnace.

    ·Strong cooling system can reassure finalize the design quickly.

    ·Heat-fast Teflon transport net,transport steady,high strength and stand wear and tear.

    ·Frequancy conversion timing net transportation structure.

    ·The height of the conveyer belt can be made according to the user,adustable range±50mm

    ·Bottole transport machine can satisfy the direction of the user,it can prolong and shorten

    ·Pterygoid stainless iron heating system,durability.

    ·Satisfy the bear storage rack device of the short duration for the product,assure consecutive work for the production line.



    Canada maintain: 5.7 inch touch screen, PLC control system.(can choose other brand)

    ·One set Taiwan Airtac pneumatic element

    ·Three sets Taiwan Taida thansducer

    ·Twelve pieces stainless and iron pterygoid heating pipe

    ·Teflon transportation net which are produced by Sino-America cooperation.

    ·Electrical machine by Shanghai and Beauty coperation ,warm transmission by Zhejiang Taili.

    ·Korea Ottonix photoelectric switch,proximity switch.

    ·We can make Heat sealing sword cast aluminium heat appliance specially,well proportioned temperature and long lived.

    ·Surface of the whole machine are plastic spraying,frame work adopt excellent carbon steel,the mainstay adopt stainless steel.

    ·The length of bottle transport machine:2600mm

    ·Packed with wooden case and winded film seperately.



    3.Techinal parameter

    Power supply 380V/50-60Hz/3phase
    Max product size 420(L)*300(W)*320(H)mm
    Max Packing capacity 20 packs per minute
    Film type single roll of printed polyethylene(PE) film
    Max film size 630(width)*280mm(outer diameter)
    Power consumption 20.5kW
    Tunnel oven size 1800mm(L), entrance 600(W)*400(H)mm
    Tunnel conveyor speed variable,controlled by frequency converter,15m/min
    Tunnel conveyor chains with rotating silicon coated rods
    Working height 800-850mm
    Air pressure ≤0.5MPa(5 bar)
    P L C SIEMENS S7
    Sealing system permanently heated seal bar coated with Teflon
    Operating interface Eview displayer
    Machine material carbon steel
    Weight 1050kg
