Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE SGS |
| Model Number: | MB |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 60 days after receiving down payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets/year |
| Driven Type: | Electric | Product Name: | Plastic Film Heat Shrink Wrapping Machine |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support | Packaging Material: | Wood |
| Warranty: | 1 Year | Packing Material: | PE |
| Function: | PE Film Packaging Machine | Automatic Grade: | Fully-Automatic |
| Packaging Type: | Bottles,Cans | Usage: | Shrink Wrap Machine |
| Highlight: | case packing machine,film packing machine |
||

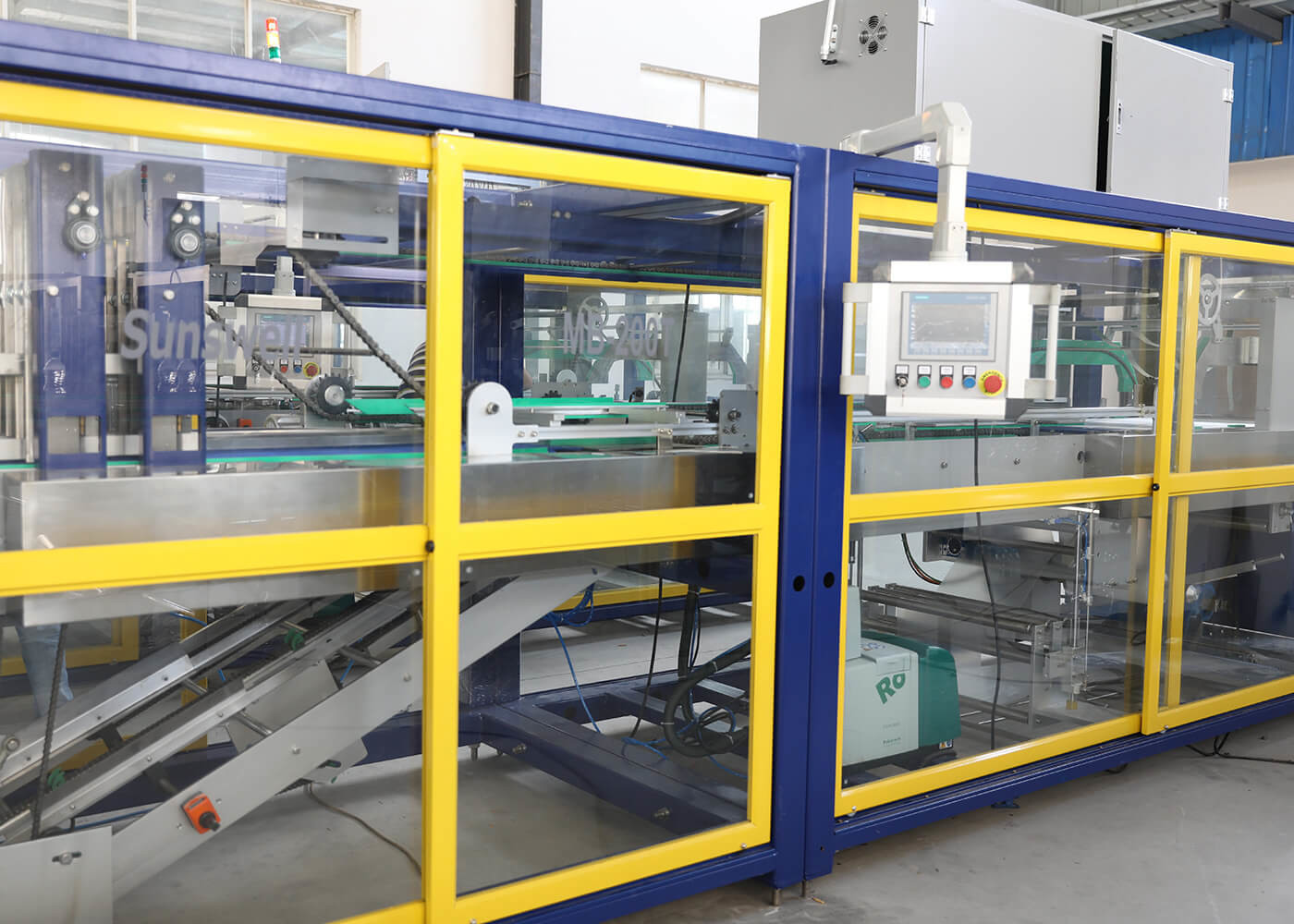

Automatic PE Film Stretch Heat Shrinkable Bottling Wrapping Tunnel Wrapper Packing Machine
SSW series machine has been widely used in food, beverage, chemical and office industries. All kinds of liquid beverage bottles' group packing which does not need bottom tray. After packing, the products will become firmer and more good looking.
Details of each equipment
·Frequancy control,Secondary bottle transport device.
·The whole set which are push bottle,heat sealing cutting adopt pneumatic structure.
·Inductive switch control film length.
·Touch screen,PLC control system advanced reliability of the equipemtn function.
·Circular wind machine ,resuare well-proportioned temperature of the shrink furnace.
·Strong cooling system can reassure finalize the design quickly.

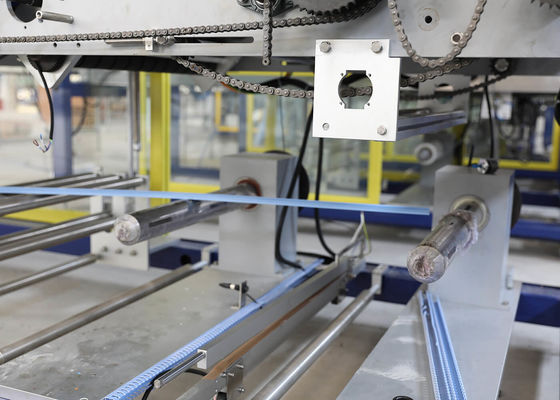

·Heat-fast Teflon transport net,transport steady,high strength and stand wear and tear.
·Frequancy conversion timing net transportation structure.
·The height of the conveyer belt can be made according to the user,adustable range±50mm
·Bottole transport machine can satisfy the direction of the user,it can prolong and shorten
·Pterygoid stainless iron heating system,durability.
·Satisfy the bear storage rack device of the short duration for the product,assure consecutive work for the production line.
Main performance features
l Compact & artistic shape. The frame is novel, unique.
l Electronic induction feeding film, action is balanced and quickly replacing film.
l Isothermal sealing cutter. The seal intensity is above cooling sealing cutter 3 times, the seal is even and the life is above cooling sealing cutter 80 times.
l Transport system with speed regulation by frequency variation, the transmission action is precise and synchro.
l The shrinkage chamber uses centrifugal thermal air circulation system, configuration is logical, heat insulation heat preservation, thermostat precision is high and the packing effect is better.
l Advanced control component in the world, Well-equipped.
Technical Specification
| Power supply | 380V/50-60Hz/3phase |
| Max product size | 420(L)*300(W)*320(H)mm |
| Max Packing capacity | 20 packs per minute |
| Film type | single roll of printed polyethylene(PE) film |
| Max film size | 630(width)*280mm(outer diameter) |
| Power consumption | 20.5kW |
| Tunnel oven size | 1800mm(L), entrance 600(W)*400(H)mm |
| Tunnel conveyor speed | variable,controlled by frequency converter,15m/min |
| Tunnel conveyor | chains with rotating silicon coated rods |
| Working height | 800-850mm |
| Air pressure | ≤0.5MPa(5 bar) |
| P L C | SIEMENS S7 |
| Sealing system | permanently heated seal bar coated with Teflon |
| Operating interface | Eview displayer |
| Machine material | carbon steel |
| Weight | 1050kg |
