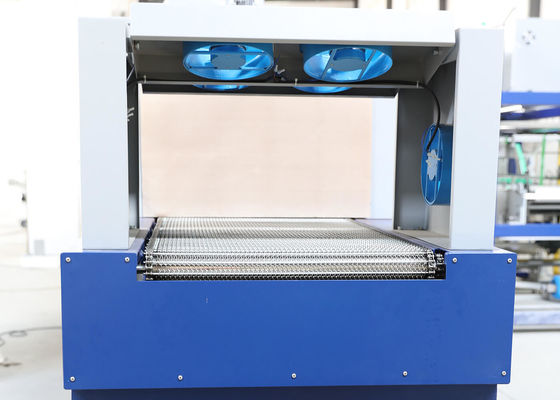

PE Film Plastic Bottle Shrink Wrap Equipment , Heat Shrink Tunnel Machine

Technical parameter

1) Power supply. Total power : 380/220V ,75KW (three-phase )

2) External gas source : 4-6kgf/cm2

3) main motor: 380V 3300W

4) Bottle separate electricity motor: 380V 820W*2

5) Exit belt motor : 380V 750W

6) Film cutting electricity motor :380V 820W

7) Film feeding electricity motor: 3.3W

8) Bottle entry plate chain electricity motor : 380V 1100W

9) Whole bottle motor :380V 250W

10) Machine size (L*W*H) :13500*1215*2150mm

(Can make according to special requirement).

11) ackage piece speed : 45package /minute

12) Package product size : can according to client special requirement.

13) Working platform height :L1150+50mm (can making according to special requirement).

14) Conveyor belt : shanghai

15) Usage film type : PE film and can use color film

16) PE film width PE: according to client requirement , film thickness: 0.07mm-0.13mm;

17) Film shrinkage ratio : length wise direction 70-80%, cross wise 20-30%.

18) Circumstance condition: humidity 98%, temperature:20-40ºC.

19) Noise: at working circumstance, noise 75DB.

20) Whole machine all set safe protection device

21) While package type not change, just need to change bottle height and bottle neck diameter, just need 20 minute; while not change bottle neck diameter and bottle height, just change package specification, not more than 10 minute.

22) Bottle entry belt drive by frequency motor, adopt to plastic chain net belt conveyor; in addition, match one set of frequency transducer controlling and facility connecting conveyor chain, ensure bottle smoothly enter into each channel tunnel; according to product package type, via vibrate parse device divide product; each channel bottle arrange and number control by conveyor belt top sensor; can control entrance bottle stream pressure according to entrance bottles streams; bottle entrance place set inspection device of bottle full and lacking situation, can let bottle efficiency separation.

23) Bottle separate and group: two group shifting fork that drive by servo motor, group bottle as package required number, adopt to linear bottle separate, control by servo motor, accuracy locate, easy to debug, very reliable.

24) Bottle hander film wrapping: via bottle handing pole control each group bottle movement distance, let it synchronization with film lifting pole, and let bottle push to film wrapping section belt; film lifting pole and film lifting device match torsion limit stopper, while bottle drop or bottle block, limit stopper movement let machine auto stop, after failure solve, then turn limit stopper hand wheel reset.


25) Mechanism rotation: the machine rotation drove by servo motor, adopt to synchronous belt and chain rotation assembly method, ensure rotation harmony, the place that adopt to chain ration all add protection covet and lubricate device, ensure worker safe and circumstance clean.
