High Speed Food Beverage Carton Caser Automatic Box Packing Machine For Bottles

High Speed Food Beverage Carton Caser Automatic Box Packing Machine For Bottles

High Speed Food Beverage Carton Caser Automatic Box Packing Machine For Bottles

Product Details:

Place of Origin: China
Brand Name: Sunswell
Certification: CE, ISO, SGS, UL
Model Number: GB-20

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Seaworthy Wooden Case
Delivery Time: 60 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Contact Now
Detailed Product Description
Name: Wrap Around Carton Packer Packaging Type: Cartons,Case
Packaging Material: Wood Application: Food,Beverage
Driven Type: Electric Condition: New

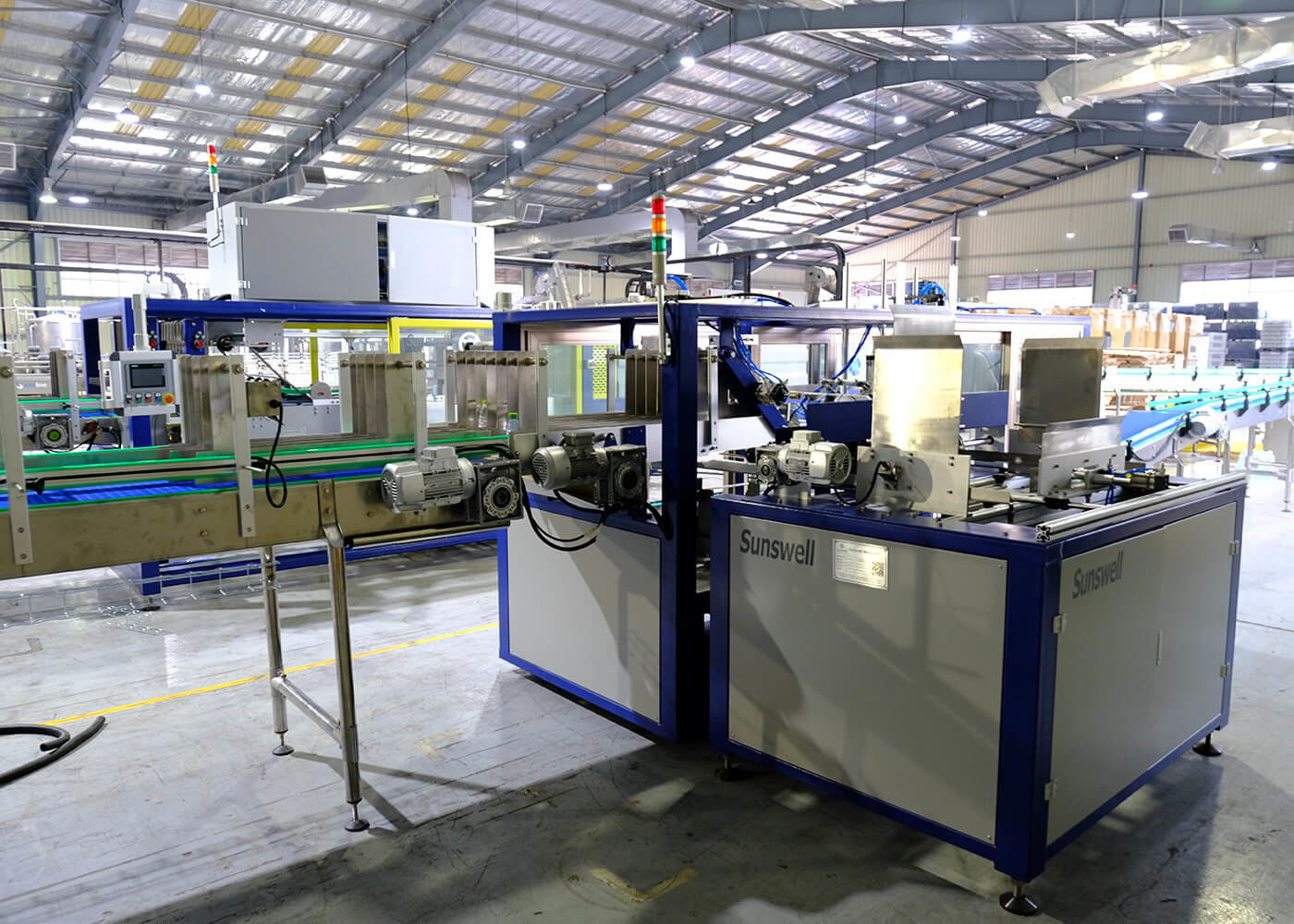

High Speed Automatic Food Beverage Carton Caser Box Packing Machine for Bottles



Procedure Flow:

Bottle are separated to multi channel at conveyor, and then group by bottle separate fracture evenly. Bottle are grouped , then drop to cardboard via bottle drop fracture. At drop fracture with bottle and cardboard fall procedure, via one group of form block board, then card board fold to carton form. Via main drive with carton move forward, at the same time, via glue spray fracture to finish carton top glue spray, again the cam fracture via top ledge fold, at the same top carton fold to finish top sticking. Carton move forwarder, again via glue spray fracture to finish carton side glue spray, and via side pressure and carton press fracture to finish carton finally form and sticking, and via main drive let carton move forwarder to conveyor.



Machine Configuration:

Bottle transportation fracture
The part adopt to our country good brand motor and reduction gear motor separate move, via Japan Mitsubishi frequency convertor realize speed adjust. Bottle entry conveyor adopt to high module, low abrasion, make out via lubrication engineering plastic. For each details super design, to ensure character steadily. To ensure production continue, steadily movement. Bottle Before package, system will check package zone if have bottle lack, bottle inverse phenomena, bottle dropping fracture auto stop bottle drop and system will display.

bottle drop fracture
While photoelectric detect bottle and cardboard also be transported to bottle bottom, at this time, cylinder will push bottle dropping fracture, machine force section load cylinder reduce pressure, let bottle quickly drop to cardboard from bottle drop interval.
cardboard transportation fracture
Cardboard fracture is for saving cardboard and let cardboard transport to the bottle drop bottom position fracture. And on it load cardboard saving quantity inspection fracture, when saving quantity above on an quantity, system will indict manipulation worker to add cardboard. Via promote and demote cylinder enhance board absorb (FESTO vacuum start component produce vacuum), save cardboard one by one absorb cardboard, right conveyor cardboard cylinder conveyor to cardboard leading groove. Via reduce motor drive transmission wheel let cardboard leading groove cardboard, via top and bottom V type conveyor belt to bottle dropping fracture bottom.
carton dropping fracture
Via servo motor via wheel gear in phase device , let left and right two group in phase uplift to cardboard bottom and let card board absorb, and when bottle separation device let bottle top cardboard, again via servo motor drive in phase device dropping, at the same time left and right two group absorb plate absorb card board, bottle finally drop to main drive conveyor chain force and back clip carton chain middle.


Main Parameters:
Product capacity:15carton per minute
15KW
Rating power: 15KW
380V,50Hz;
Used power supply: three phase,380V,50Hz
Controlling power supply: 24V DV
Compressor air:1500L per minute, 0.6-0.8Mpa
Hot melting glue solidify time: 1.5-2S
Machine weight: 4000kg
Overall size: L6285*W2582*H2115MM
Bottle entry conveyor size: L3000*W620*1200MM
Package product overall size: Length 350-450,Width 230-300mm, Hieght:85-320mm;
Package bottle diameter: D55-108MM
Cardboard requirement: accord with international GB/T6544-2008


Facility name Carton package machine Power supply 380V,three-phase
Production capacity 15 pack/ minute Power supply 220V AC
Product package
qualified ratio
>99.8% Controlling voltage 24V DC
Hot melt adhesive curing time ≤1.5-2S Main machine power 15KW
Facility weight 4T Gas consumption quantity 1500 L/min
Machine overall size 6285*2582*2115 Compressor
air requirement
0.6~0.8MPa
Bottle enter size 3000*620*1200 Package product
overall size
Length :350-450mm
Width:200-330mm
Heigh:85-320mm
noise 85dB Circumstance temperature requirement 0-45ºC
Circumstance
humidity requirement
Usually below 75%RH Workshop requirement condition Firm foundation
Facility
collocate requirement
Dry, anti-dust, good ventilation good condition

Cardboard
specific requirement
Material: corrugate, used carton is three-layer, surface is white 250gram/sm,middle is high strength 150gram/sm. Bottom is cow cardboard 280g/sm;
carton each layer not allow have layering phenomenon , leatheroid thickness ≥3mm
carton indentation thread thickness is moderate, width is not bigger than 2mm
